| Item | Specification |
|---|---|

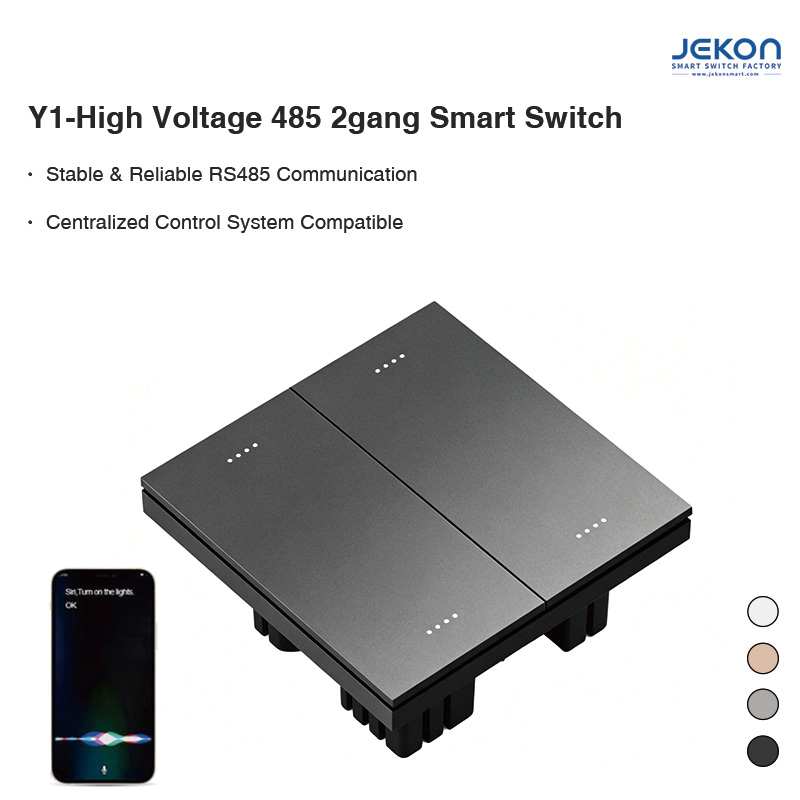

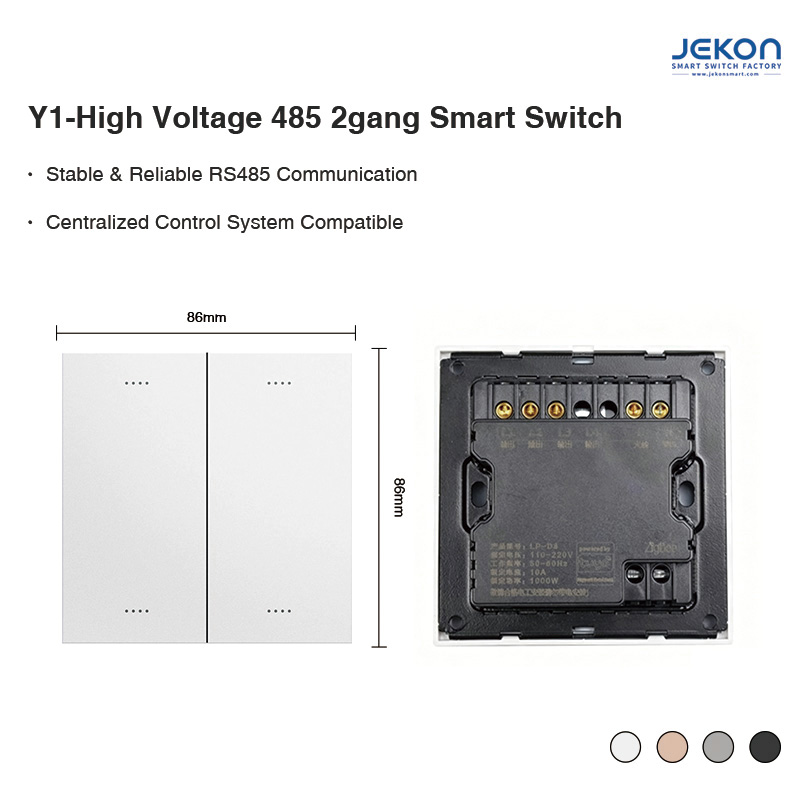

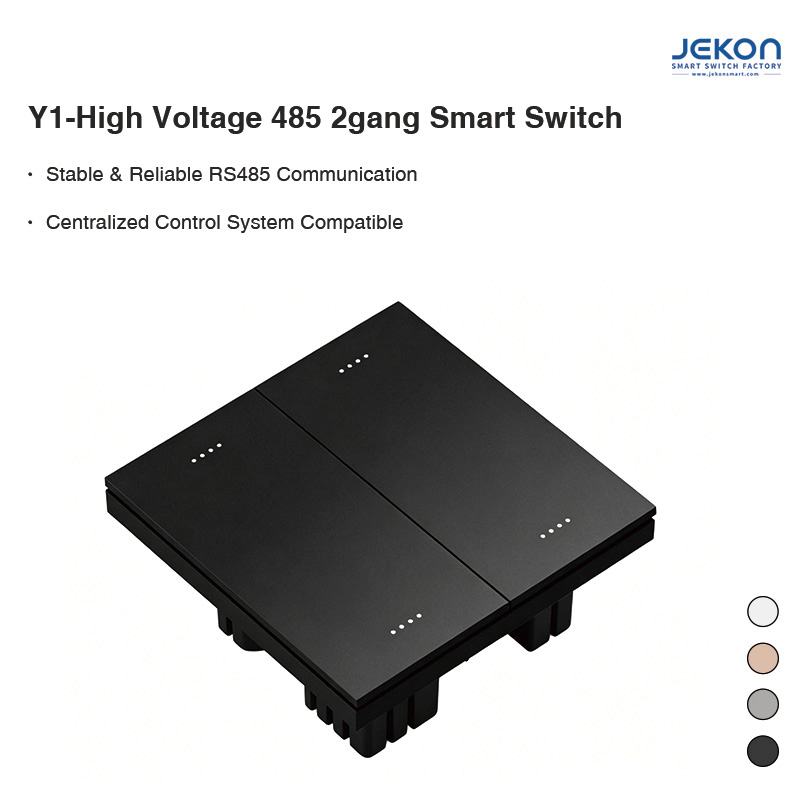

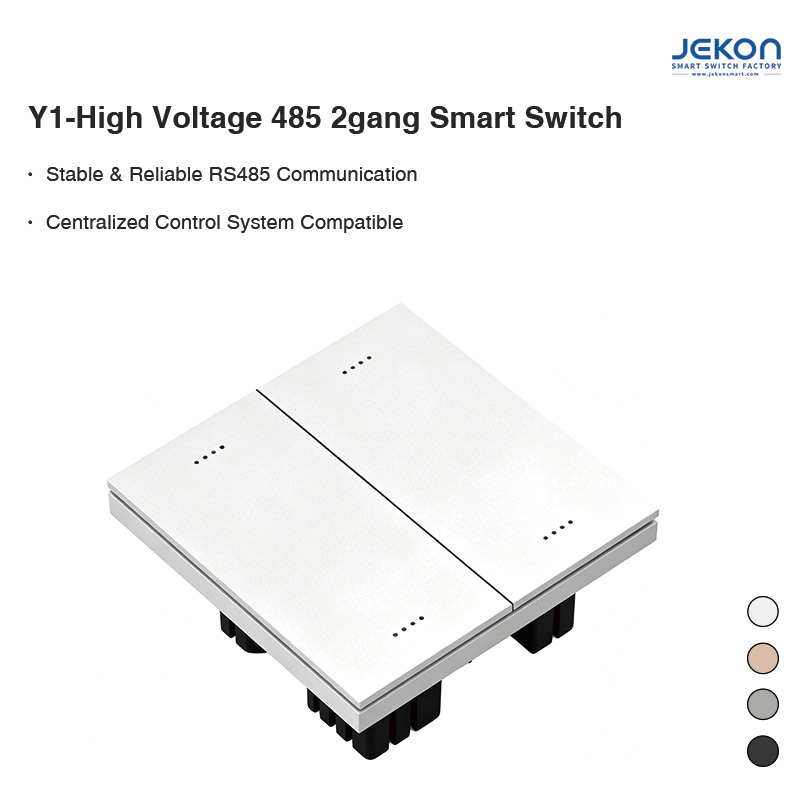

| Product Name | Y1 High-Voltage RS485 Modbus Smart Wall Switch (2 Gang) |
| Model | Y1-RS485-HV-2G |
| Communication | Industrial RS485 Modbus Bus Protocol |
| Channel | 2 Gang independent lighting control |
| Working Voltage | AC 110V~250V 50/60Hz High Voltage |
| Rated Current | Max 10A per gang |

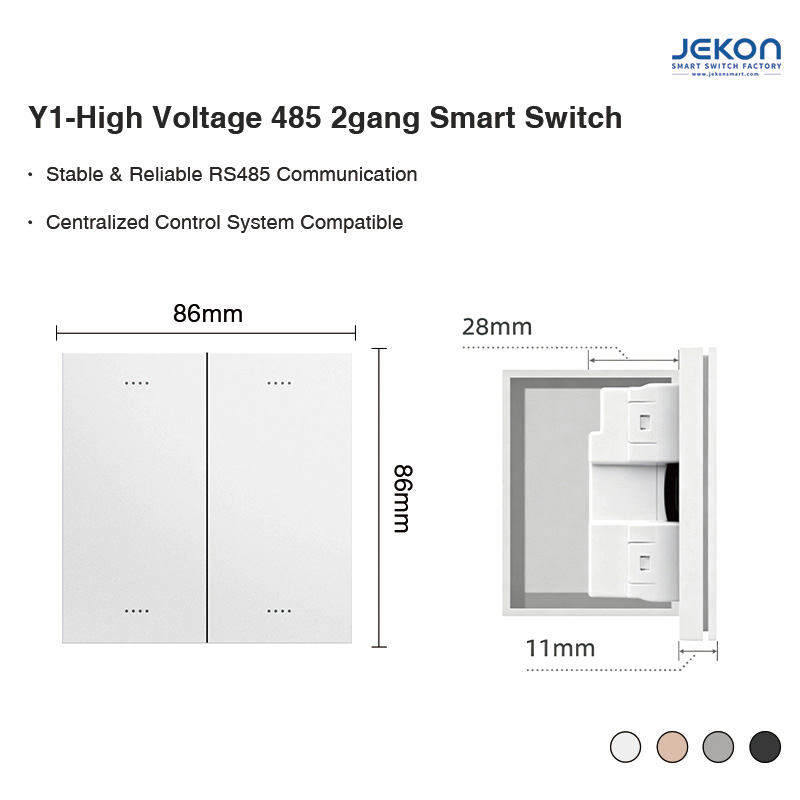

| Overall Size | 86mm × 86mm standard 86 wall box |
| Panel Thickness | Front panel 11mm, total mounting depth 28mm |

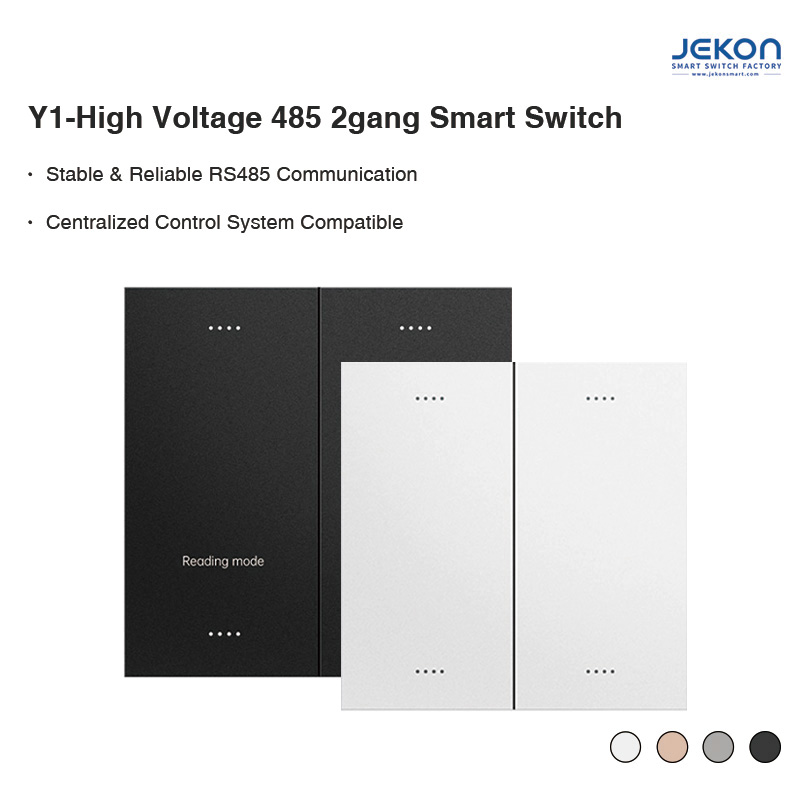

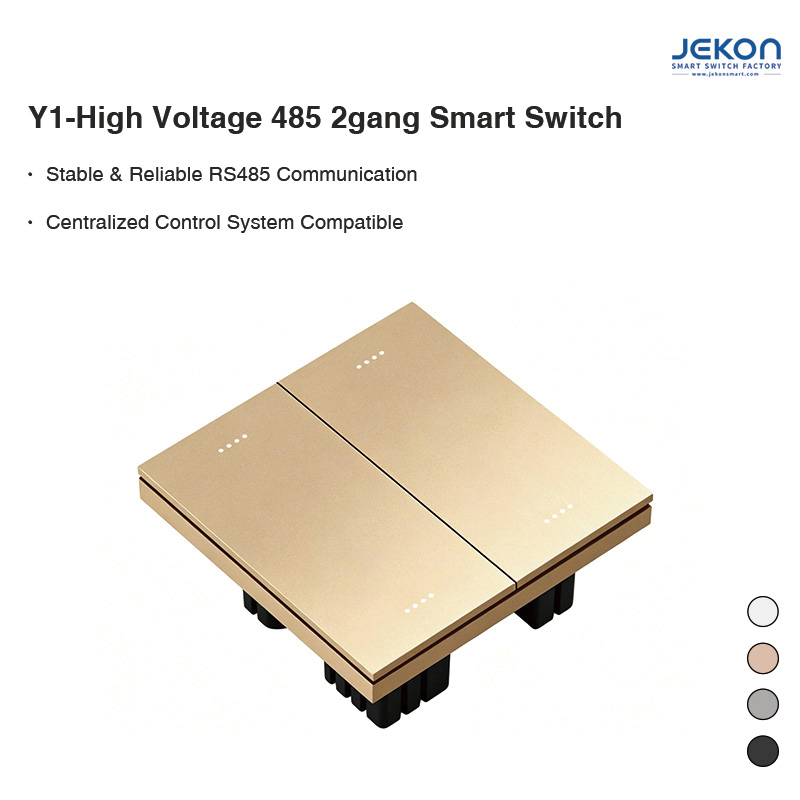

| Available Colors | Pearl White, Champagne Gold, Space Grey, Matte Black |
| Panel Material | Premium matte anti-fingerprint tempered glass + fireproof PC base |

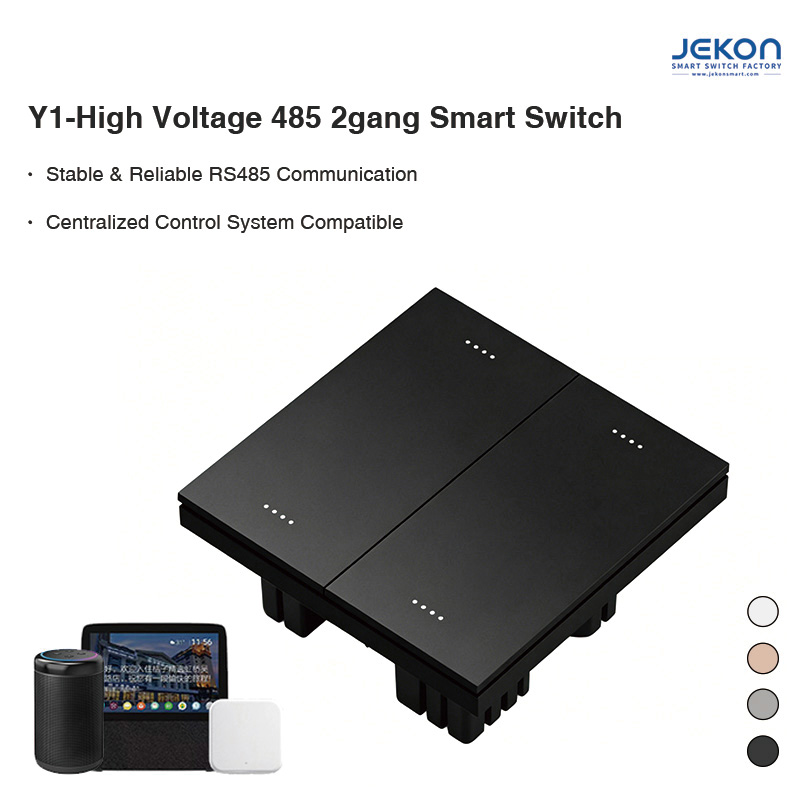

| Control Mode | Manual touch button, RS485 centralized host control, Tuya App remote, Alexa & Google Assistant voice control, smart scene linkage |
| Core Feature | Stable anti-interference RS485 bus signal, perfect matching hotel centralized intelligent control system |
| Installation | Fits standard 86-type wall junction box |
| Application | Hotel guest room engineering, villa centralized lighting, commercial office building intelligent control |
| Certification | CE, RoHS |
| MOQ | Negotiable, support sample & bulk hotel project order |
