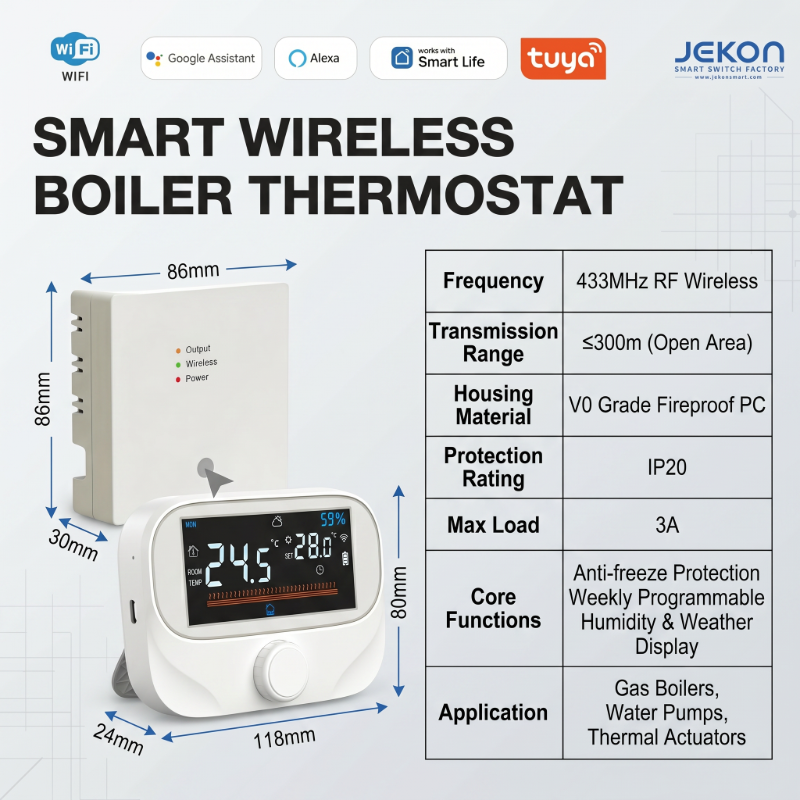

| Item | Detailed Specification |
|---|---|

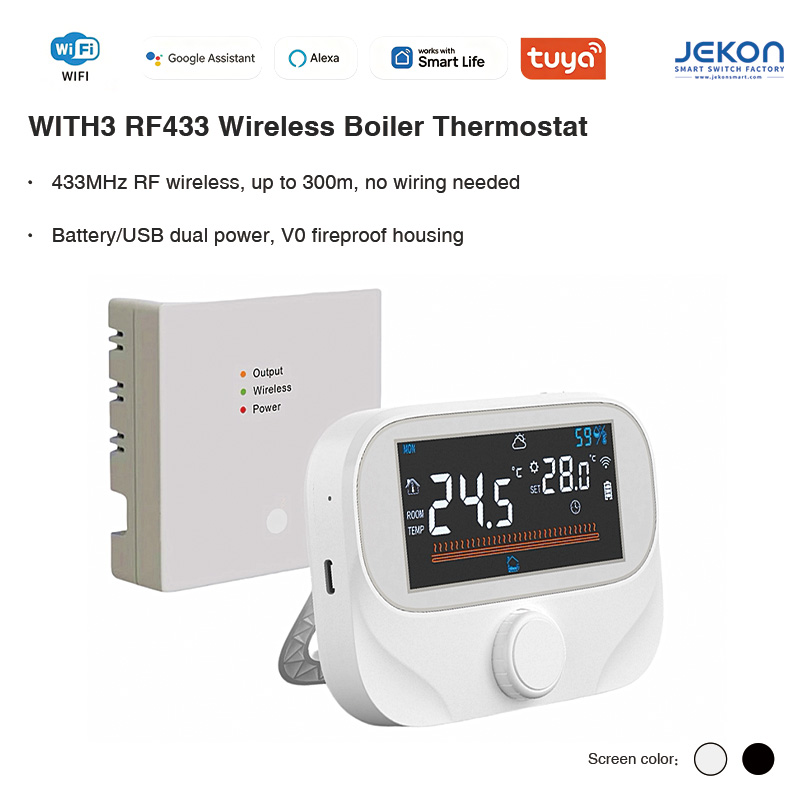

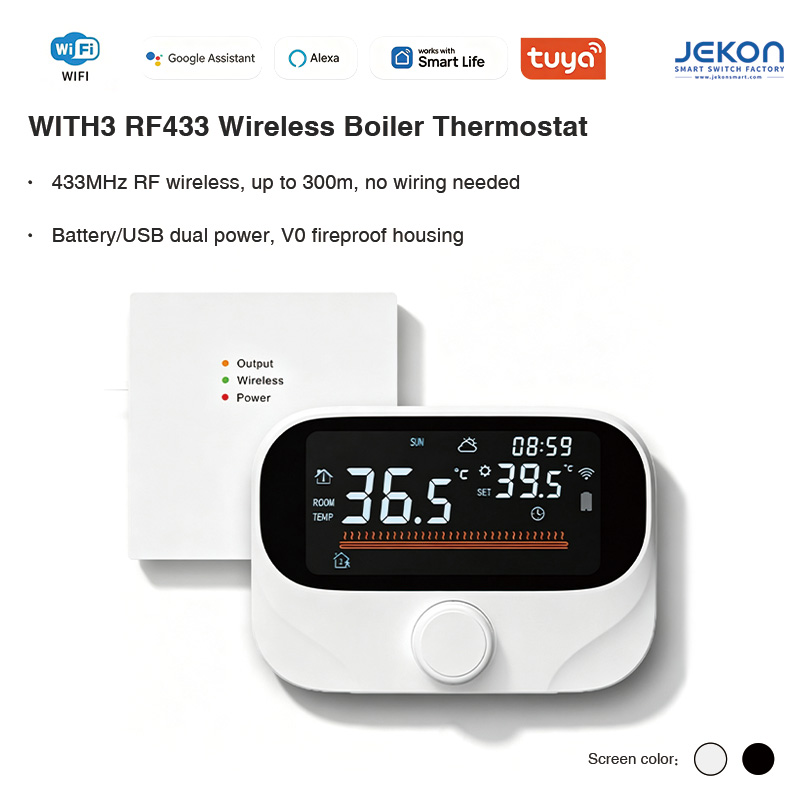

| Model | WITH3 RF433 Wireless Boiler Thermostat |
| Application | Gas boilers, water pumps, thermal actuators heating system |

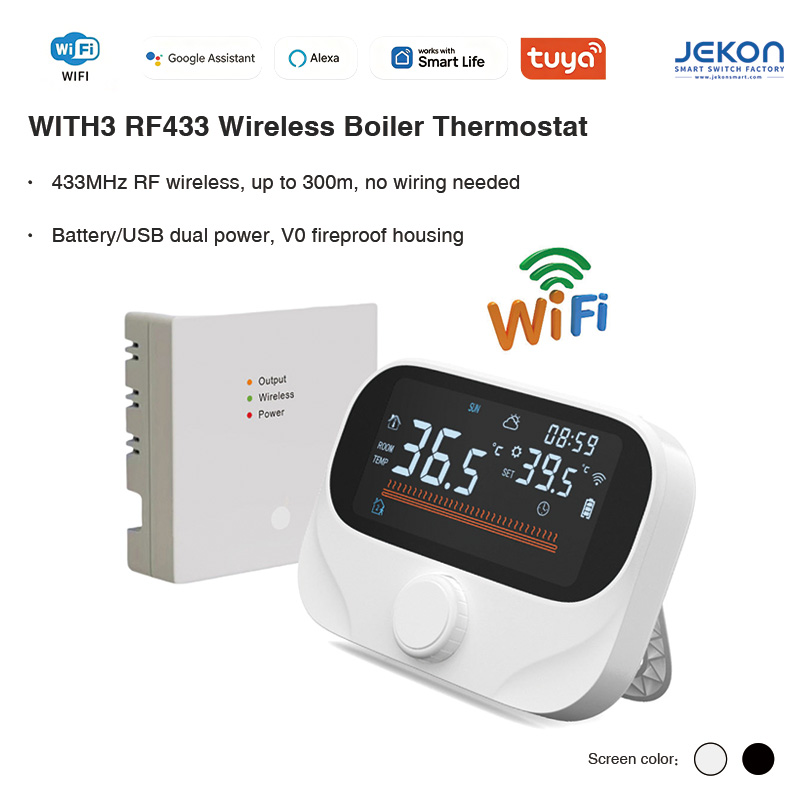

| Wireless Communication | 433MHz RF wireless, max 300m transmission distance (open area) + 2.4GHz WiFi |
| Input Voltage (Receiver Module) | AC 90V-240V 50/60Hz wide voltage |
| Thermostat Power Supply | Battery / USB dual power supply, ultra-low power consumption |
| Max Load of Receiver | 3A |
| Housing Material | V0 grade fireproof PC material, IP20 protection rating |
| Operation Method | Precise rotary knob temperature adjustment |

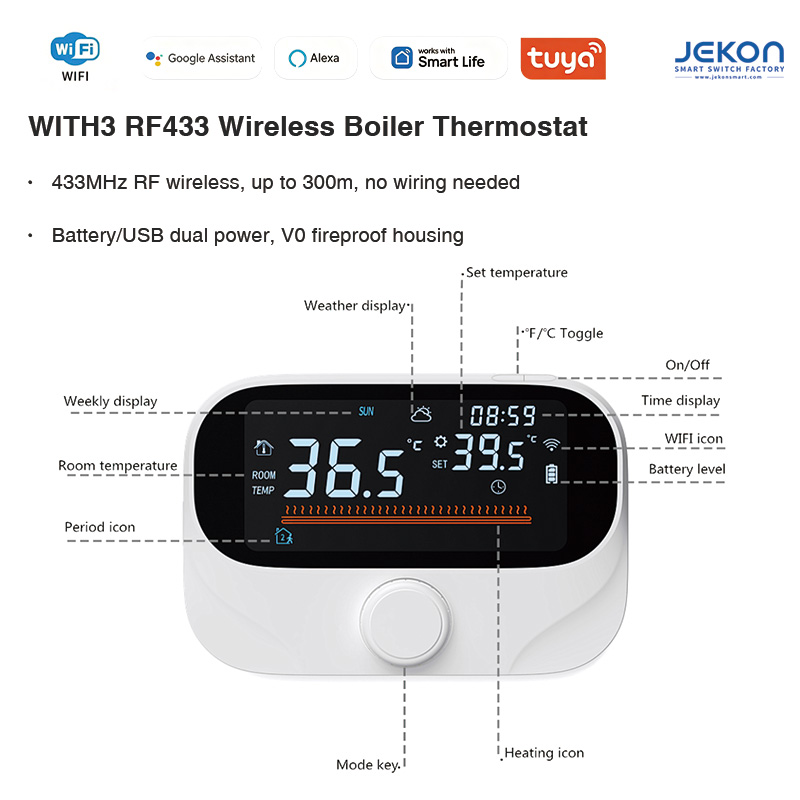

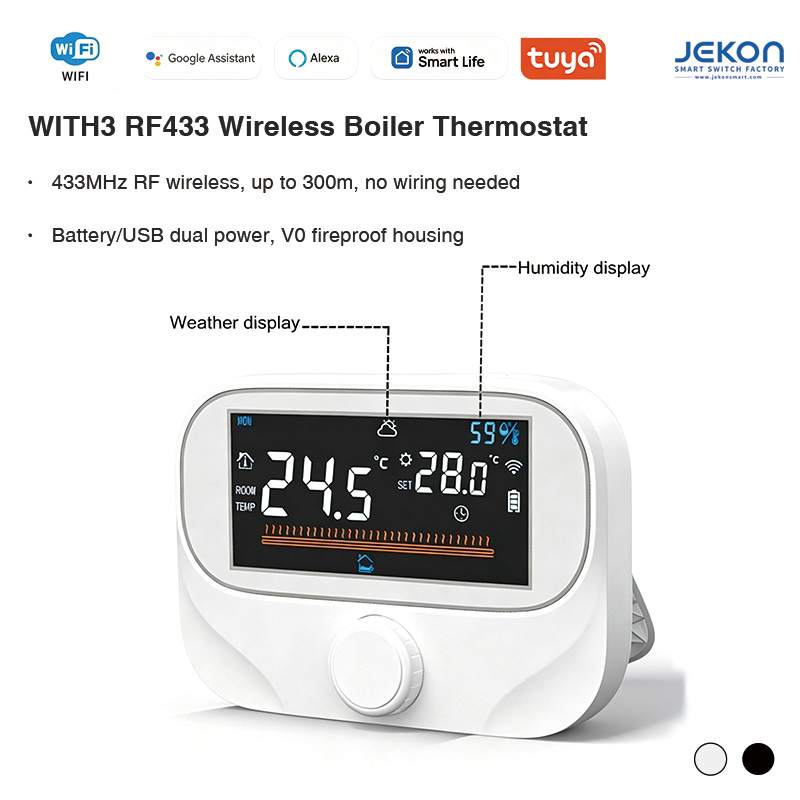

| Display | Large HD color LCD screen, auto screen off function, real-time weather & humidity display |

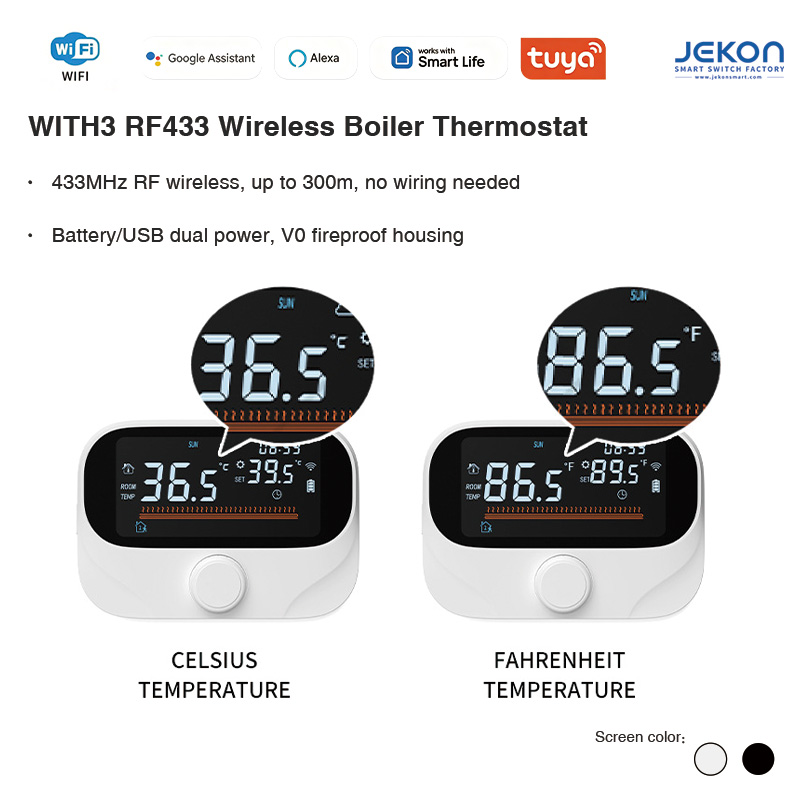

| Temperature Unit | Support ℃ / ℉ one-key switch |
| Working Modes | Manual Mode / Auto Timing Mode / Constant Temperature Mode / Holiday Mode |
| Timing Function | 7-day weekly programmable multi-period scheduling |
| Core Safety Functions | Power-off memory, anti-freeze protection |
| Supported Voice Assistants | Amazon Alexa, Google Assistant, Yandex Alice, Tmall Genie, JD Dingdong, Tencent Xiaowei, Baidu Duer, Tencent Dingdang, Xiaozhi Smart Home |
| Installation Feature | Wireless connection, no wiring required, easy DIY installation |

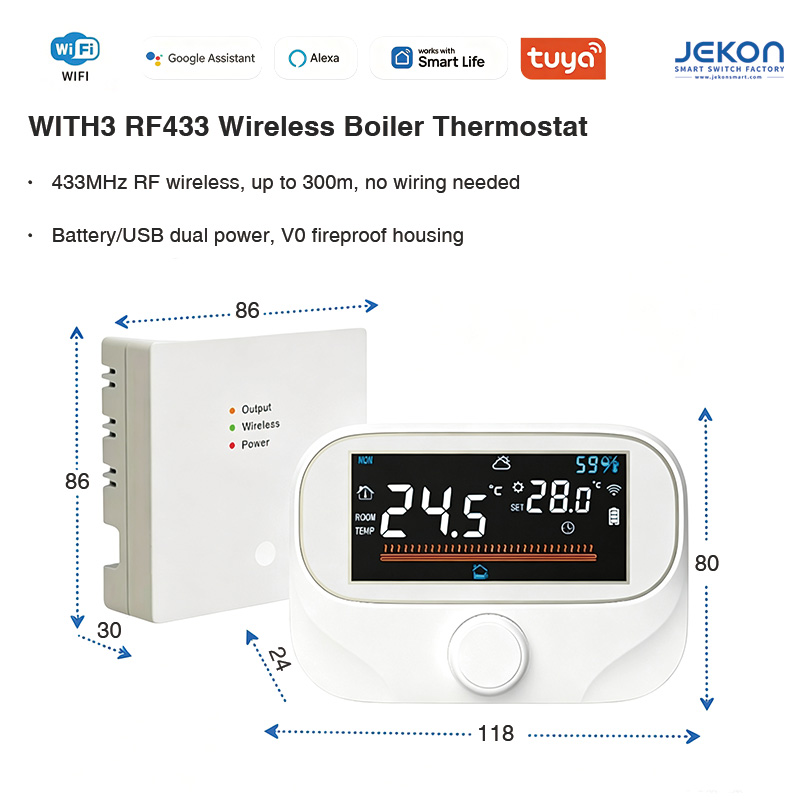

| Dimension | Thermostat: 118×80×24mm; Receiver box: 86×86×30mm |
| Optional Screen Color | White frame, Black frame |
| Certifications | CE certified, OEM custom logo & packaging acceptable |
