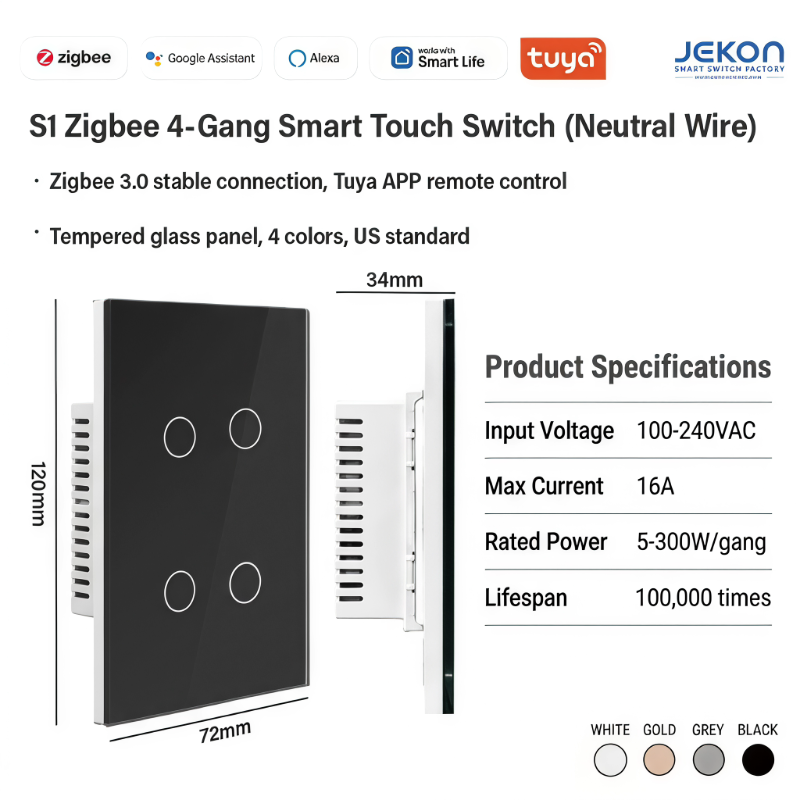

| Parameter Item | Detailed Specification |
|---|---|
| Model | S1 Zigbee 4-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless Protocol | Zigbee 3.0 Mesh Self-repeating Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Universal Voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED & incandescent lamps |

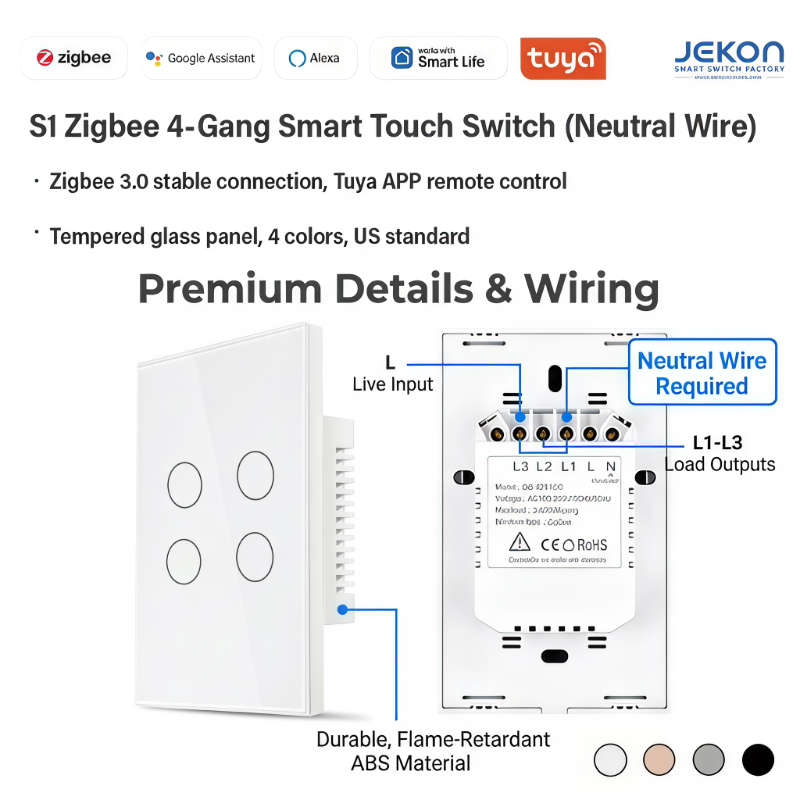

| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Standby Power Consumption | Less than 1W low standby power |
| Mechanical Service Life | Up to 100,000 touch switching cycles |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Touch Type | Capacitive sensitive touch with soft blue ring backlight indicator |
| Panel Material | Flat scratch-resistant tempered glass panel, easy to wipe clean |
| Back Shell Material | V0 flame retardant ABS plastic |

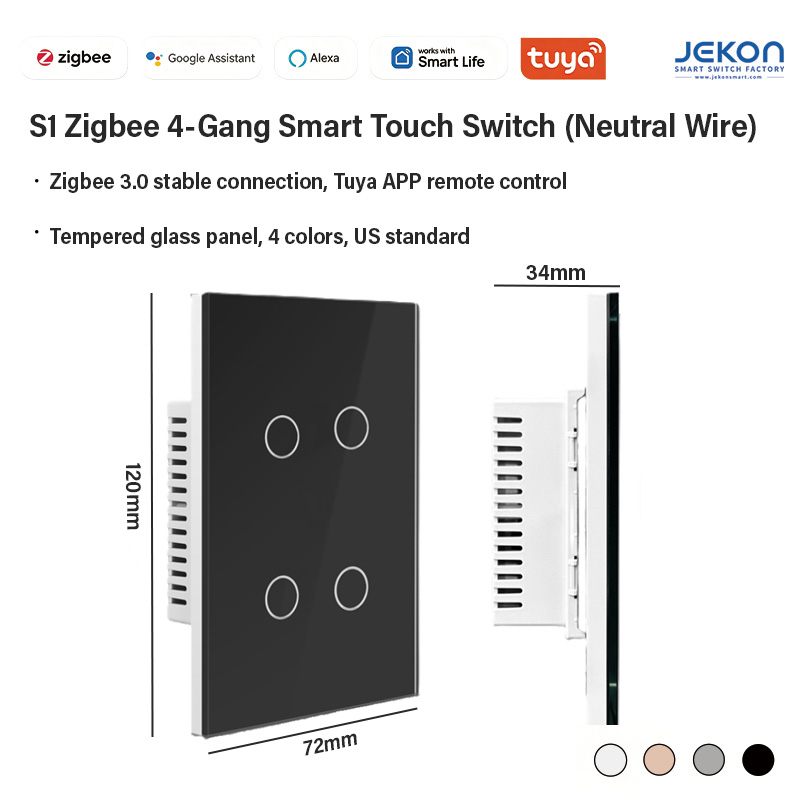

| Product Dimension | US standard size: 120mm(H) × 72mm(W), depth 34mm |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant |
| Control Modes | Capacitive touch control, mobile APP remote control, voice control, timing schedule, scene linkage, group control |

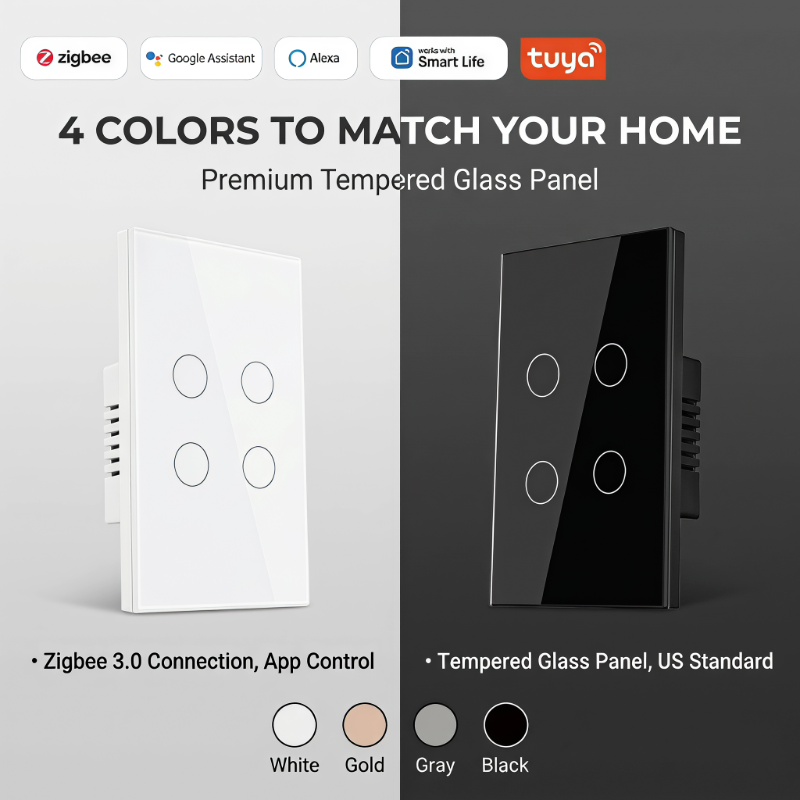

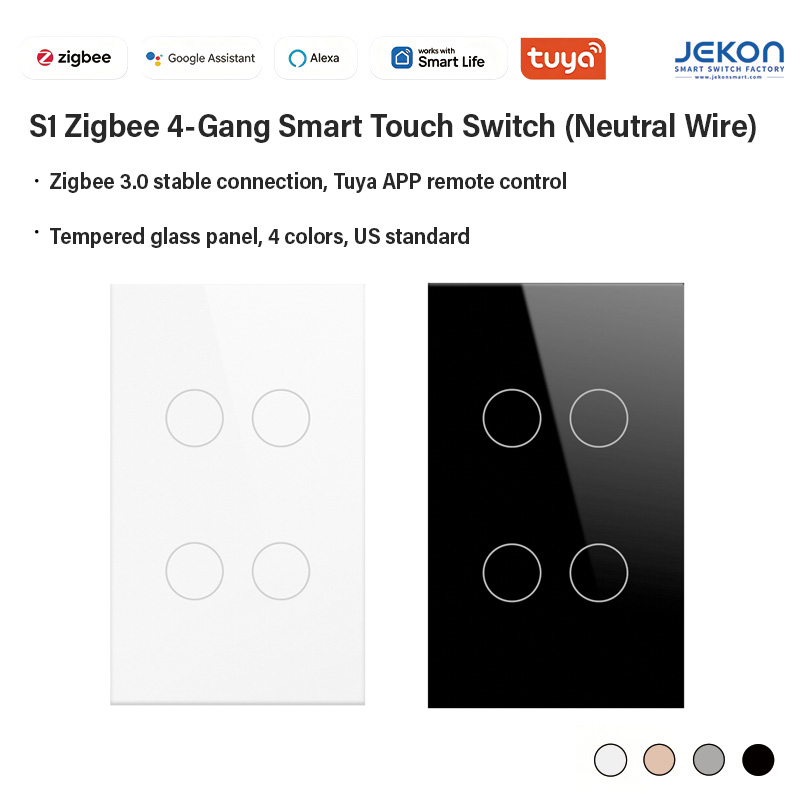

| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Smart Functions | Timing task, device sharing, power-off status memory, mesh signal relay for whole-house interconnection |
| Installation | Embedded wall mount, perfectly fit US standard wall junction box |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging available |
