Let’s Connect – Your Trusted Manufacturing Partner
Partner with JEKON ’s fully automated factories and expert team to bring high-quality switches, lighting, and smart solutions to markets worldwide. From OEM support to consistent supply, we’re ready to power your success.

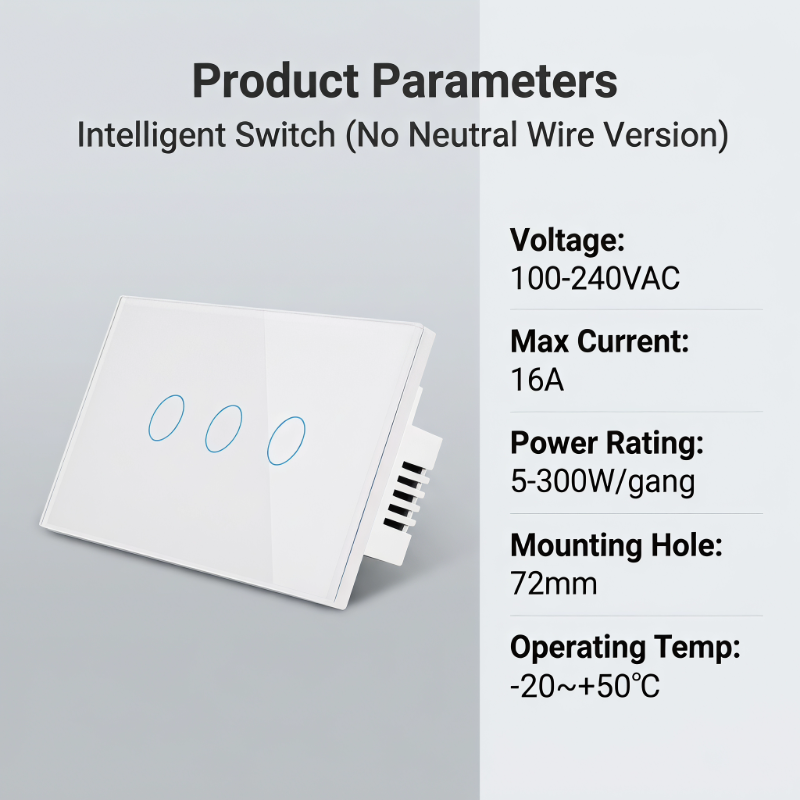

| Parameter Item | Detailed Specification |
|---|---|

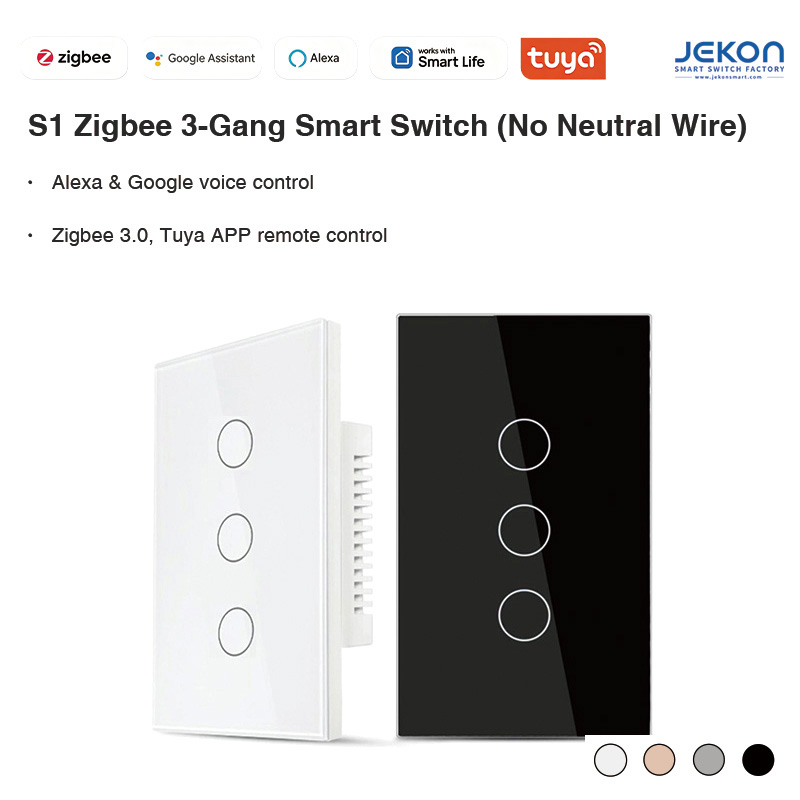

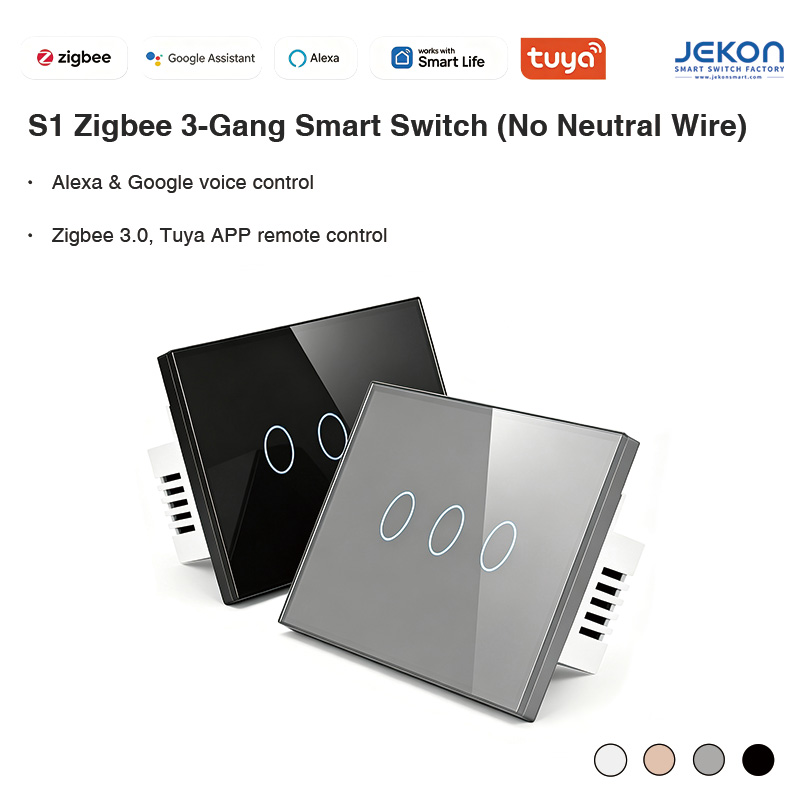

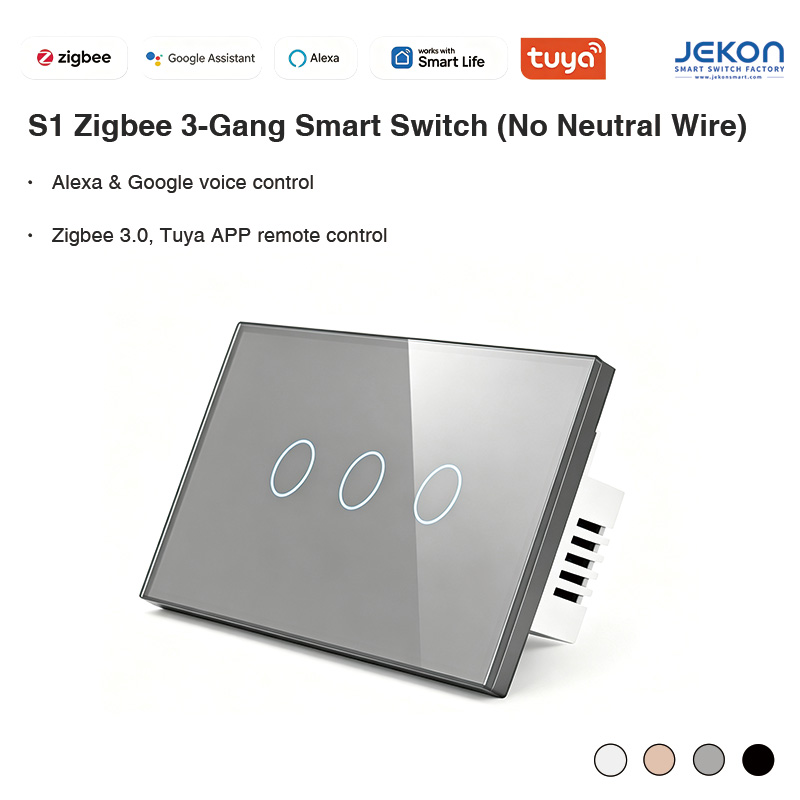

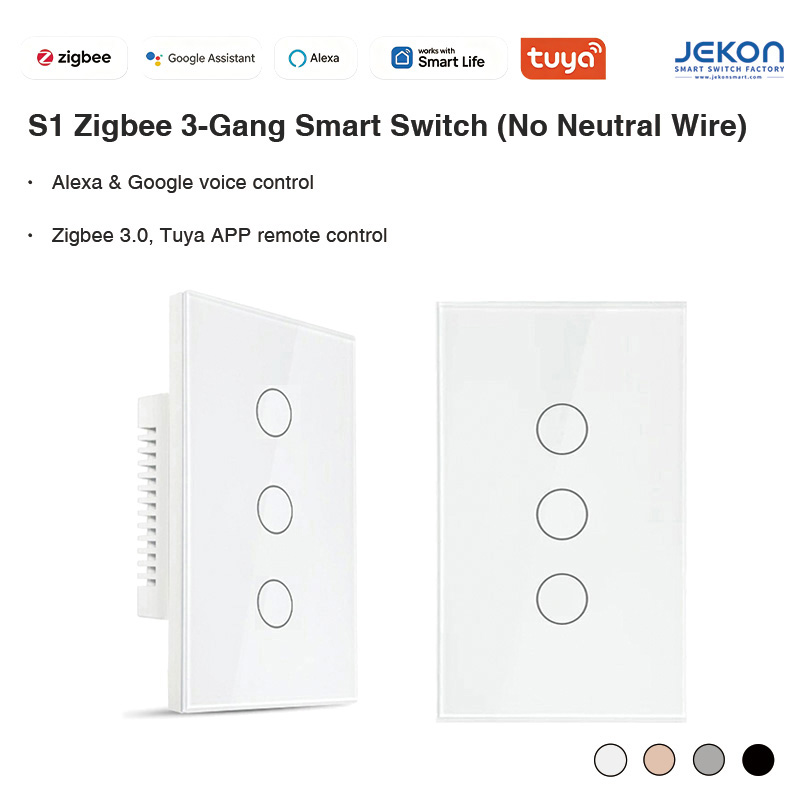

| Model | S1 Zigbee 3-Gang Smart Touch Switch (No Neutral Wire / Single Live Wire Version) |
| Wireless Protocol | Zigbee 3.0 Mesh Self-repeating Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Universal Voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED & incandescent lamps |
| Wiring Feature | Only Live Wire Required, No Neutral Wire Needed, ideal for old house renovation without rewiring |
| Standby Power Consumption | Less than 1W low standby power |
| Mechanical Service Life | Up to 100,000 touch switching cycles |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Touch Control Type | Capacitive sensitive touch with soft blue LED night indicator backlight |

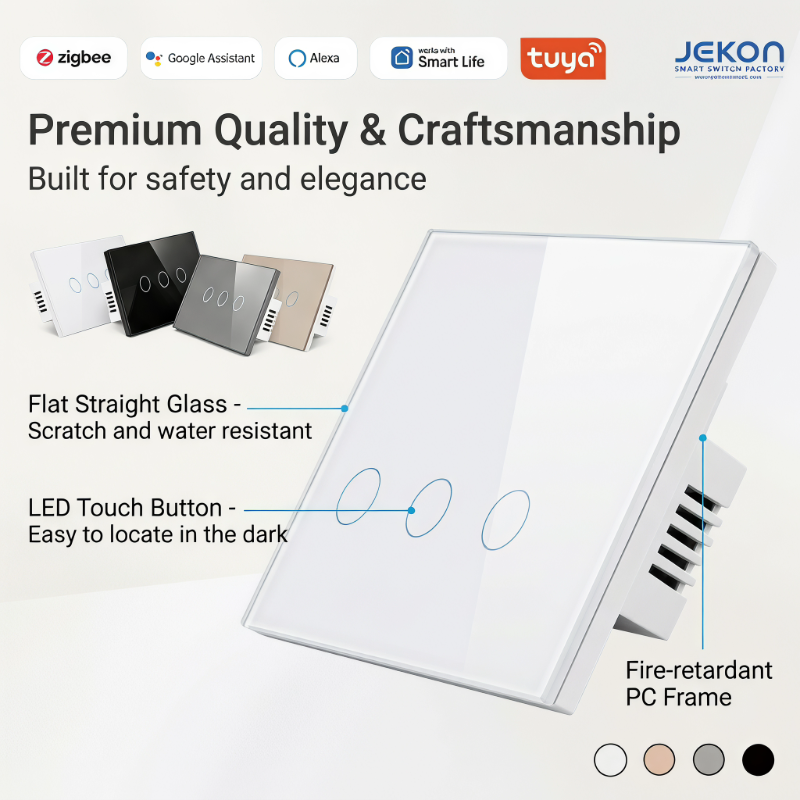

| Panel Material | Flat scratch & water resistant tempered glass panel, easy to clean |
| Middle Frame Shell | V0 flame retardant PC plastic for high safety |
| Installation Standard | US standard wall switch, 72mm mounting hole spacing, size 120×72mm |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant |

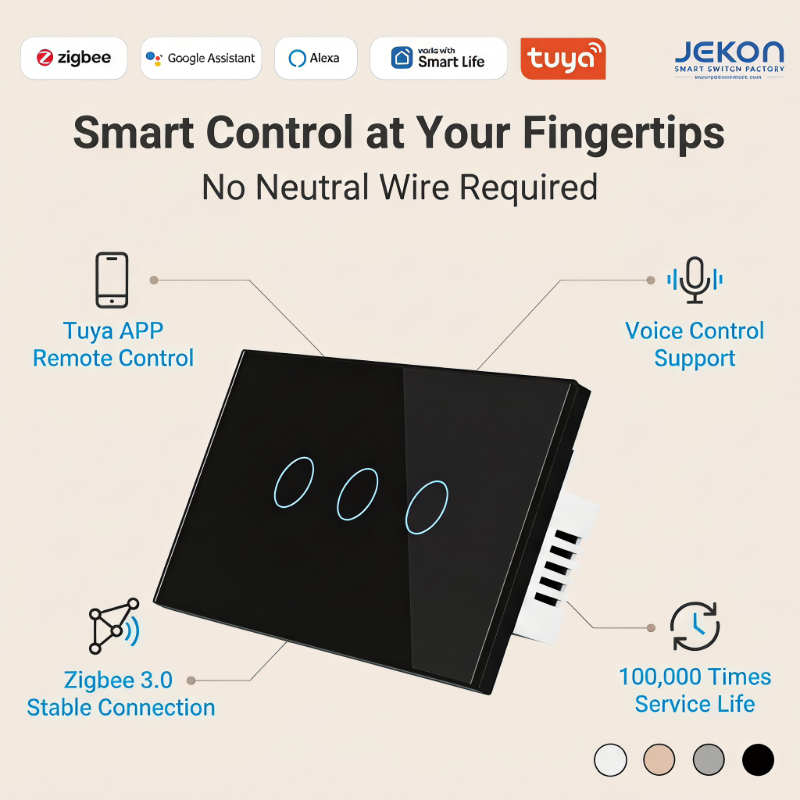

| Control Modes | Touch control, mobile APP remote control, voice control, timing schedule, scene linkage, group control |

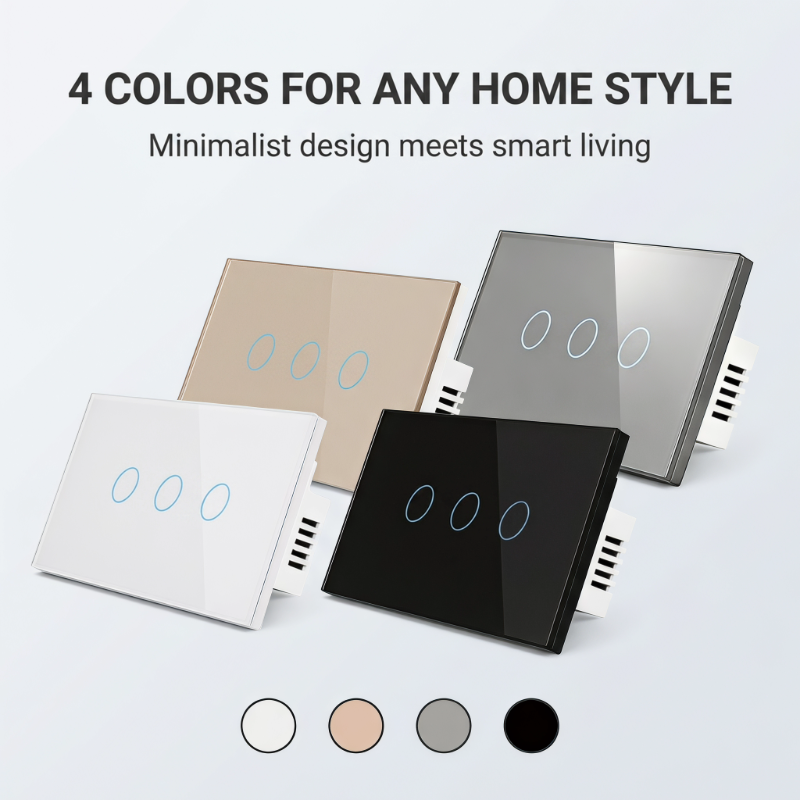

| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Smart Advantages | Zigbee mesh signal relay for stable whole-house interconnection, low cost for renovation projects |
| Smart Functions | Timing task, device sharing, power-off status memory, scene automation |
| Installation | Embedded wall mount, fit US standard junction box, no extra wiring transformation |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging available |
