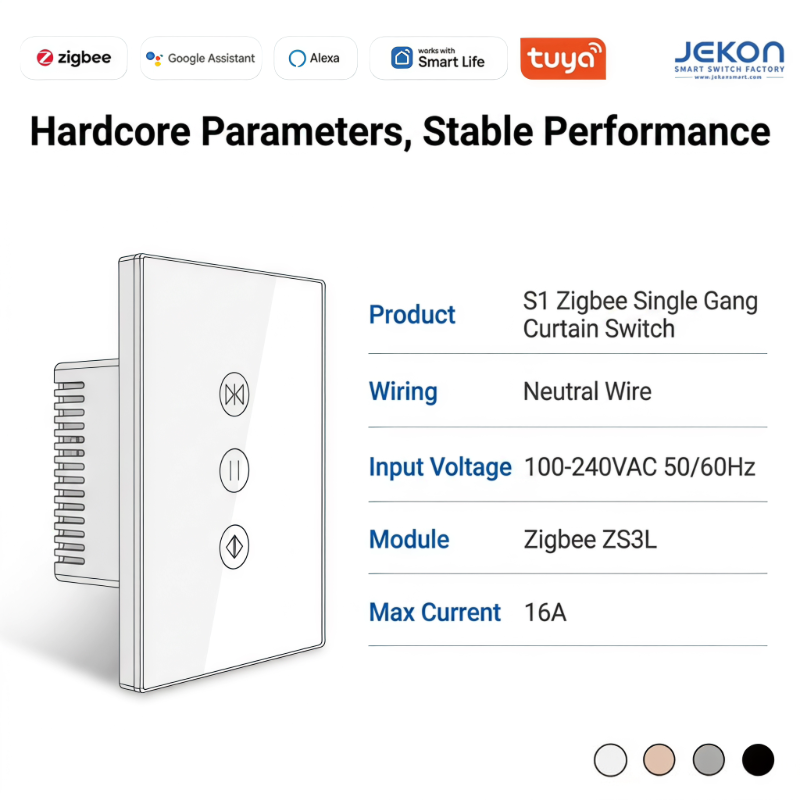

| Parameter Item | Detailed Specification |
|---|---|

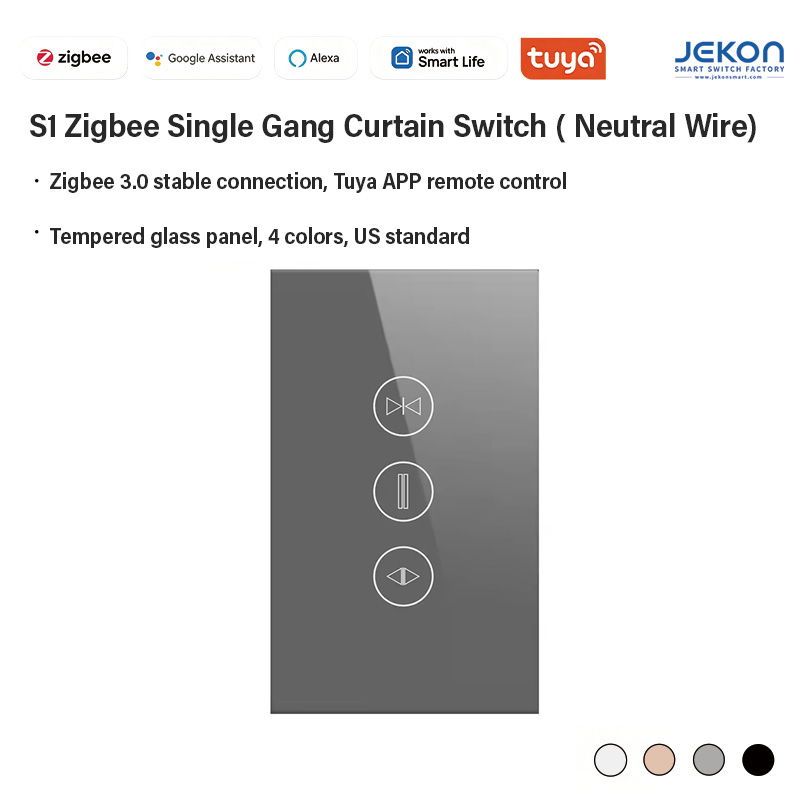

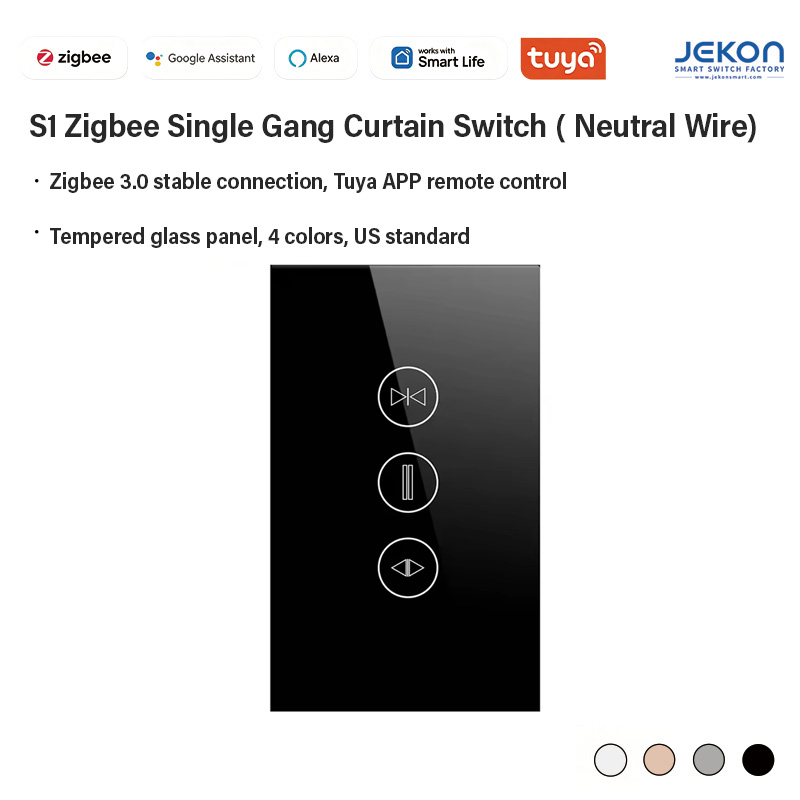

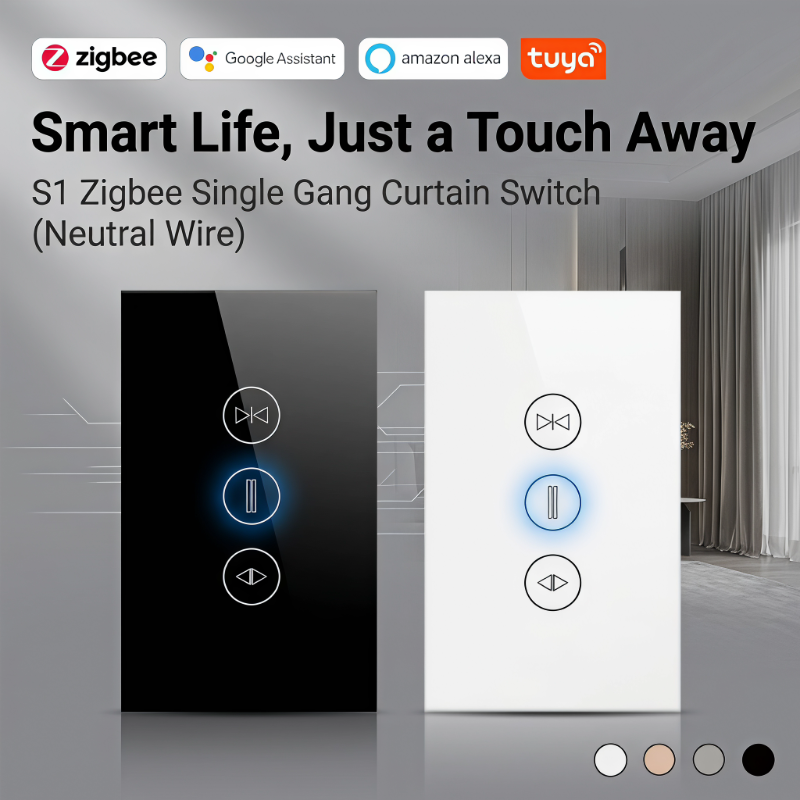

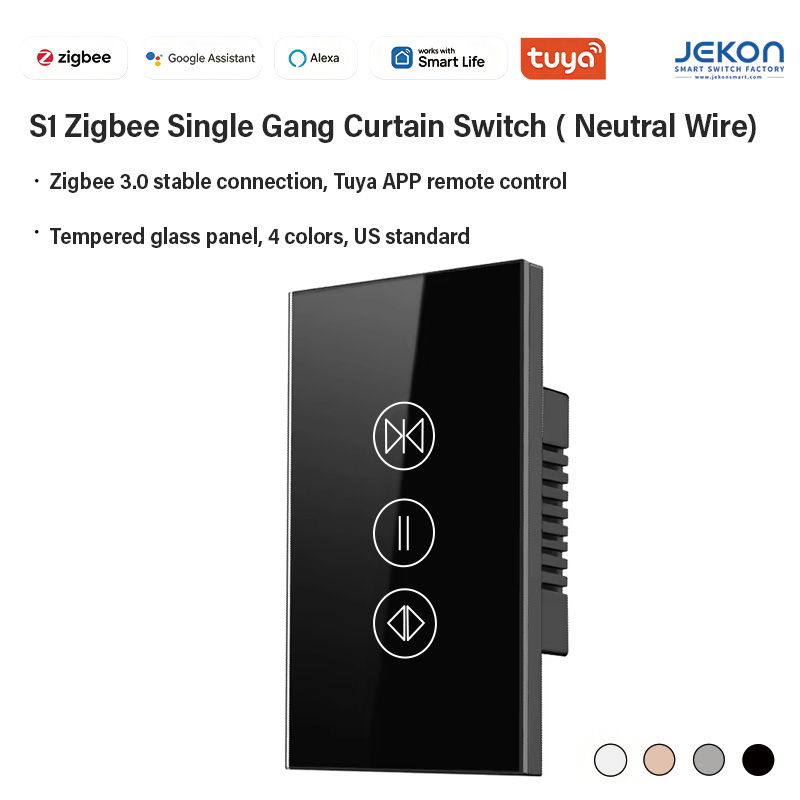

| Model | S1 Zigbee Single Gang Smart Curtain Touch Switch (Neutral Wire Version) |
| Wireless Module | Zigbee 3.0 ZS3L Self-repeating Mesh Module |
| Input Voltage | AC 100V-240V 50/60Hz Wide Universal Voltage |
| Max Rated Current | 16A, matched for curtain motor loads |
| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Touch Buttons | 3 capacitive touch keys: Open / Pause / Close curtain |

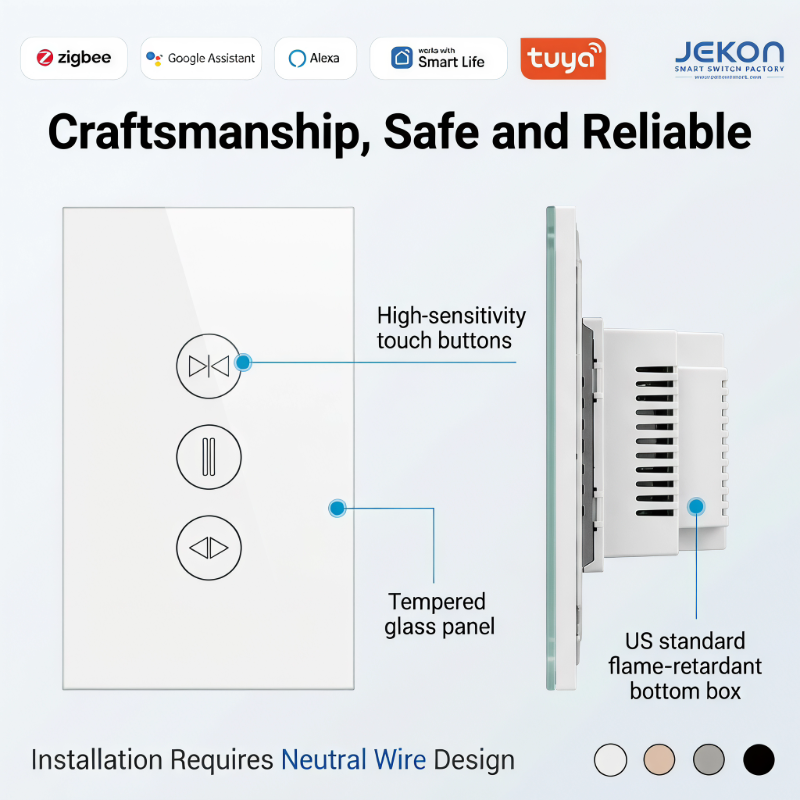

| Panel Material | Crystal clear scratch-resistant tempered glass, soft blue backlight icons for night operation |
| Base Housing | V0 flame retardant PC plastic, good heat dissipation |

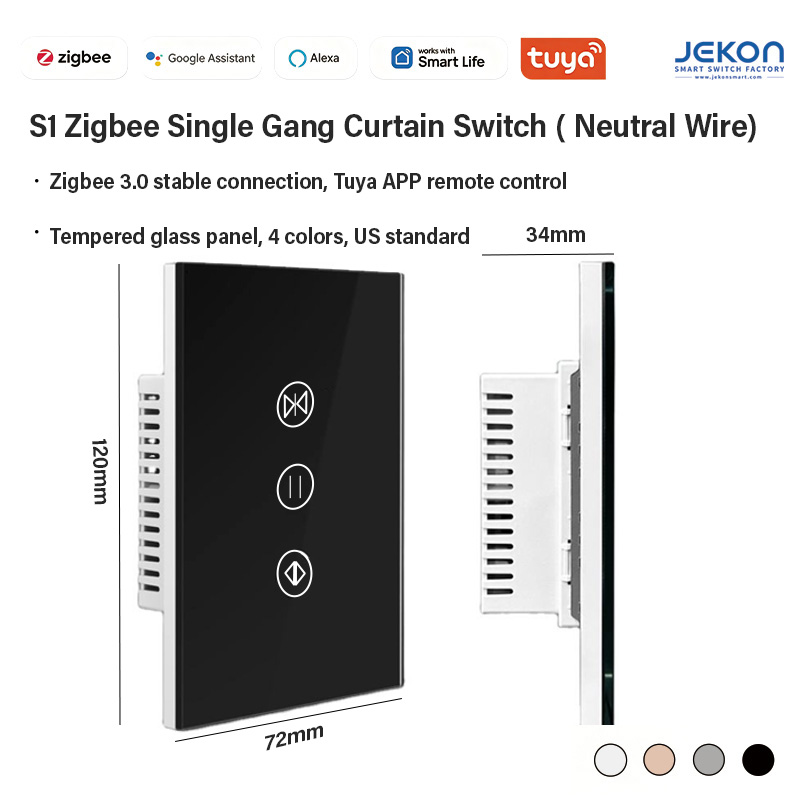

| Product Dimension | US standard size: 120mm(H) × 72mm(W) × 34mm(D) |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant (Zigbee gateway required) |
| Control Modes | Local touch control, APP remote control, voice control, timing schedule, curtain position percentage adjustment, scene linkage, group control |

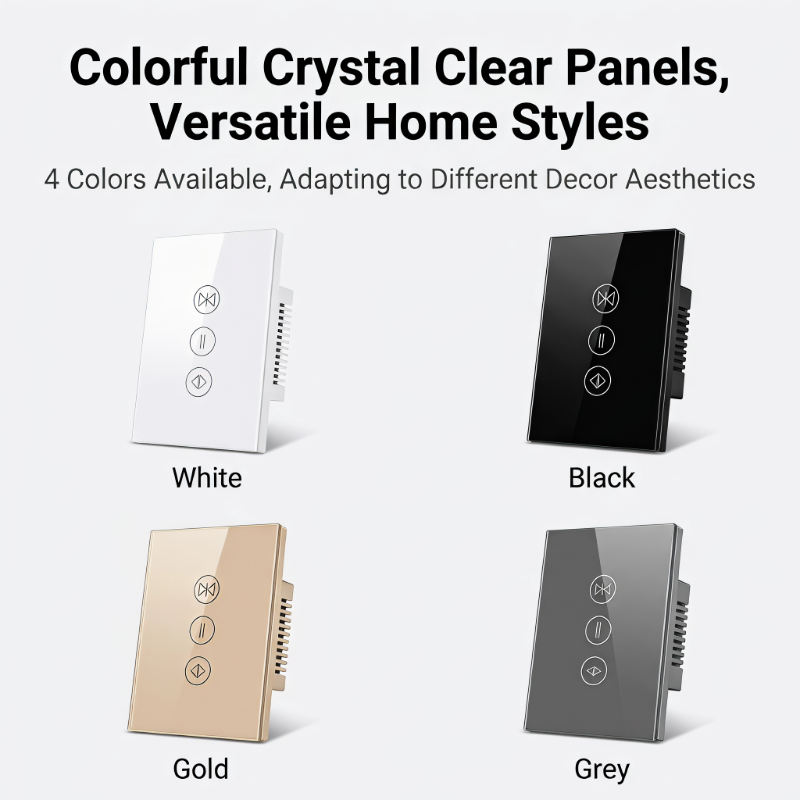

| Optional Colors | White, Champagne Gold, Metallic Grey, Black |
| Application Scenarios | Electric roller blinds, motorized curtains, window shutters, sunshade motor smart control |
| Core Advantages | Zigbee mesh signal relay, stable whole-home smart linkage, support custom curtain travel position |
| Installation | Embedded wall mounting, perfectly fit US standard junction box |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging available |
