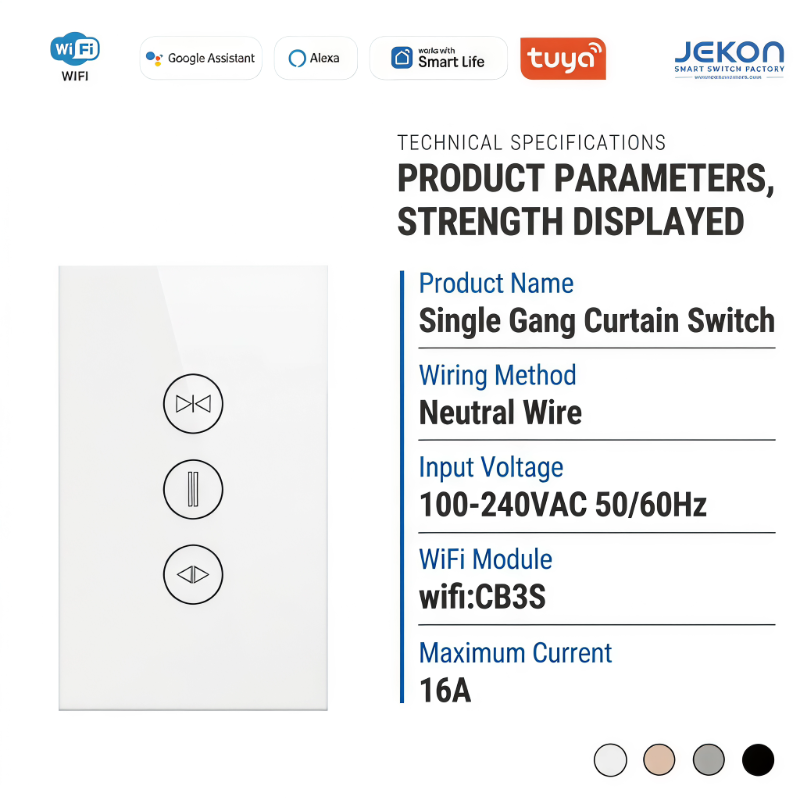

| Parameter Item | Detailed Specification |
|---|---|

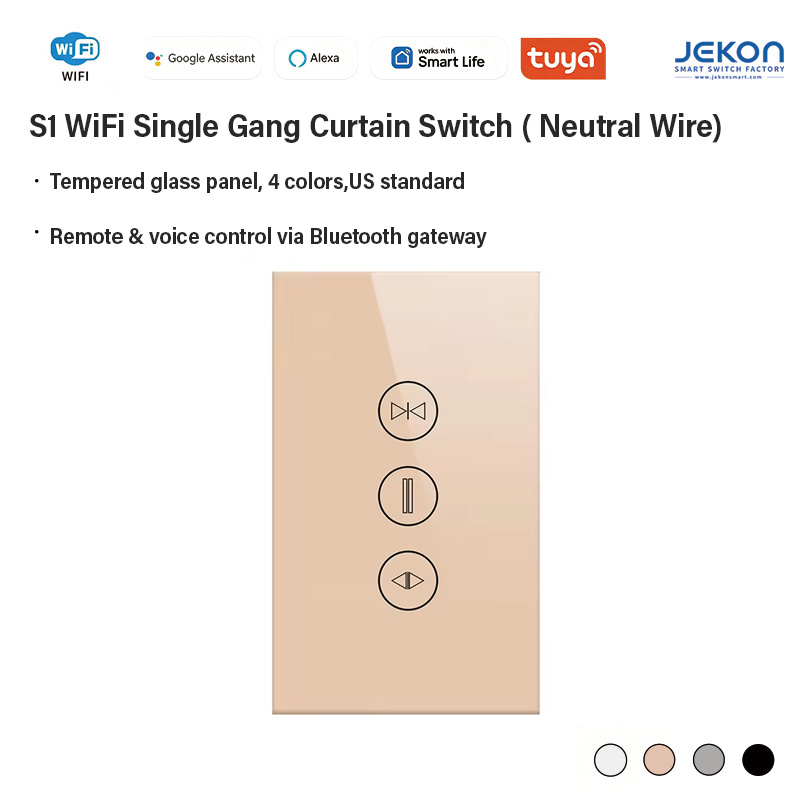

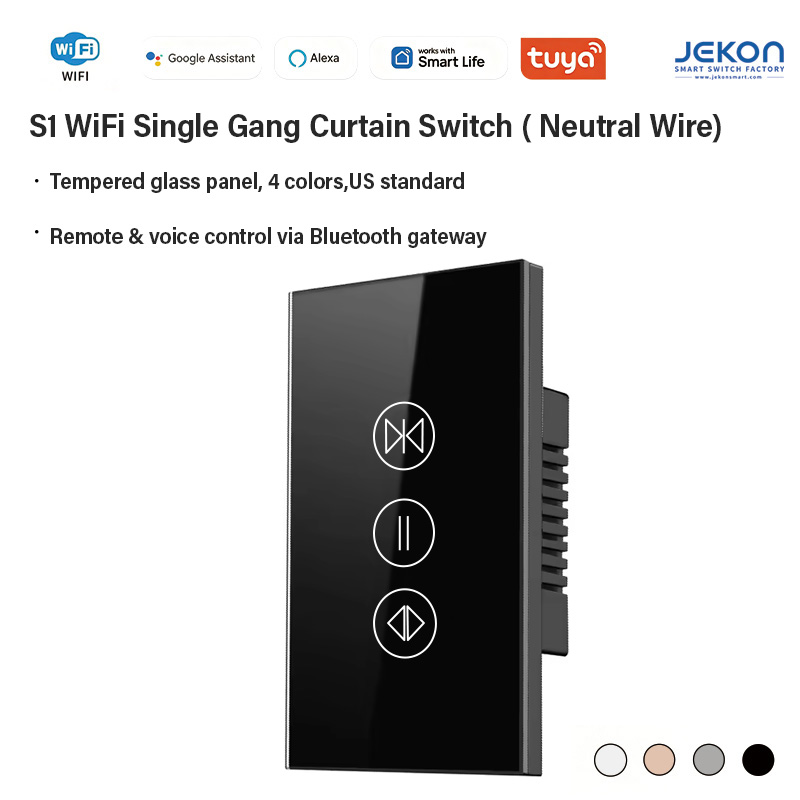

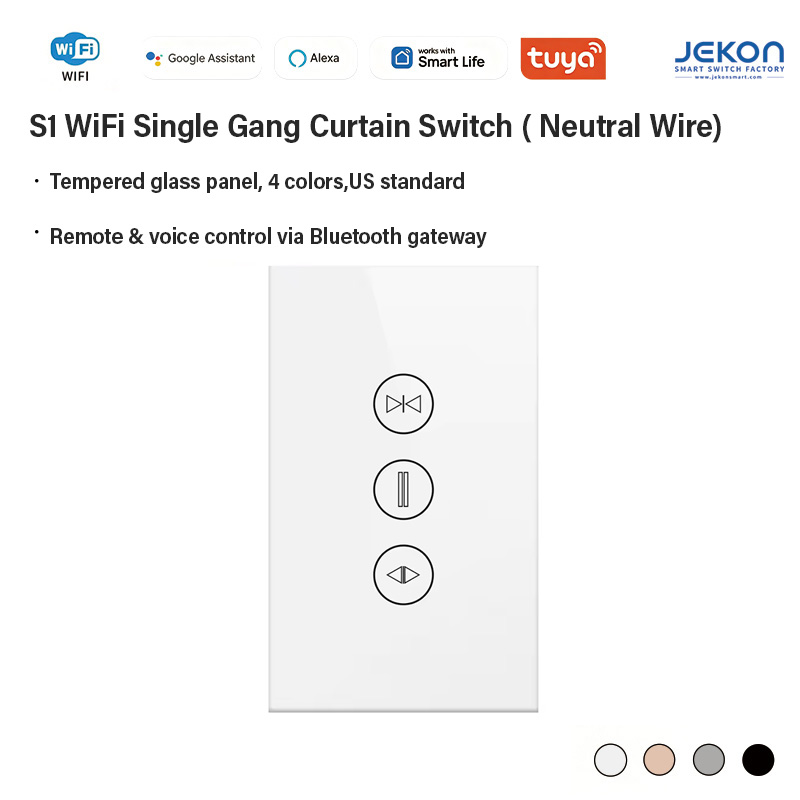

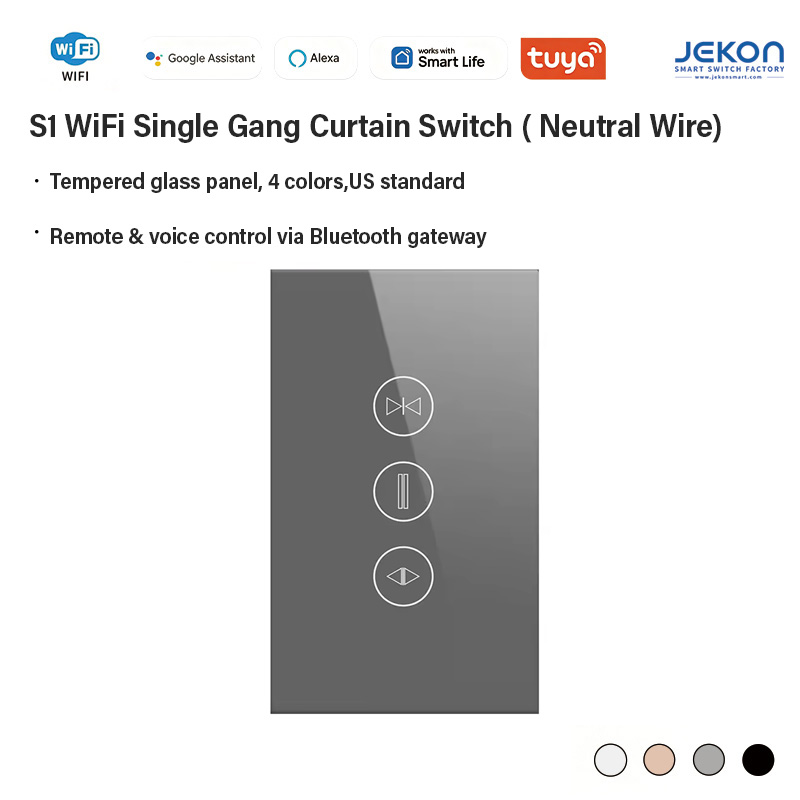

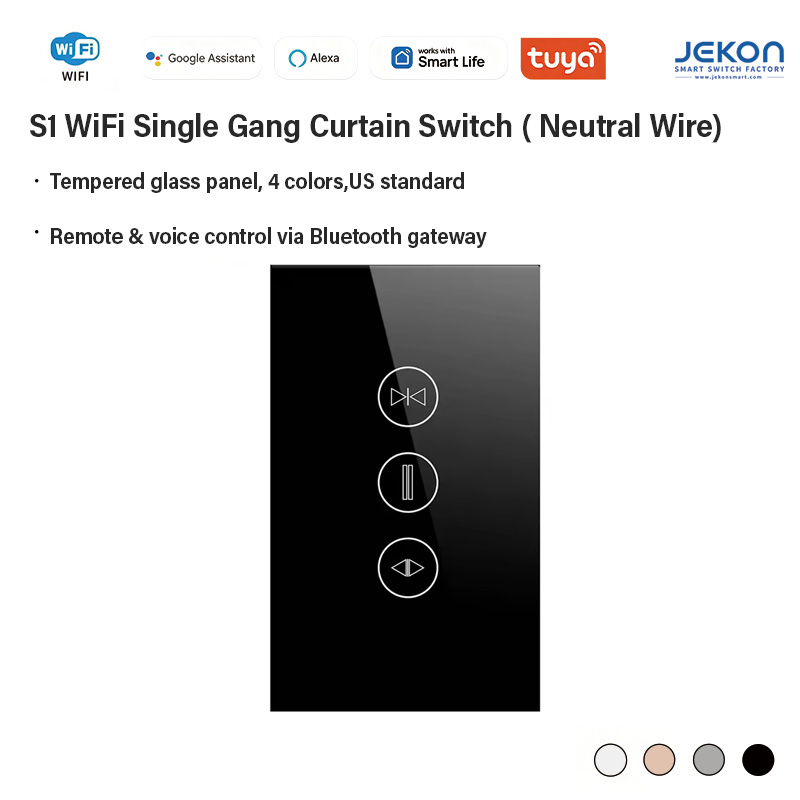

| Model | S1 WiFi Single Gang Smart Curtain Touch Switch (Neutral Wire Version) |
| WiFi Module | Tuya CB3S 2.4GHz WiFi |
| Input Voltage | AC 100V-240V 50/60Hz Wide Universal Voltage |
| Max Rated Current | 16A, suitable for curtain motor loads |
| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Panel Material | Crystal clear scratch-resistant tempered glass, backlit touch icons for night use |
| Housing Material | V0 flame retardant PC plastic |

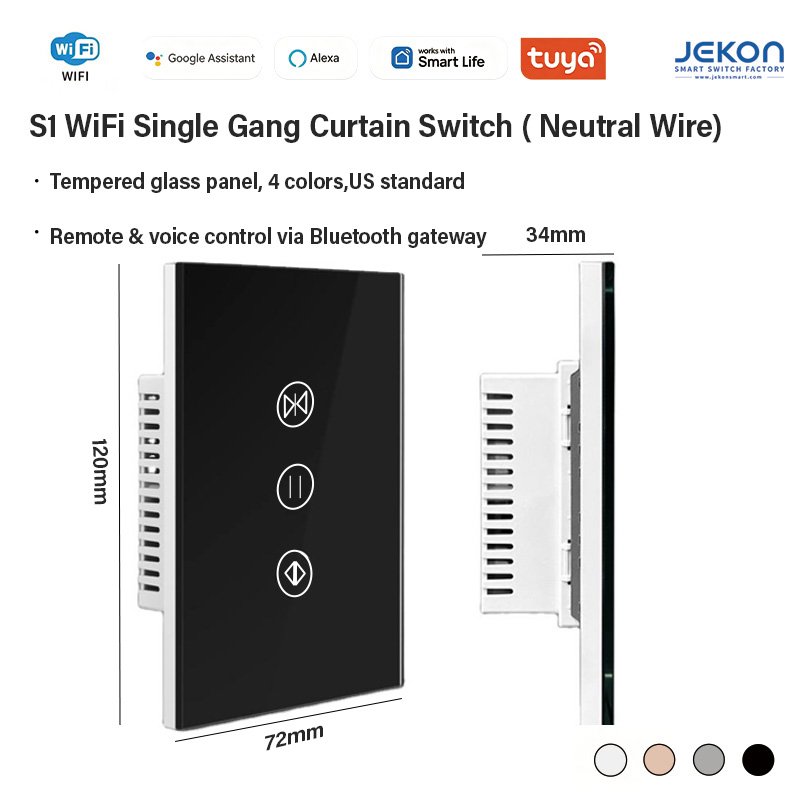

| Standard Size | US standard wall switch 120mm(H) × 72mm(W) |
| Touch Function | Three buttons: Open / Pause / Close curtain motor |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant |
| Control Modes | Capacitive touch control, mobile APP remote control, voice control, timing schedule, scene automation |

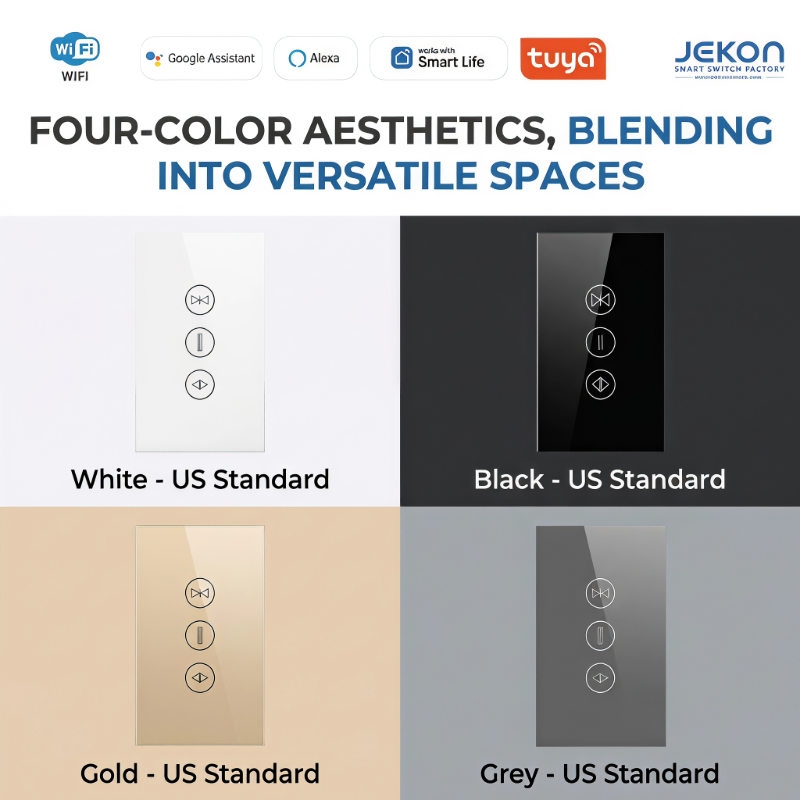

| Optional Colors | White, Champagne Gold, Grey, Black |
| Application | Electric roller blinds, curtain motor, sunshade motor smart control |
| Core Features | Percentage curtain position adjustment, group linkage, one-click scene automation |
| Installation | Embedded wall mount, fit US standard junction box |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging supported |
