| Parameter Item | Detailed Specification |
|---|---|

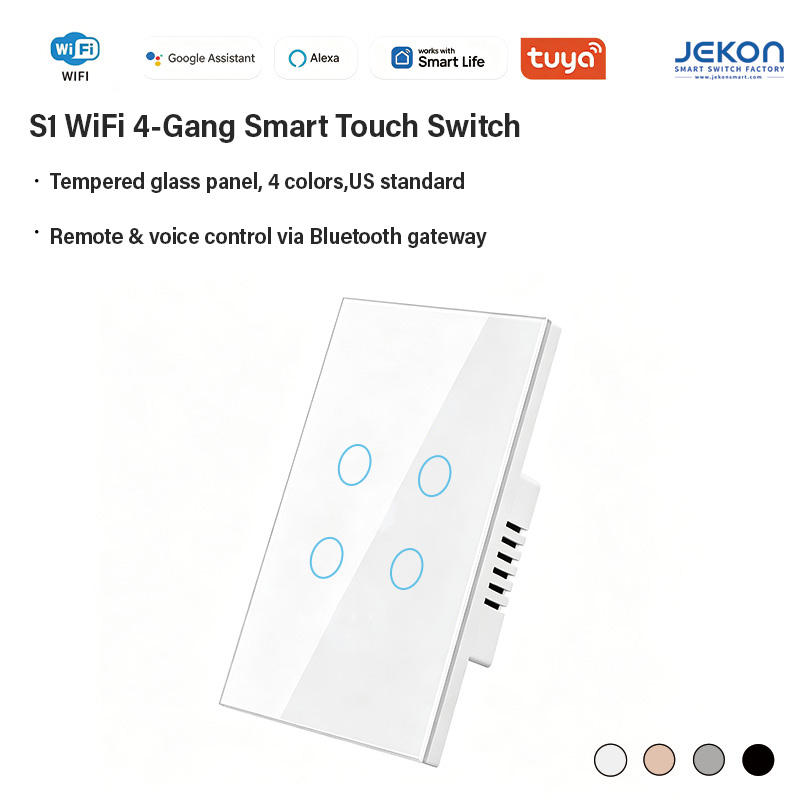

| Model | S1-WiFi 4-Gang Smart Touch Switch (Neutral Wire Version) |
| WiFi Standard | 2.4GHz WiFi IEEE 802.11b/g/n, direct WiFi connection without gateway |
| Input Voltage | AC 100V-240V, 50/60Hz wide universal voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED, incandescent lamps |

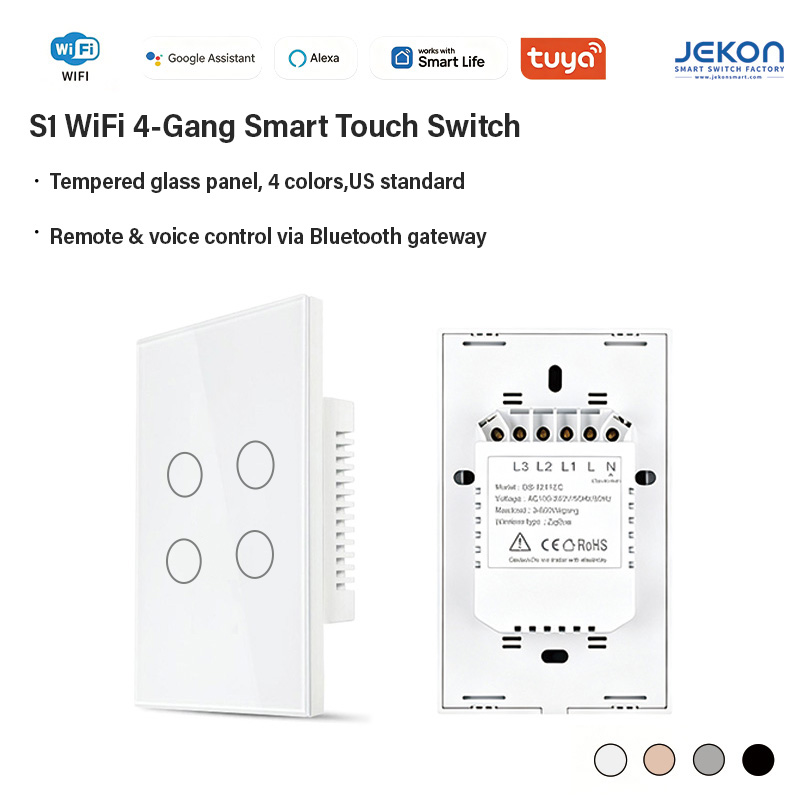

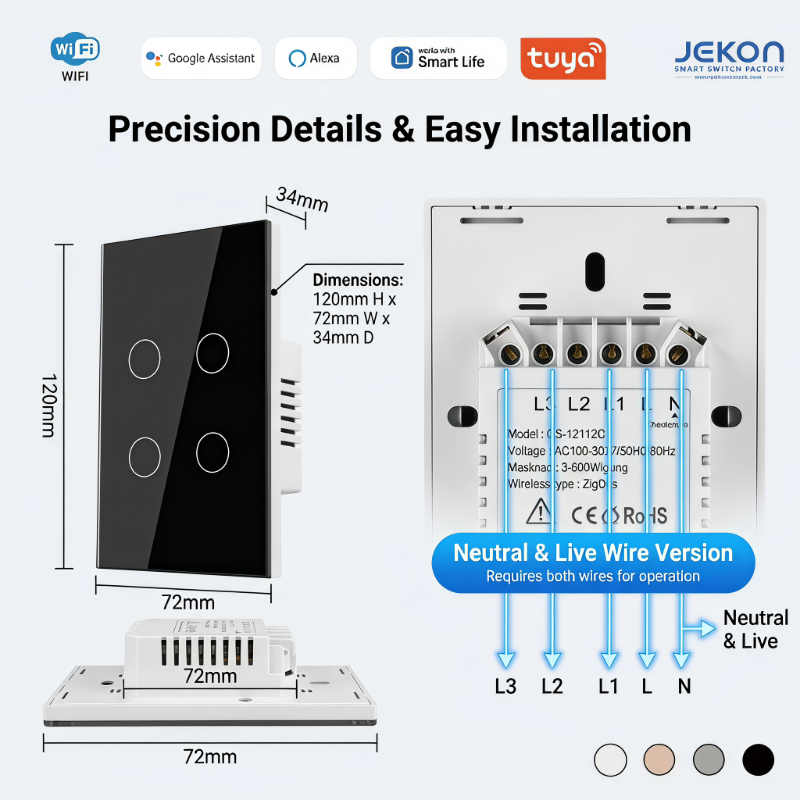

| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Standby Power Consumption | Less than 1W low standby power |
| Mechanical Service Life | Up to 100,000 touch switching cycles |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Touch Control Type | Sensitive capacitive touch with soft blue ring night indicator backlight |
| Panel Material | Flat scratch-resistant tempered glass panel, stain-resistant & easy to clean |
| Middle Frame & Base | V0 flame retardant PC/ABS plastic |

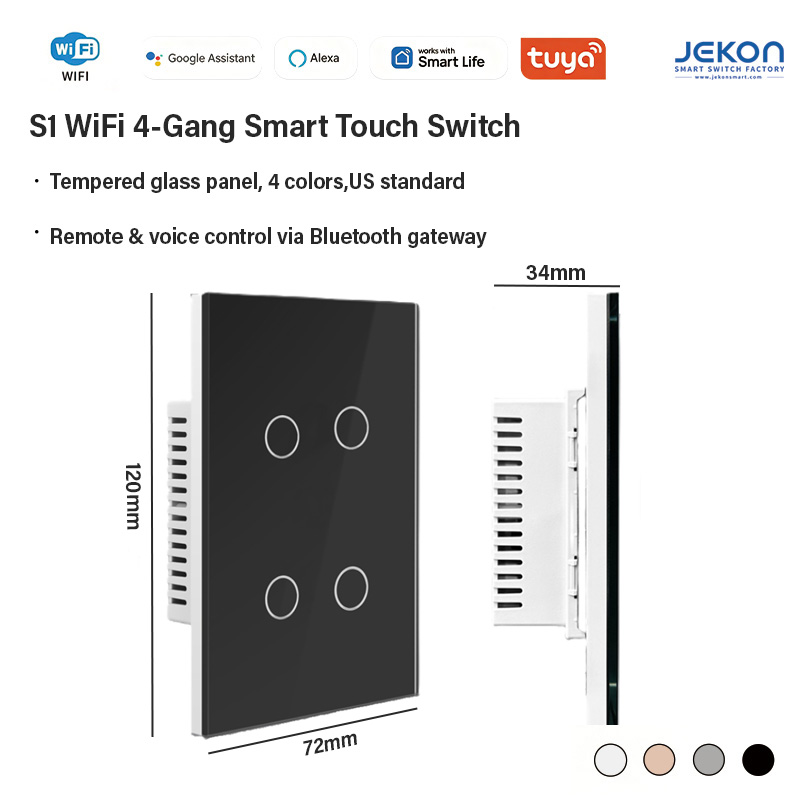

| Product Dimension | US standard size: 120mm(H) × 72mm(W) × 34mm(D) |
| Supported Mobile APP | Tuya Smart / Smart Life Mobile APP, built-in energy monitoring function |
| Compatible Voice Assistants | Amazon Alexa, Google Home Assistant |
| Control Modes | Capacitive touch control, mobile APP remote control, voice control, timing schedule, scene automation, group control, energy consumption monitoring |

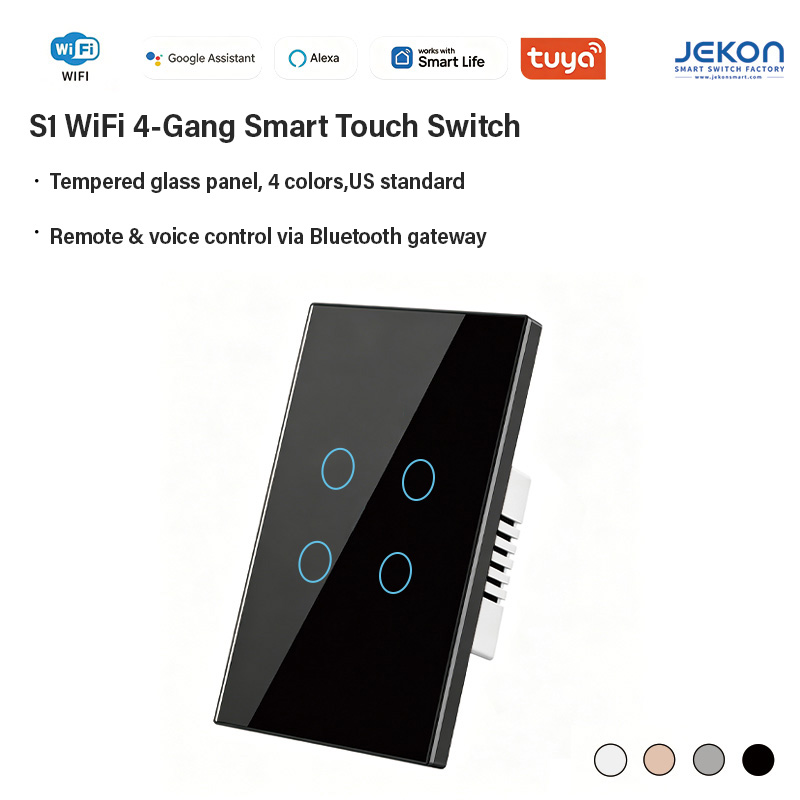

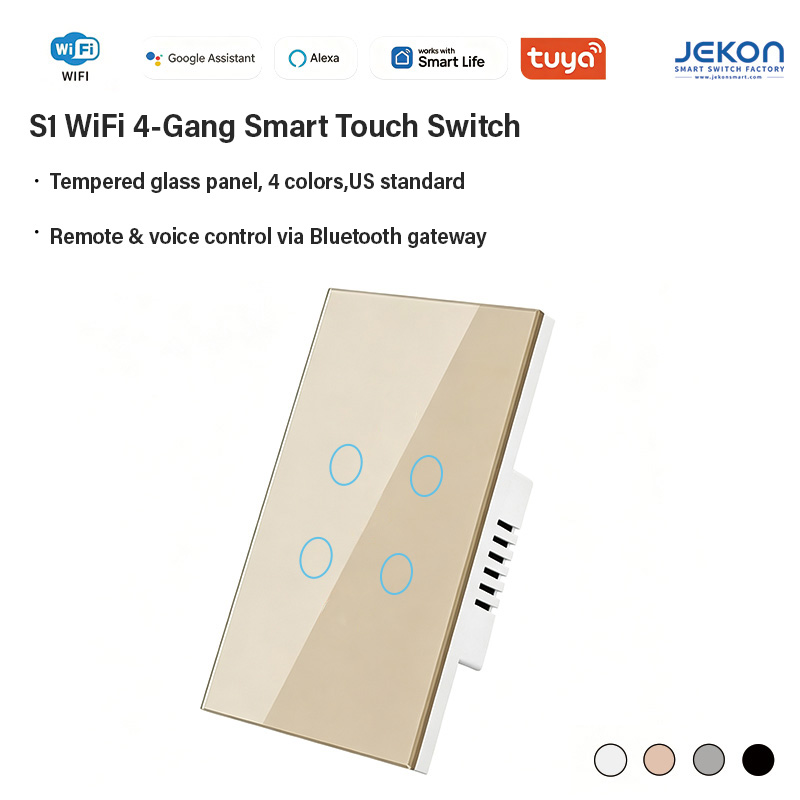

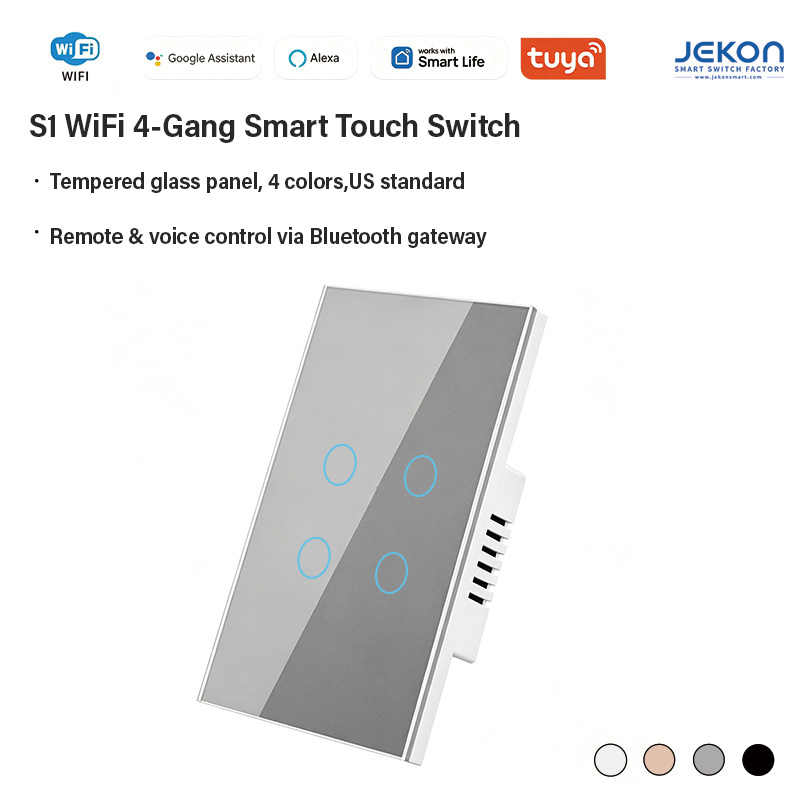

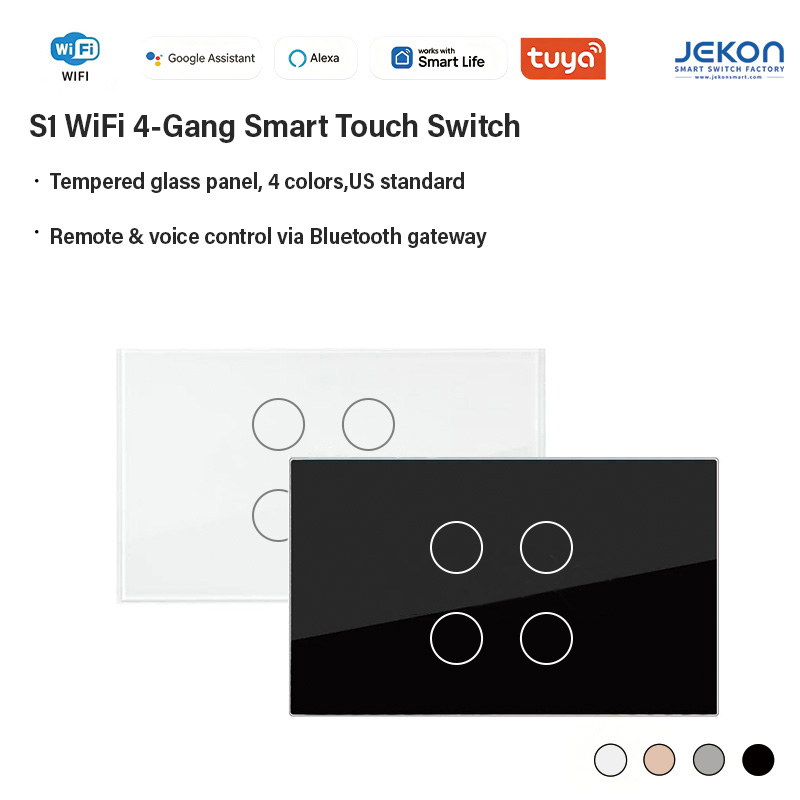

| Optional Appearance Colors | White, Champagne Gold, Grey, Black |
| Core Smart Functions | Timing task, device sharing, power-off status memory, one-click WiFi reset, scene linkage, real-time power statistics |
| Installation | Embedded wall mount, perfectly fit US standard wall junction box with complete wiring instructions |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging supported |
