Let’s Connect – Your Trusted Manufacturing Partner
Partner with JEKON ’s fully automated factories and expert team to bring high-quality switches, lighting, and smart solutions to markets worldwide. From OEM support to consistent supply, we’re ready to power your success.
| Parameter Item | Detailed Specification |
|---|---|
| Model | S1 Bluetooth Mesh 4-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless Protocol | Tuya Bluetooth Mesh Self-repeating Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Universal Voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED & incandescent lamps |

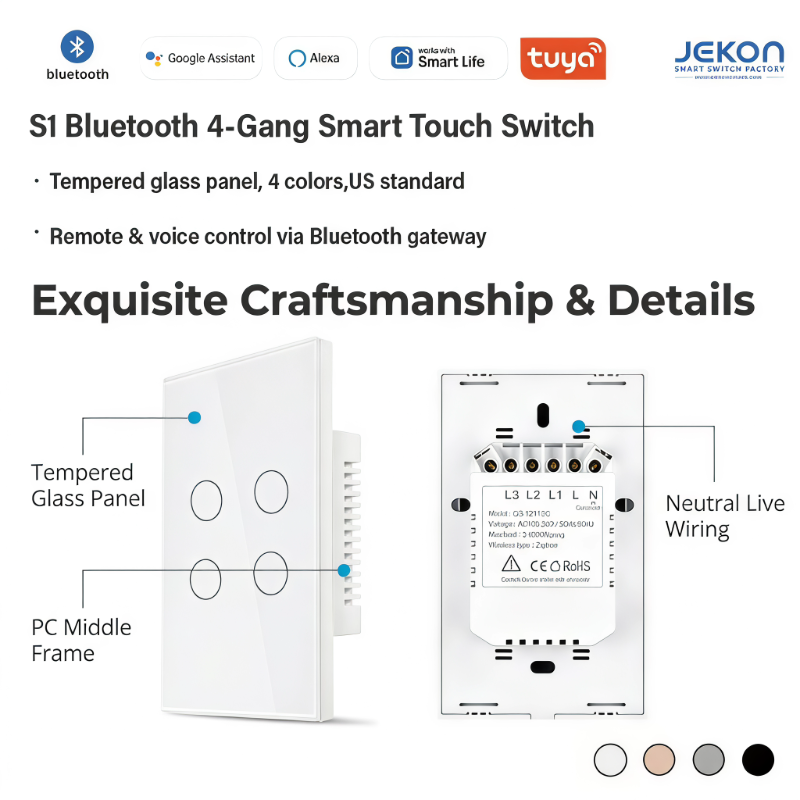

| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Standby Power Consumption | Less than 1W low standby power |
| Mechanical Service Life | Up to 100,000 touch switching cycles |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Touch Control Type | Capacitive sensitive touch with soft blue ring LED night indicator |
| Panel Material | Flat scratch-resistant tempered glass panel, smooth and easy to clean |
| Middle Frame Material | V0 flame retardant PC plastic |

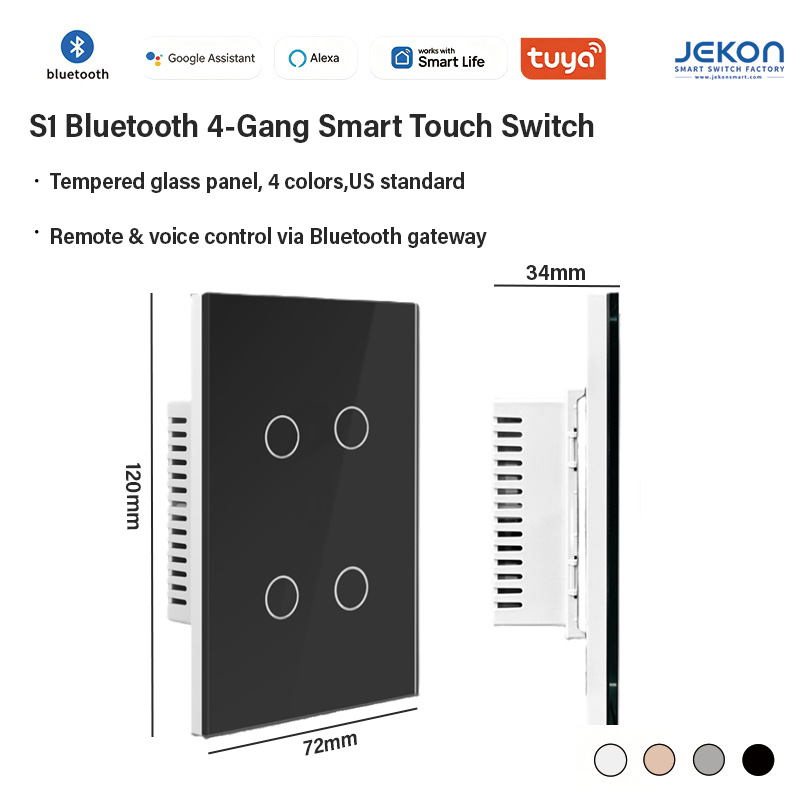

| Product Dimension | US standard size: 120mm(H) × 72mm(W) × 34mm(D) |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Voice Assistant Compatibility | Amazon Alexa, Google Assistant (Bluetooth gateway required for remote voice control) |
| Control Modes | Capacitive touch control, local Bluetooth control, APP remote control via gateway, voice control, timing schedule, scene linkage, group control |
| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Advantages | Bluetooth mesh signal relay, stable whole-house interconnection, low cost for hotel & bulk smart home engineering projects |
| Smart Functions | Timing task, device sharing, power-off status memory, scene automation |
| Installation | Embedded wall mount, perfectly fit US standard wall junction box |
| Safety Certification | CE, RoHS compliant, OEM custom logo & export packaging available |
