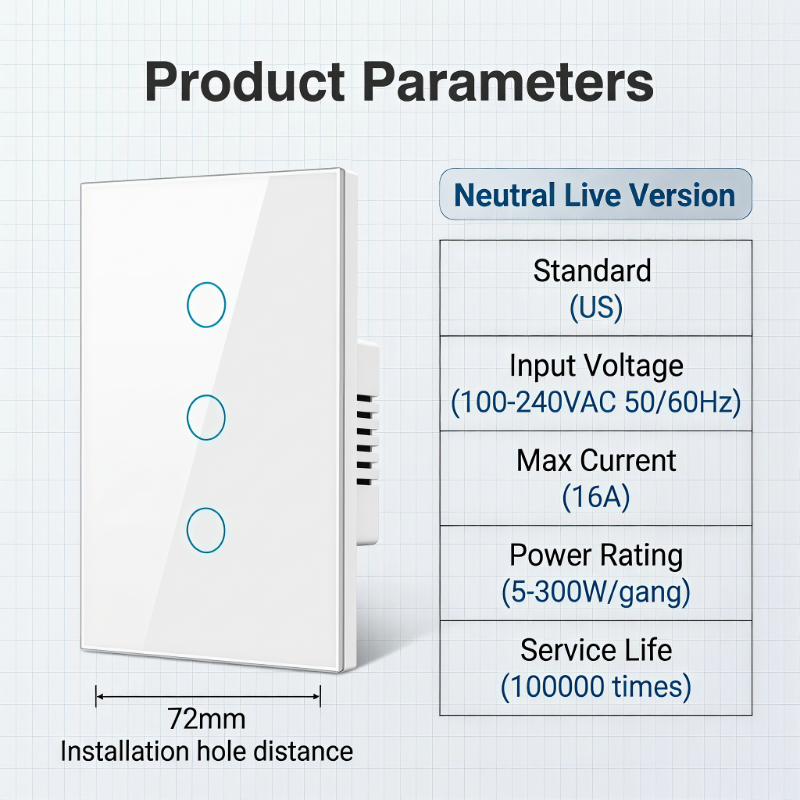

| Parameter Item | Detailed Specification |
|---|---|

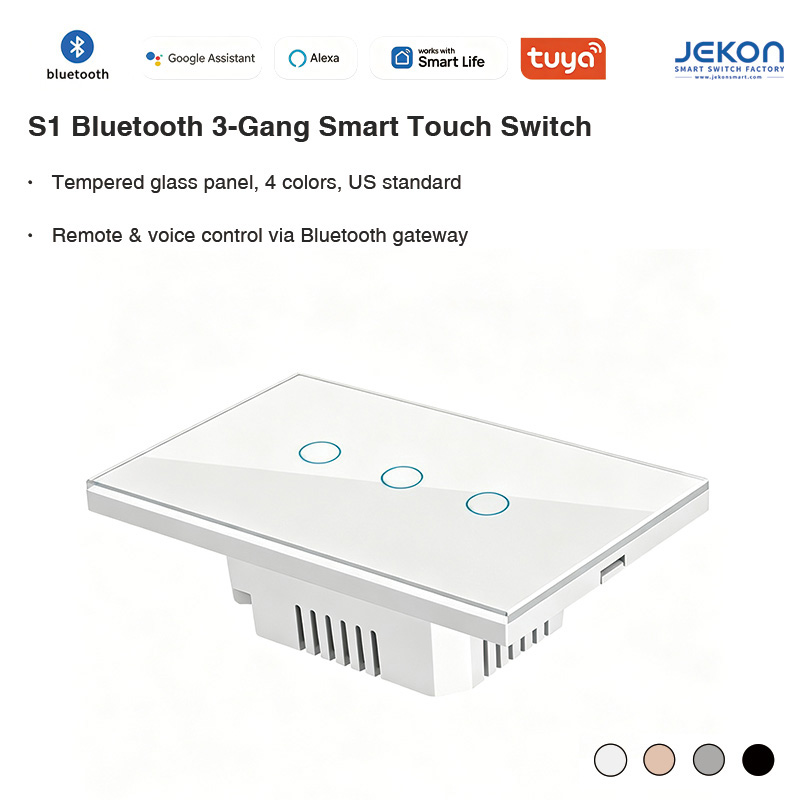

| Model | S1 Bluetooth Mesh 3-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless Communication | Tuya Bluetooth Mesh Self-repeating Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED & incandescent lamps |

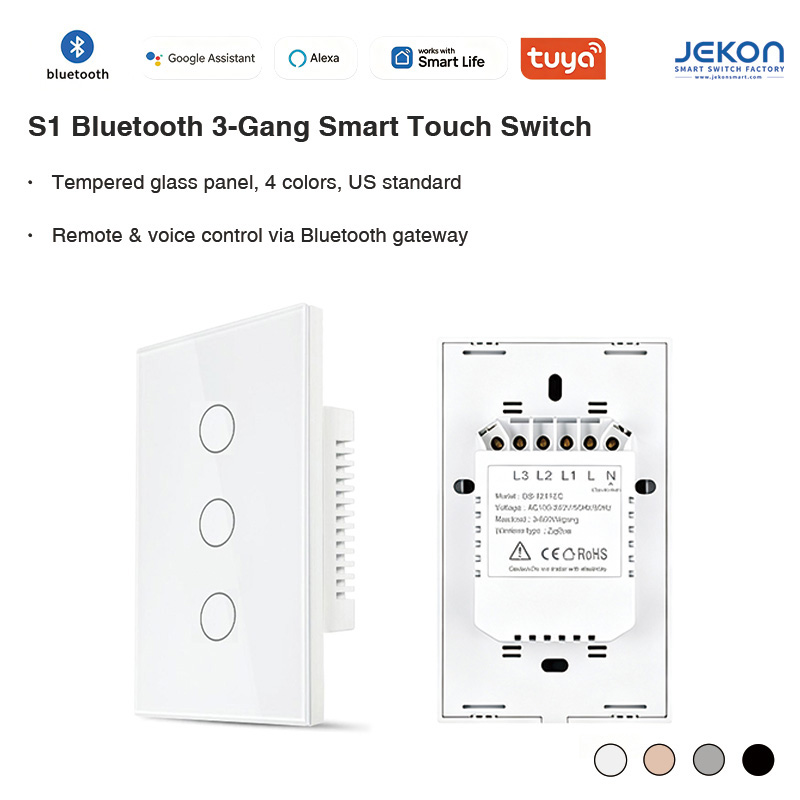

| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Standby Power Consumption | Less than 1W low standby power |
| Mechanical Service Life | Up to 100,000 touch switching cycles |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Panel Material | Scratch-resistant flat tempered glass touch panel, easy to clean |
| Middle Frame & Base | V0 flame retardant PC plastic |
| Standard Size | US standard wall switch, mounting hole distance 72mm |
| Indicator Light | Soft blue ring LED backlight for night identification |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Voice Assistant Compatibility | Amazon Alexa, Google Assistant (Bluetooth gateway required) |
| Control Modes | Capacitive touch control, mobile APP remote control, voice control, timing schedule, scene linkage, group control |

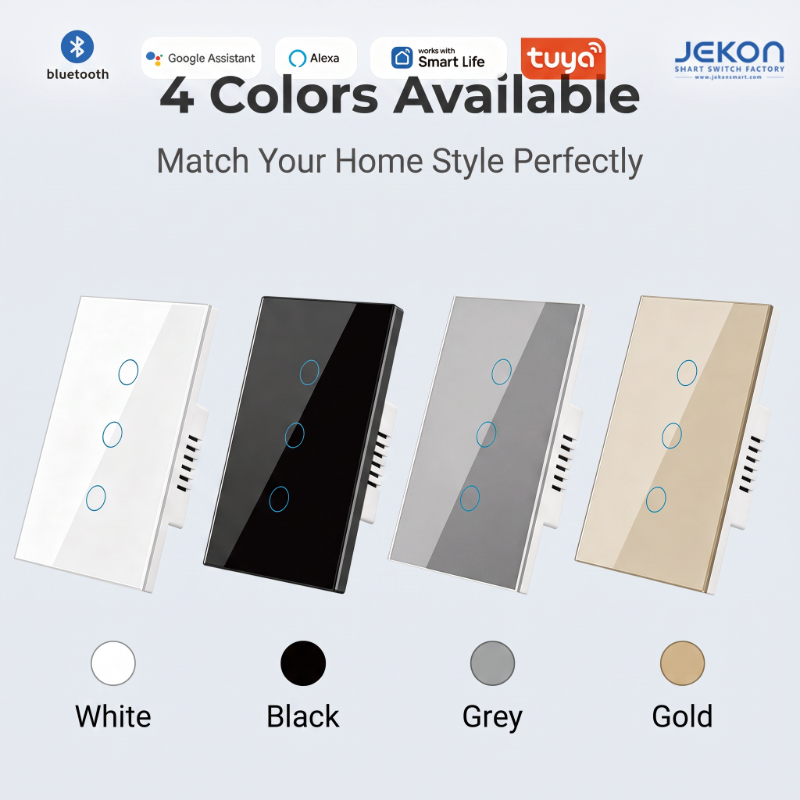

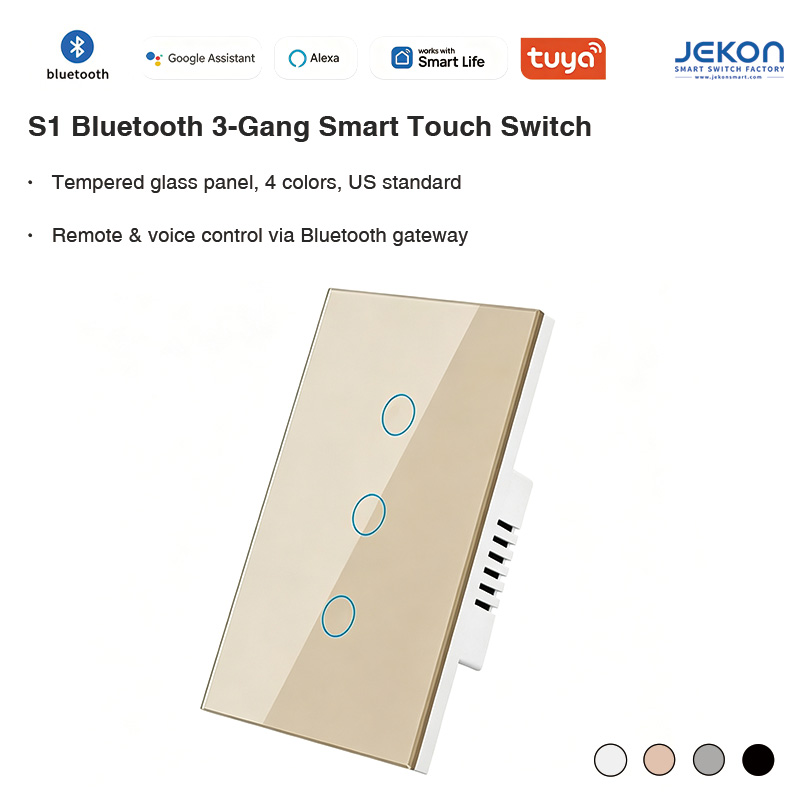

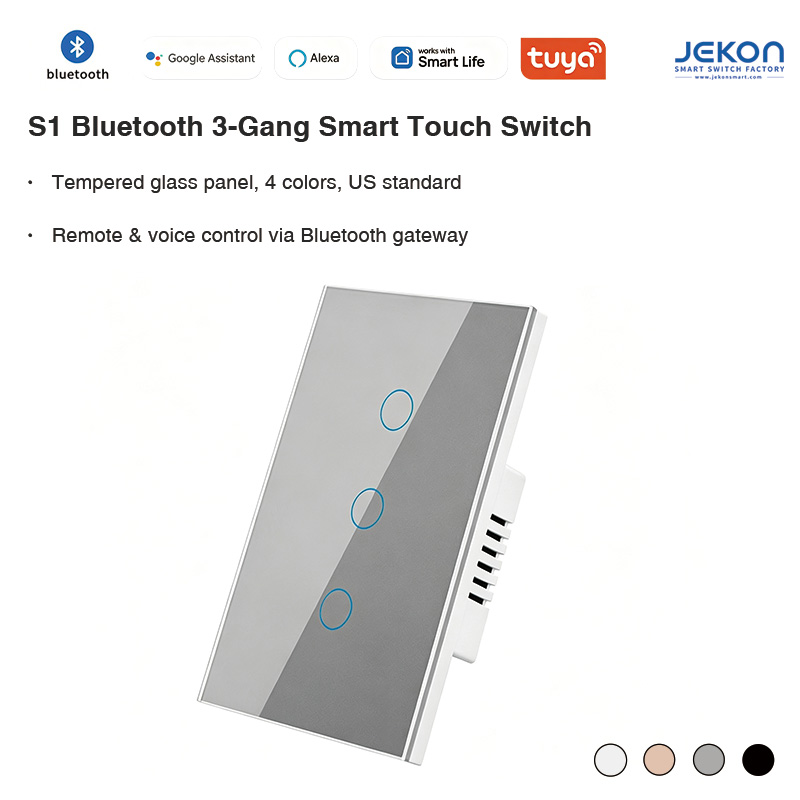

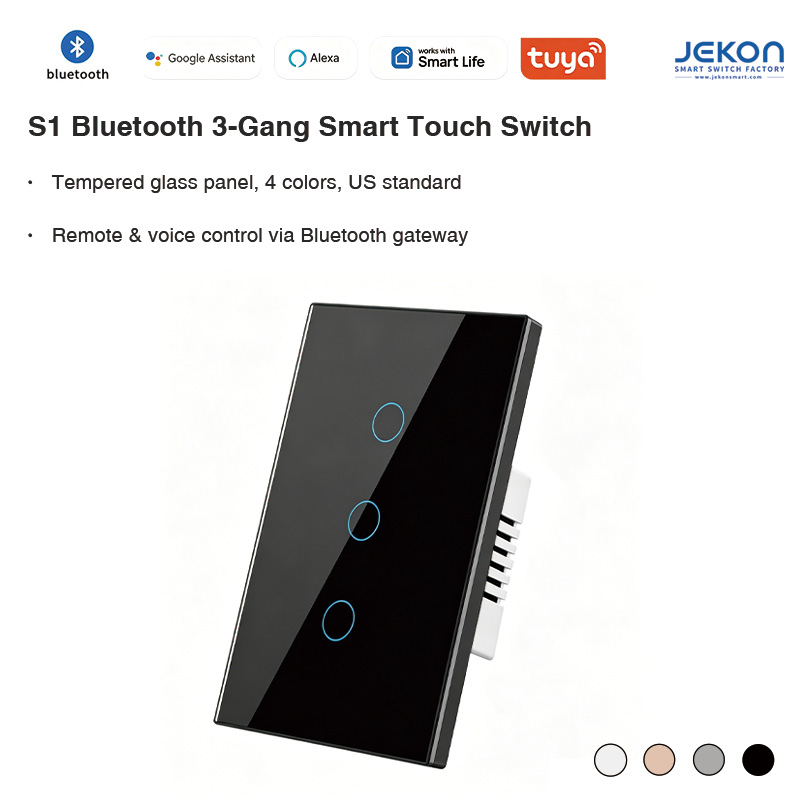

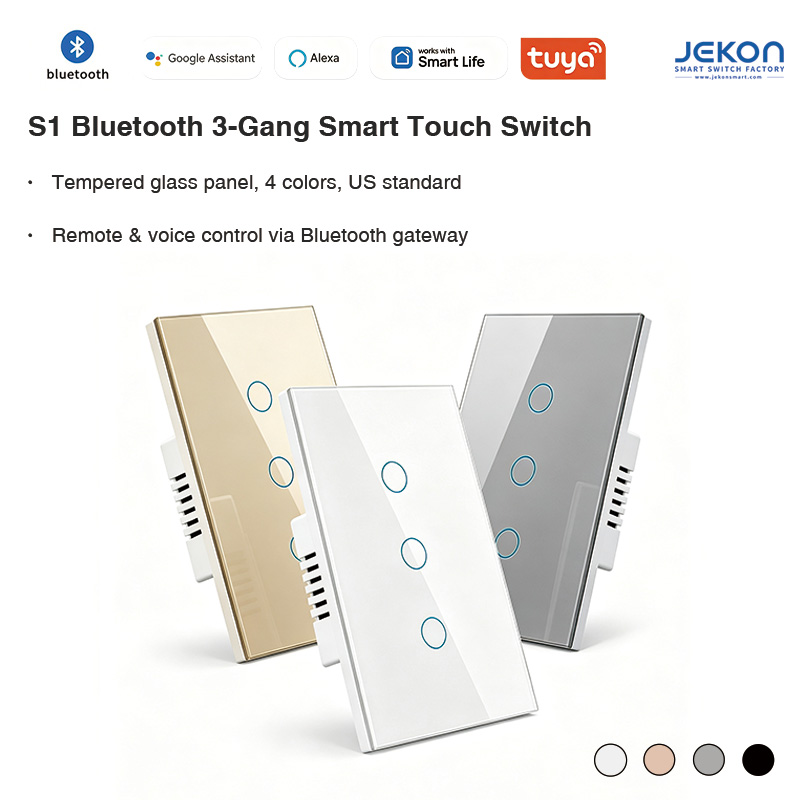

| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Advantages | Bluetooth mesh signal relay, stable whole-house interconnection, low cost for hotel & bulk smart home engineering |
| Smart Functions | Timing task, device sharing, power-off status memory, scene automation |
| Installation | Embedded wall mount, fit US standard wall junction box |
| Safety Certification | CE, RoHS compliant, OEM custom logo & packaging available |
