| Item | Specification Details |
|---|---|
| Model | S1 Bluetooth Mesh 2-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless Protocol | Tuya Bluetooth Mesh Self-Repeating Mesh Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Voltage |
| Max Rated Current | 16A total |
| Single Gang Load Power | 5W ~ 300W, support LED & incandescent lamps |
| Wiring Requirement | Neutral wire + Live wire must be connected (Neutral Mandatory) |
| Standby Power | Less than 1W low power consumption |
| Mechanical Lifespan | Up to 100,000 touch switch cycles |
| Working Temperature | -20℃ ~ +50℃ |
| Panel Material | Flat scratch-resistant tempered glass touch panel, easy to clean |
| Middle Frame Shell | V0 flame retardant PC plastic |

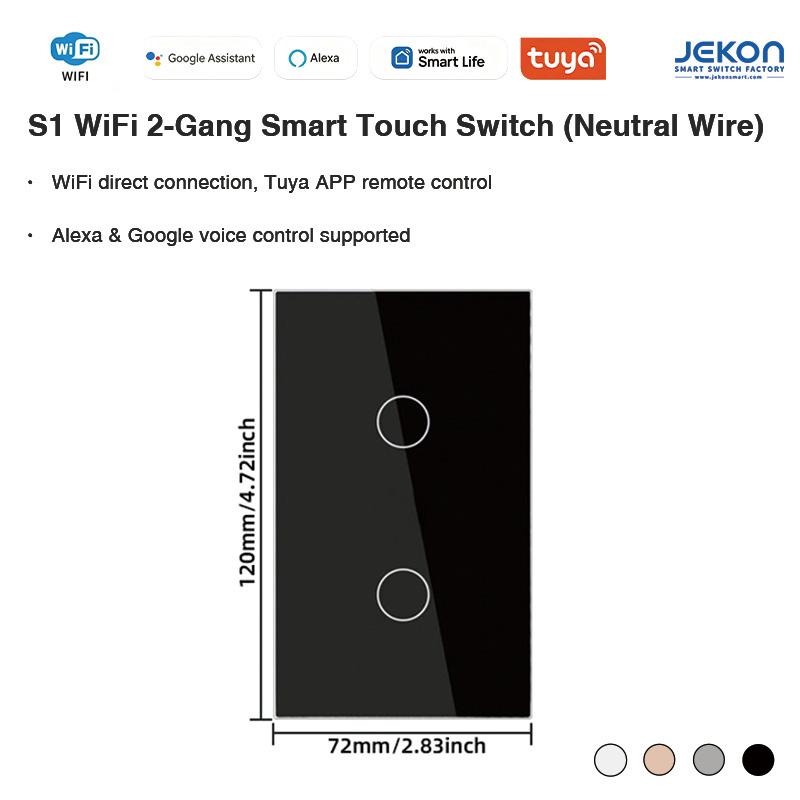

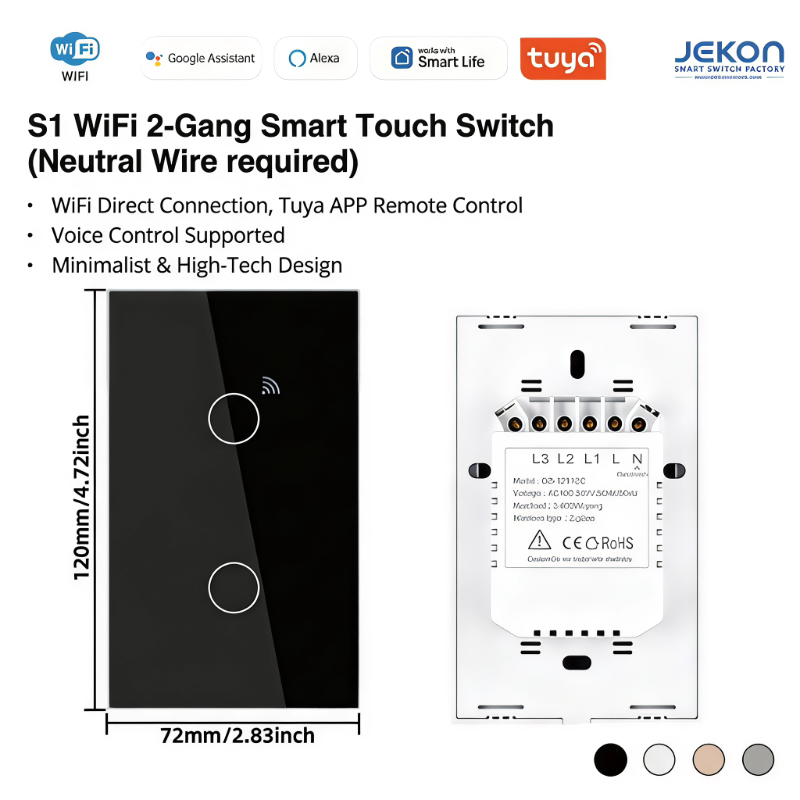

| Standard Size | US standard wall switch: 120mm × 72mm, 72mm mounting hole pitch |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Voice Assistants Compatibility | Amazon Alexa, Google Assistant |
| Control Modes | Capacitive touch, mobile APP remote control, voice control, timing schedule, scene linkage |
| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Advantages | Bluetooth mesh signal relay, stable group linkage, low cost for hotel & whole house smart engineering projects |
| Smart Functions | Timing task, device sharing, power-off status memory, group control |
| Installation | Embedded wall mount, fit US standard junction box |
| Certification | CE, RoHS compliant, OEM custom logo & packaging available |
