| Item | Specification |
|---|---|
| Product Name | Electric Underfloor Heating Power Extension Module |
| Compatible System | Electric floor heating cable, heating film, heating tile |
| Input Voltage | 90V-240V AC 50/60Hz Wide Voltage |
| Max Load Power | 4000W |
| Rated Load Current | 16A |
| Connectivity | 2.4GHz WiFi IEEE 802.11b/g/n |
| Supported APP | Tuya Smart / Smart Life |
| Voice Control | Amazon Alexa, Google Assistant |
| Housing Material | V0 Grade Fireproof ABS+PC |

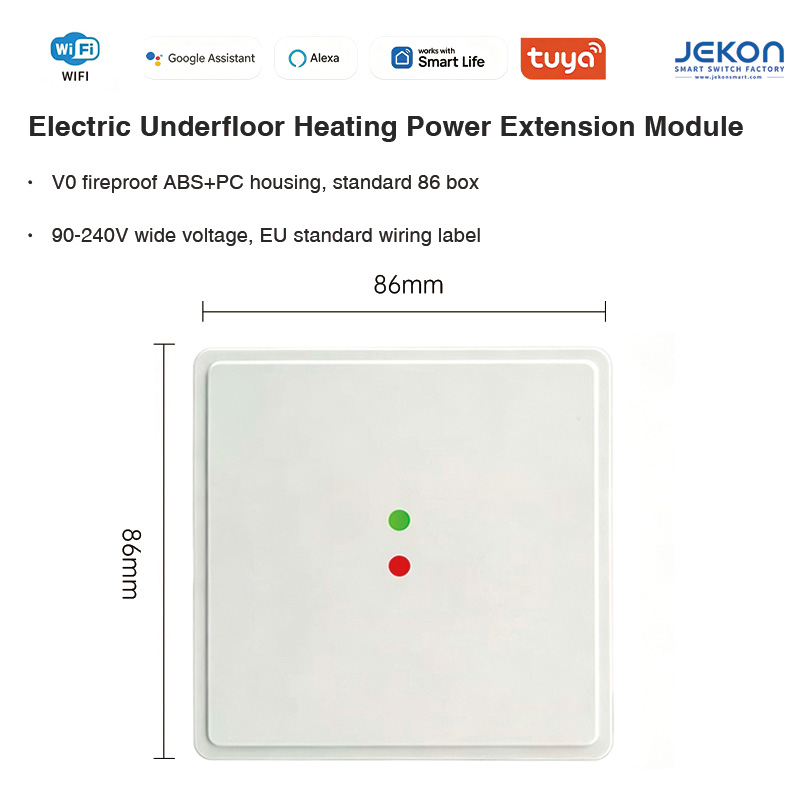

| Installation Size | Standard 86×86mm wall junction box |

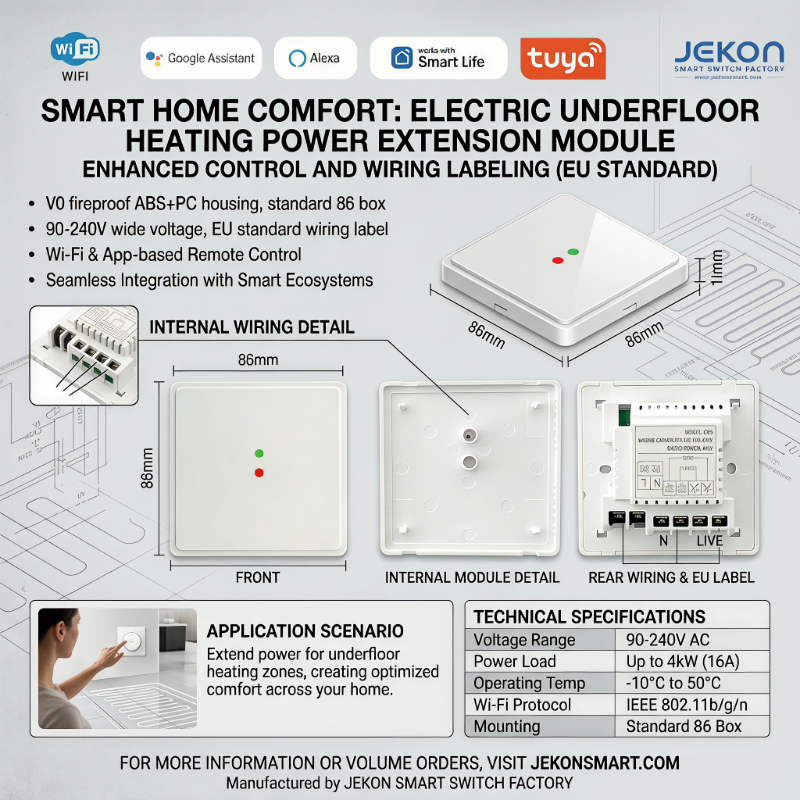

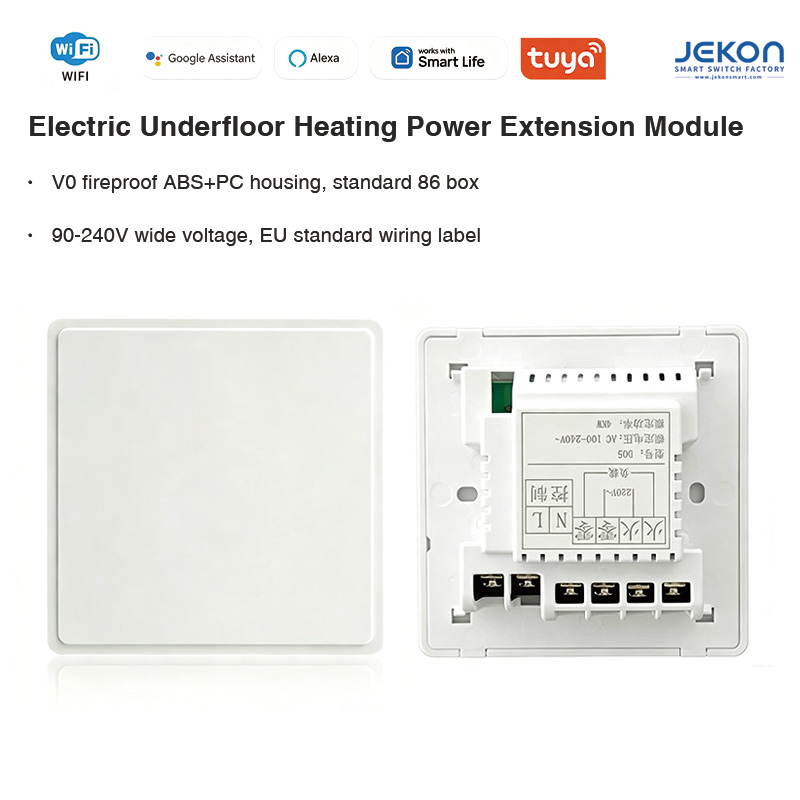

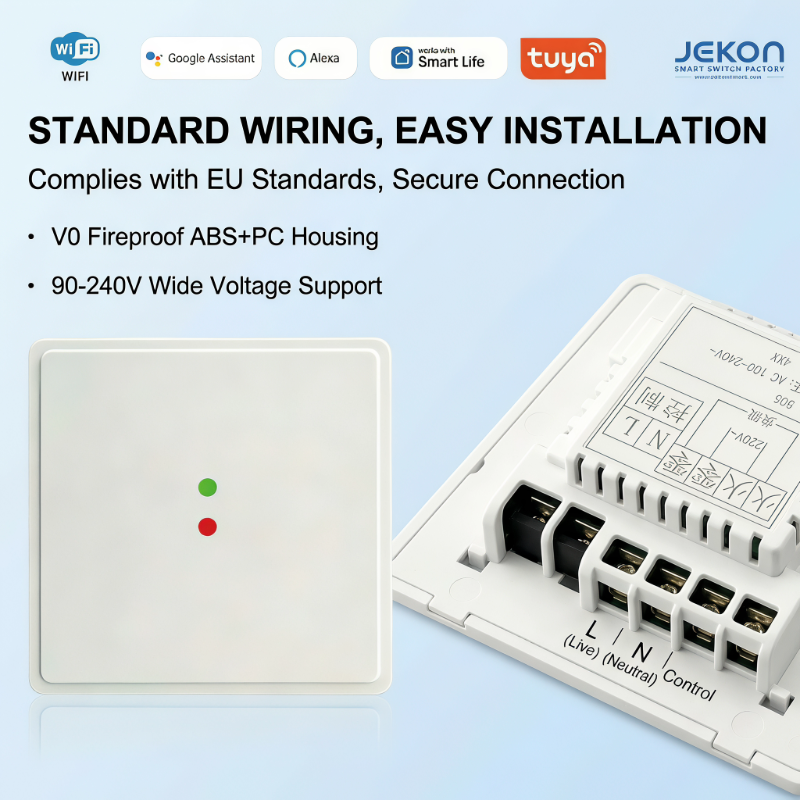

| Wiring Standard | EU standard labeled terminal block (L, N, Live, Control) |
| Indicator Light | Red & Green LED real-time working status feedback |
| Operating Temperature | -10℃ ~ 50℃ |
| Structural Design | Integrated control circuit, professional heat dissipation structure |
| Core Function | Expand load power for multi-zone electric underfloor heating, smart remote linkage with thermostat |
| Safety Feature | V0 fire resistant shell, stable overload protection circuit |
| Application Scenarios | Household, apartment, hotel, office electric floor heating project |
| Service Support | OEM custom logo, bulk wholesale, CE RoHS compliance |
