| Parameter Item | Detailed Specification |
|---|---|
| Model | S1 Zigbee 2-Gang Smart Touch Switch (No Neutral Wire / Single Live Wire Version) |
| Wireless Module | Zigbee 3.0 ZS3L Self-repeating Mesh Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Voltage |
| Max Total Rated Current | 16A |
| Single Gang Load Power | 5W ~ 300W, compatible with LED, incandescent lamps |
| Wiring Feature | Only Live Wire Needed, No Neutral Wire Required, convenient old house renovation |
| Standby Power Consumption | Less than 1W low standby power |
| Operating Temperature Range | -20℃ ~ +50℃ |
| Control Type | Capacitive sensitive touch control |
| Panel Material | Flat scratch-resistant tempered glass, easy to clean |
| Middle Frame | V0 flame retardant PC plastic shell |

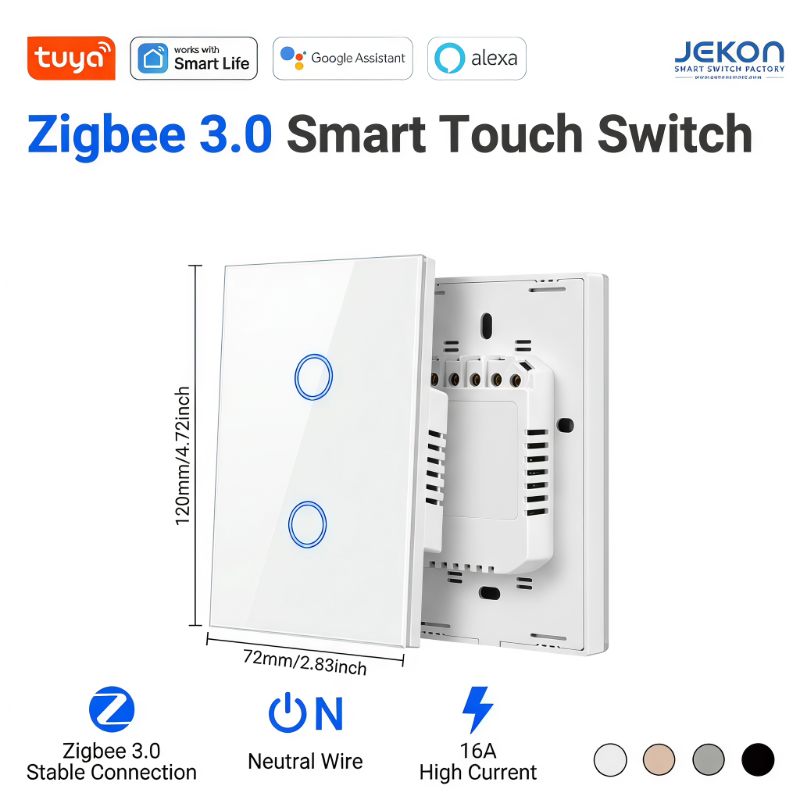

| Standard Size | US standard wall switch: 120mm × 72mm, 72mm mounting hole pitch |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant |
| Control Modes | Touch control, mobile APP remote control, voice control, timing schedule, scene linkage |
| Mechanical Service Life | Over 100,000 touch switching cycles |
| Indicator Light | Soft blue ring night indicator light |

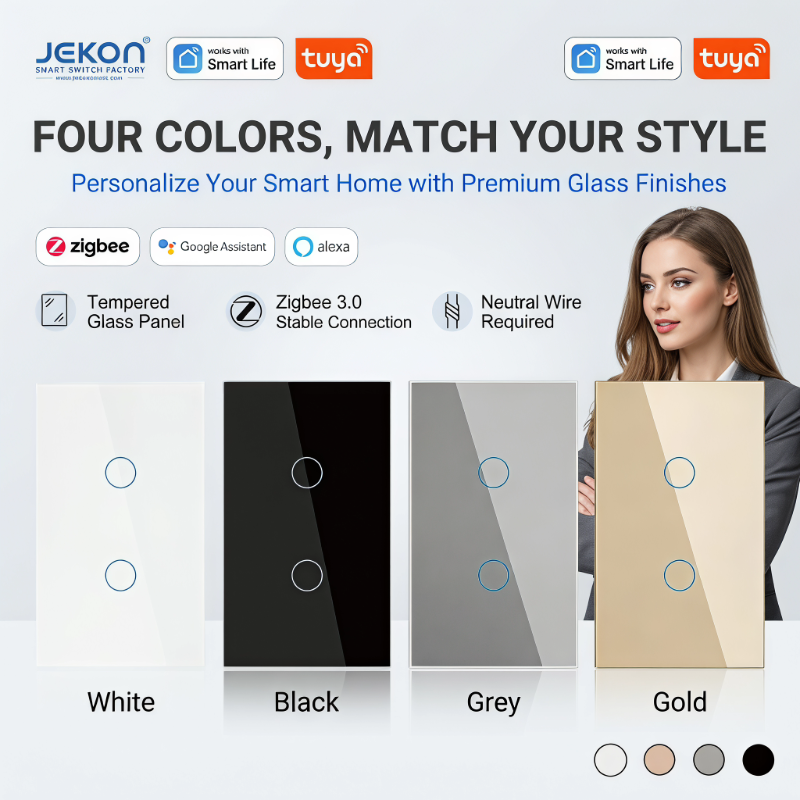

| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Smart Functions | Timing task, group control, device sharing, power-off status memory, whole house mesh interconnection |
| Installation | Embedded wall mount, match US standard junction box, no rewiring required |
| Safety Certification | CE, RoHS certified, OEM custom logo & packaging available |
