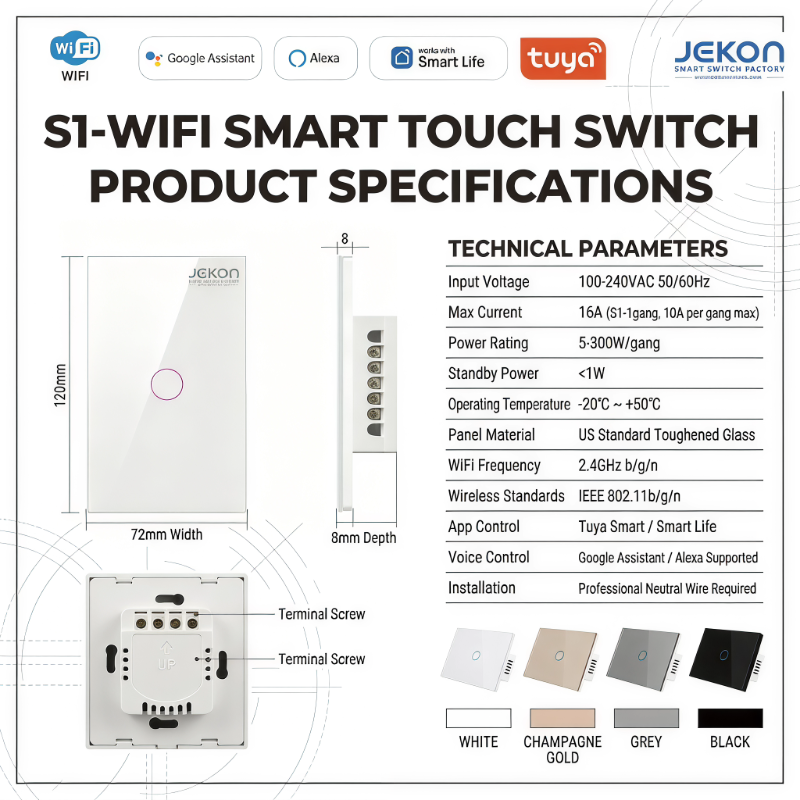

| Parameter Item | Detailed Specification |
|---|---|
| Model | S1-WiFi 1-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless WiFi Standard | 2.4GHz WiFi IEEE 802.11b/g/n |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Voltage |
| Max Rated Current | 16A per gang |
| Single Gang Load Power | 5W ~ 300W, compatible with LED, incandescent lamps |
| Wiring Requirement | Neutral wire + Live wire must be connected (Neutral Required) |
| Standby Power Consumption | Less than 1W low standby power |
| Operating Temperature Range | -20℃ ~ +50℃ |

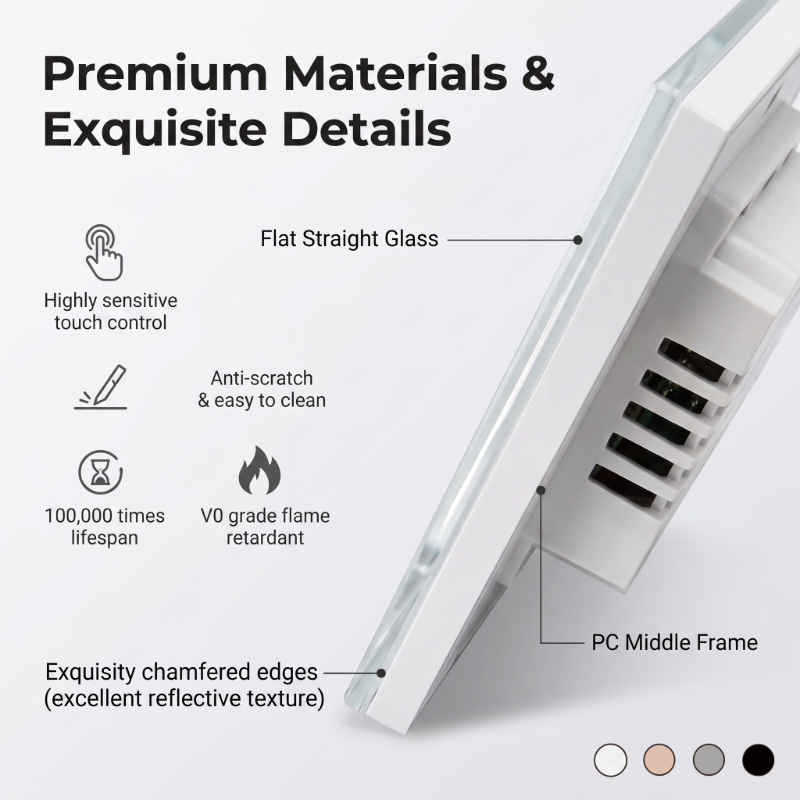

| Panel Material | Scratch-resistant flat tempered touch glass, easy to clean |
| Middle Frame Shell | V0 flame retardant PC plastic |

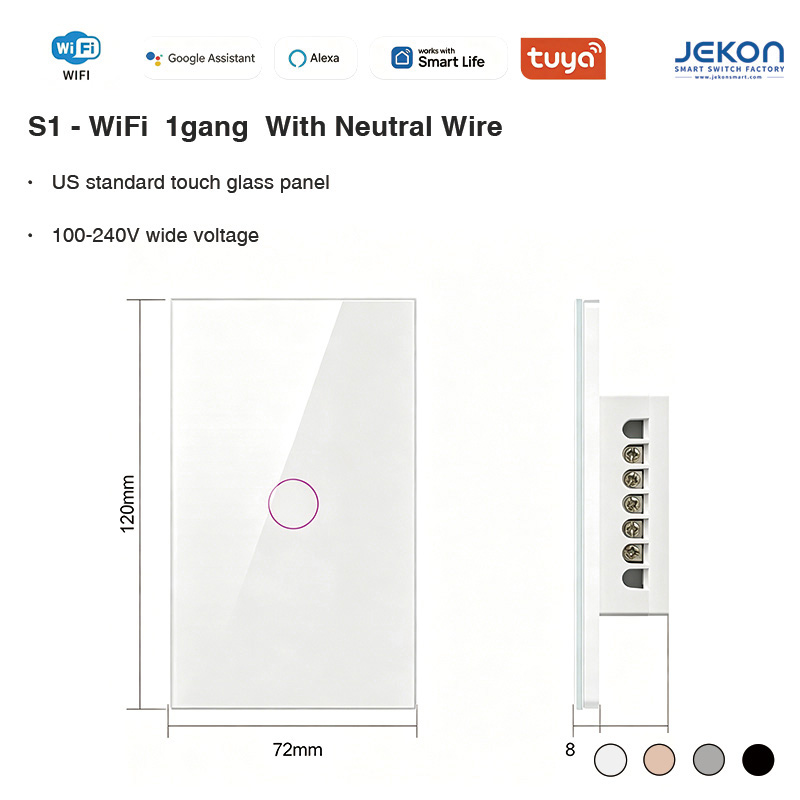

| Product Dimension | US standard size: 120mm(H) × 72mm(W), ultra thin 8mm front thickness |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant |
| Control Modes | Capacitive touch control, mobile APP remote control, voice control, timing schedule |
| Mechanical Service Life | Over 100,000 touch switching cycles |

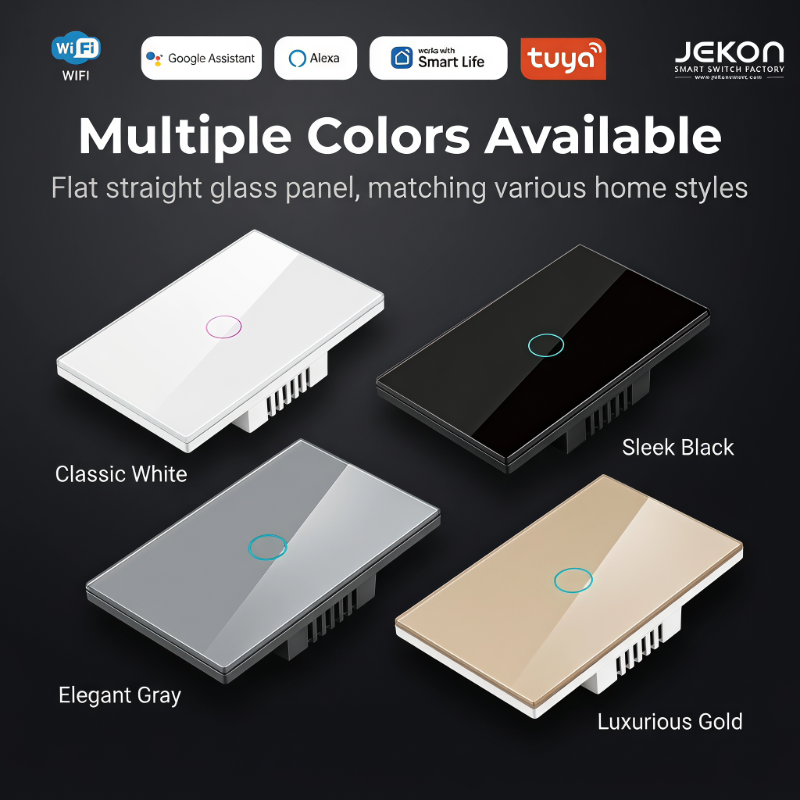

| Optional Colors | White, Champagne Gold, Grey, Black |
| Core Smart Functions | Timing task, scene linkage, device sharing, power-off status memory, group control |
| Installation | Embedded wall mount, fit US standard wall junction box |
| Customization Support | OEM custom logo, customized export packaging |
| Certification | CE, RoHS safety certified |
