| Item | Specification Details |
|---|---|

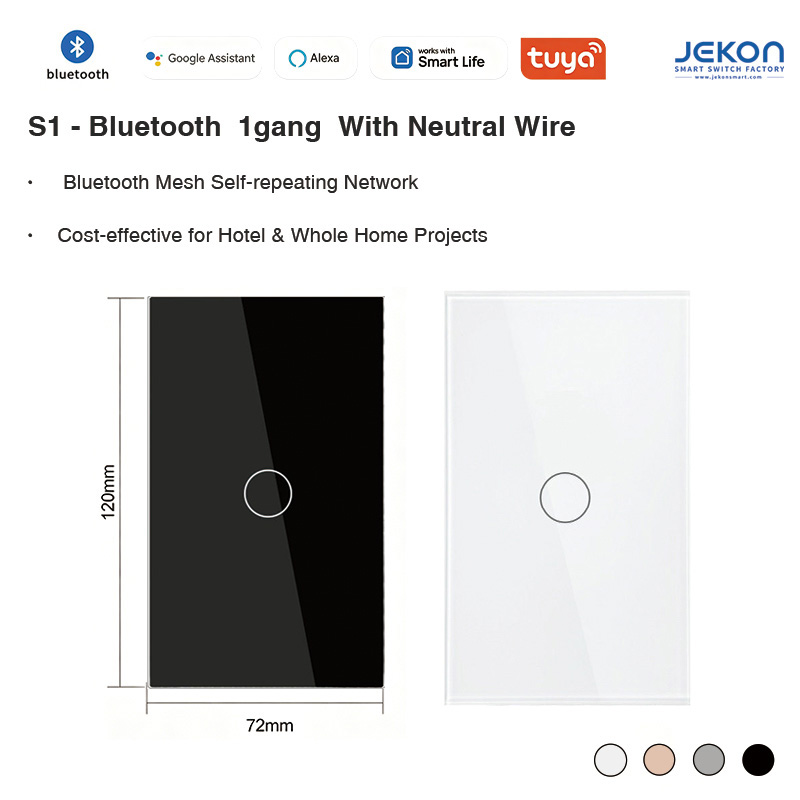

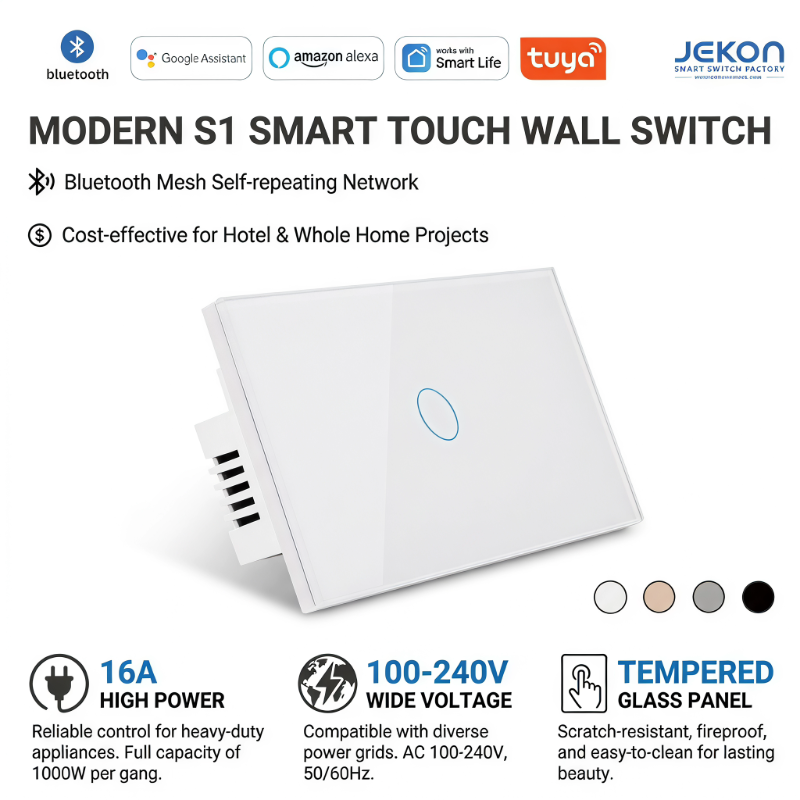

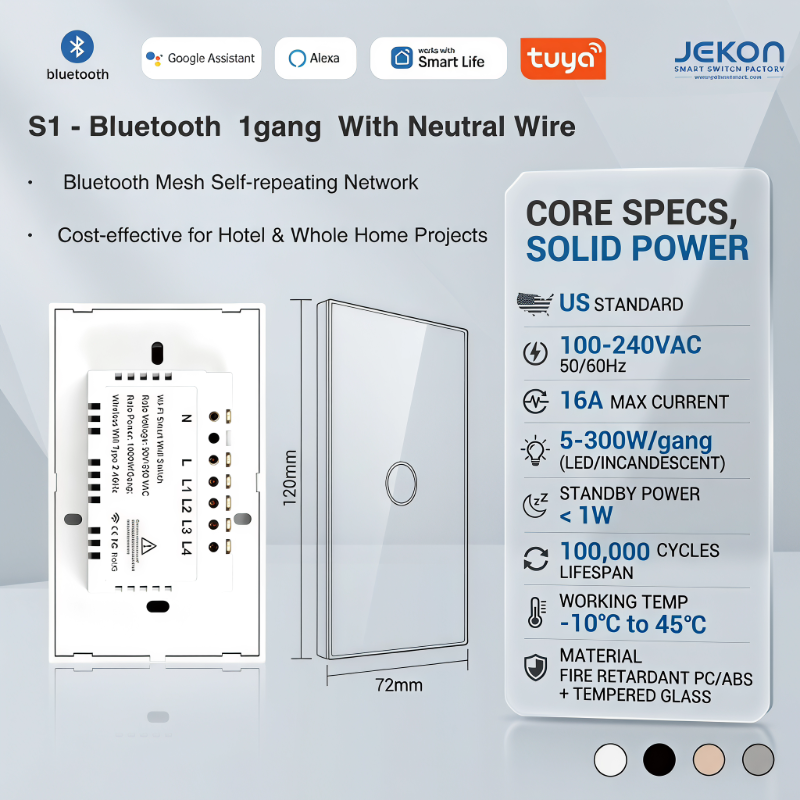

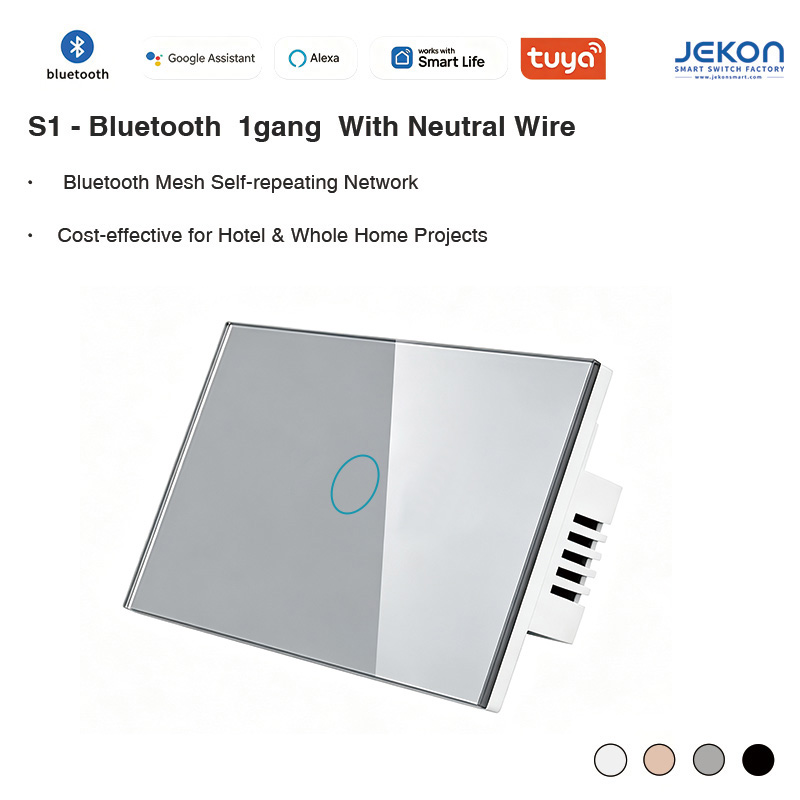

| Model | S1 Bluetooth Mesh 1-Gang Smart Touch Switch (Neutral Wire Version) |
| Wireless Protocol | Tuya Bluetooth Mesh Self-repeating Network |
| Input Voltage | AC 100V-240V, 50/60Hz Wide Voltage |
| Max Rated Current | 16A per gang |
| Load Power Range | 5W ~ 300W per gang, support LED / incandescent lamps |
| Wiring Requirement | Neutral wire + Live wire (Neutral mandatory) |
| Standby Power | Less than 1W low power consumption |
| Mechanical Lifespan | Over 100,000 switching cycles |
| Working Temperature | -10℃ ~ +45℃ |
| Panel Material | Scratch resistant tempered glass touch panel |
| Back Housing | V0 flame retardant PC+ABS plastic |

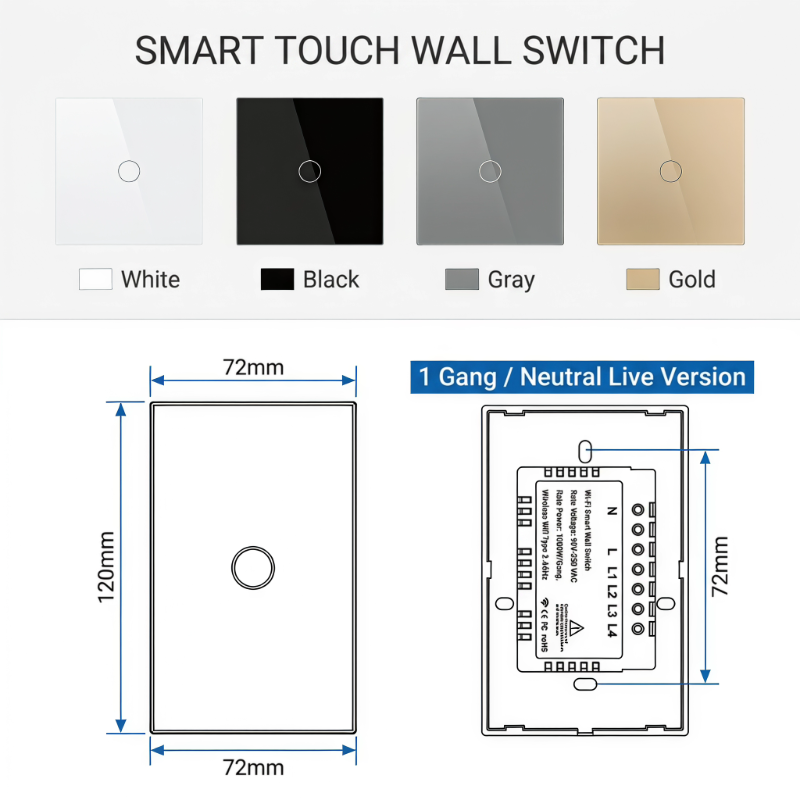

| Standard Size | US standard wall switch: 120mm × 72mm |
| Supported Voice Assistants | Amazon Alexa, Google Assistant |
| Control Modes | Capacitive touch, Smart Life APP remote, voice control, timing schedule |
| Core Advantages | Bluetooth mesh signal relay, stable group linkage, cost-effective for hotel & whole house smart engineering projects |

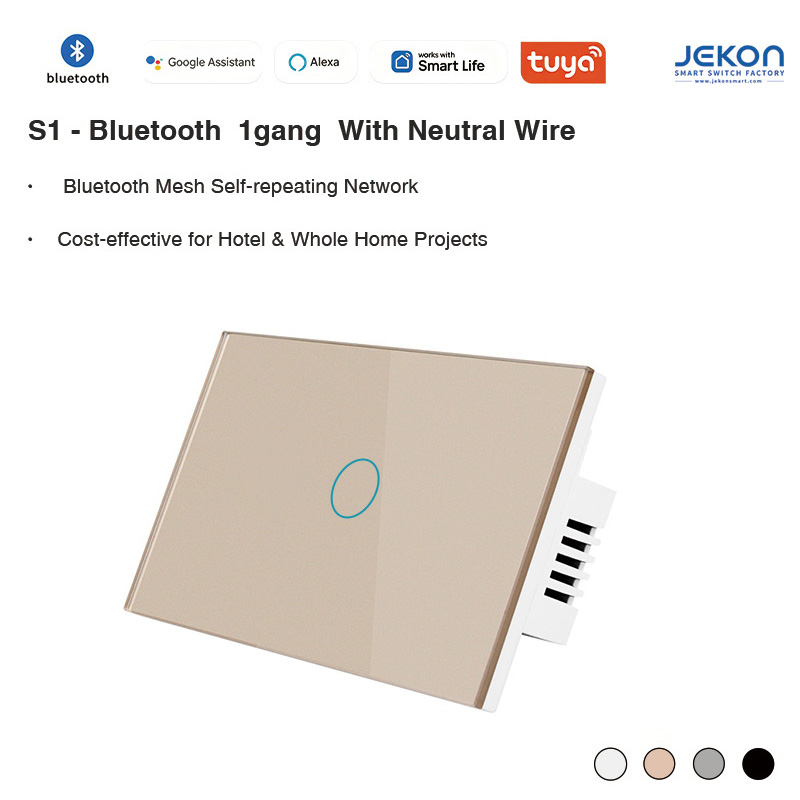

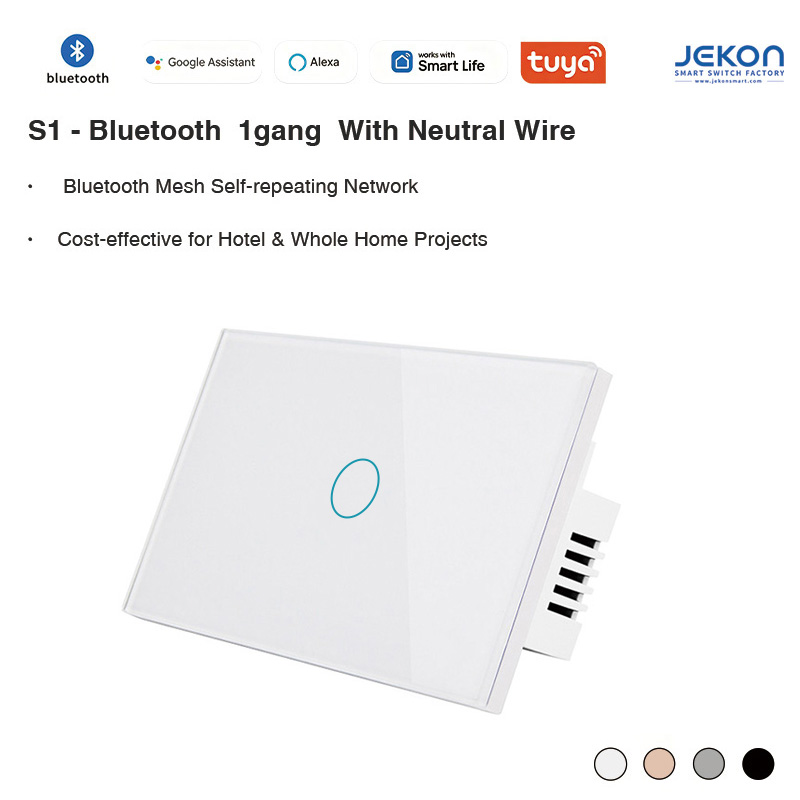

| Optional Colors | White, Black, Grey, Champagne Gold |
| Smart Functions | Timing task, scene linkage, device sharing, power-off status memory |
| Installation | Embedded wall mount, compatible with US standard junction box |
| Certification | CE, RoHS compliant, OEM logo & customized packaging available |
