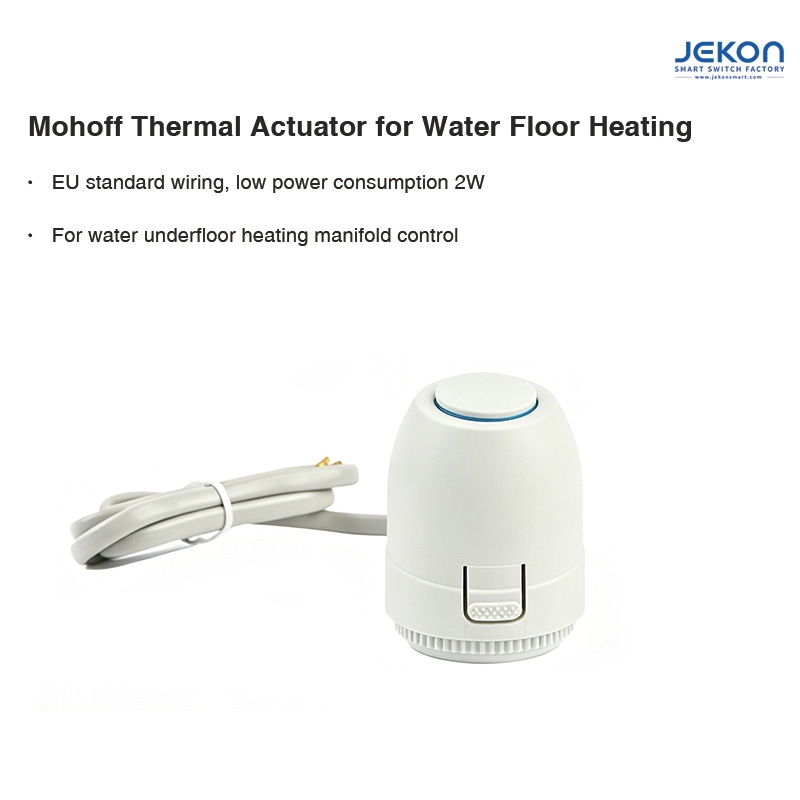

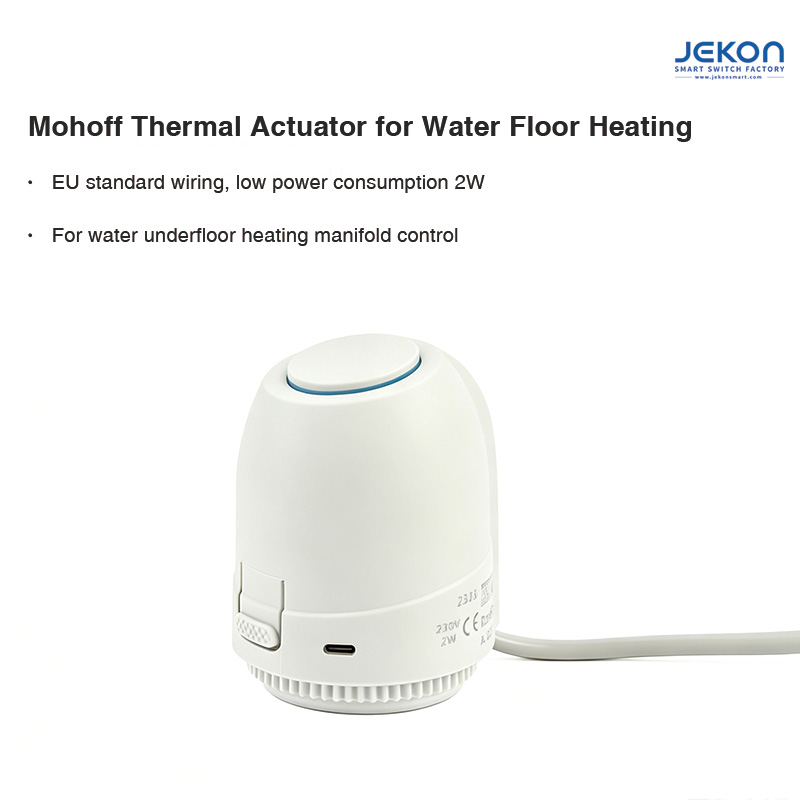

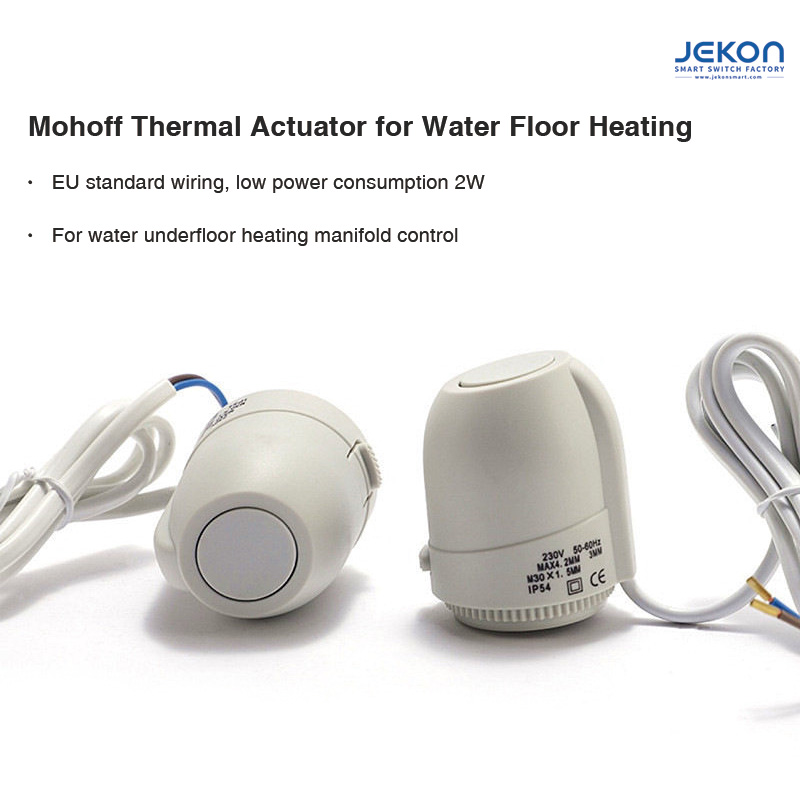

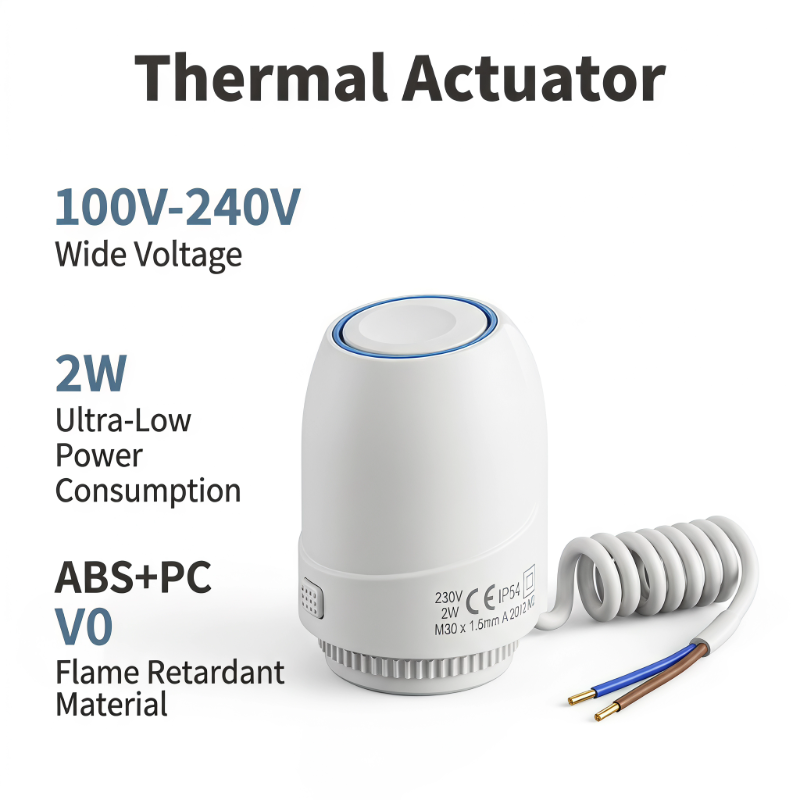

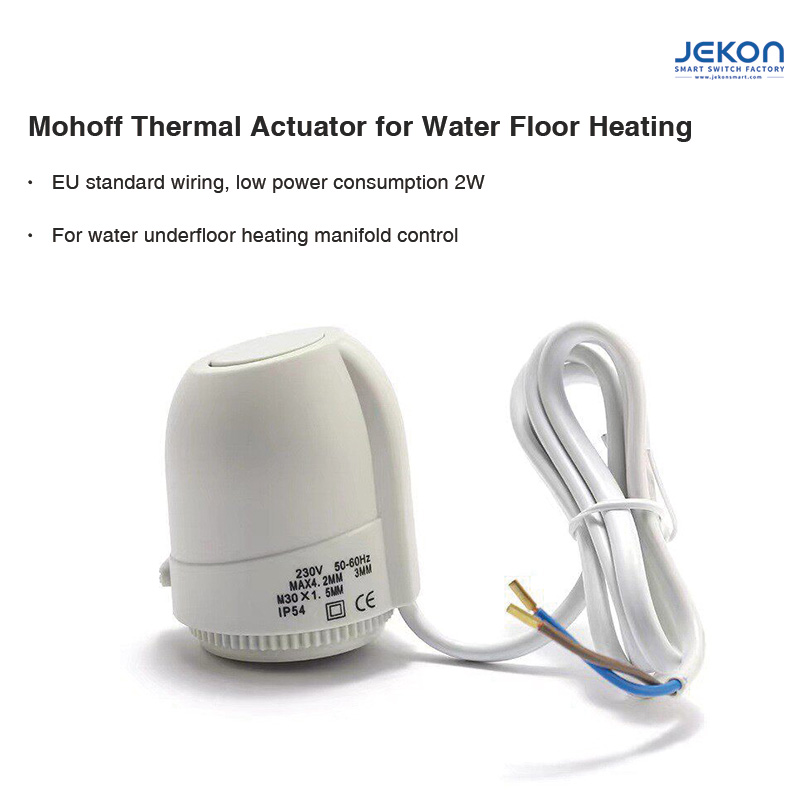

Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 2
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 3
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 4
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 5
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 6
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 7
Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring - Image 8

Mohoff 3703-NC Thermal Actuator Normally Closed 2W AC100-240V IP54 M30*1.5mm Thread ABS+PC V0 Flame Retardant Water Floor Heating Valve Actuator with Blue Indicator Ring EU Standard Wiring

Facebook X-twitter Youtube

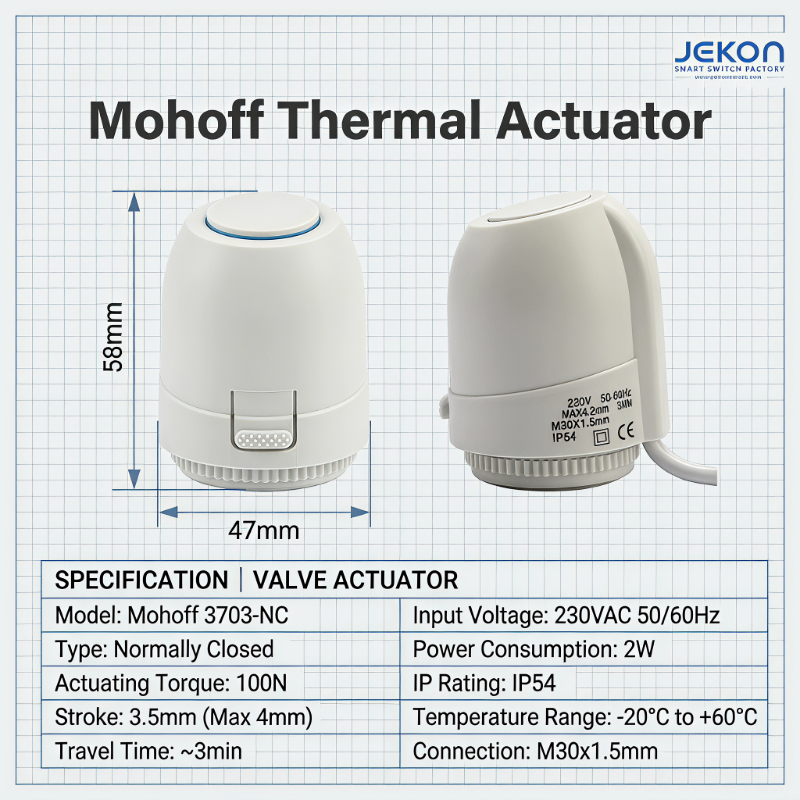

Item Specification Details
Model Mohoff 3703-NC
Valve Type Normally Closed (NC)
Input Voltage AC 100V-240V, 50/60Hz
Rated Power 2W Ultra Low Power Consumption
Thread Size M30×1.5mm universal manifold interface
Protection Grade IP54 Dustproof & Waterproof
Housing Material ABS+PC V0 Flame Retardant Plastic

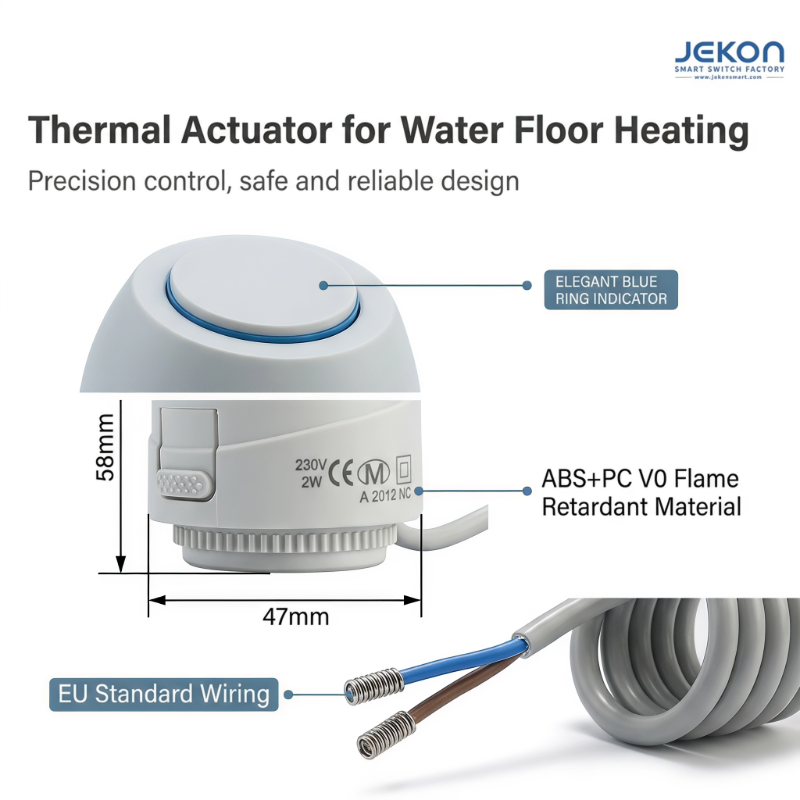

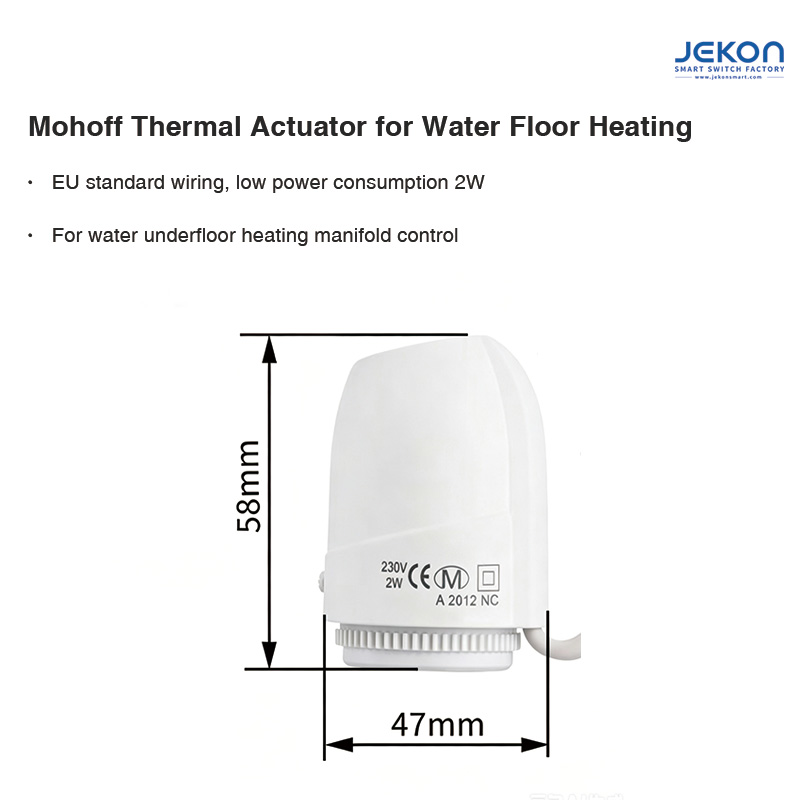

Dimension Height 58mm, Bottom Diameter 47mm
Actuating Torque 100N
Stroke 3.5mm, Max 4mm
Full Travel Time About 3 Minutes
Working Temperature -20℃ ~ +60℃
Wiring Standard EU Standard two-core wire with copper terminals
Feature Blue ring running indicator light, manual override design
Application On-off control for water underfloor heating manifold
Certification CE Certified
Appearance White smooth shell, compact curved design
