| Parameter Item | Detailed Specification |
|---|---|

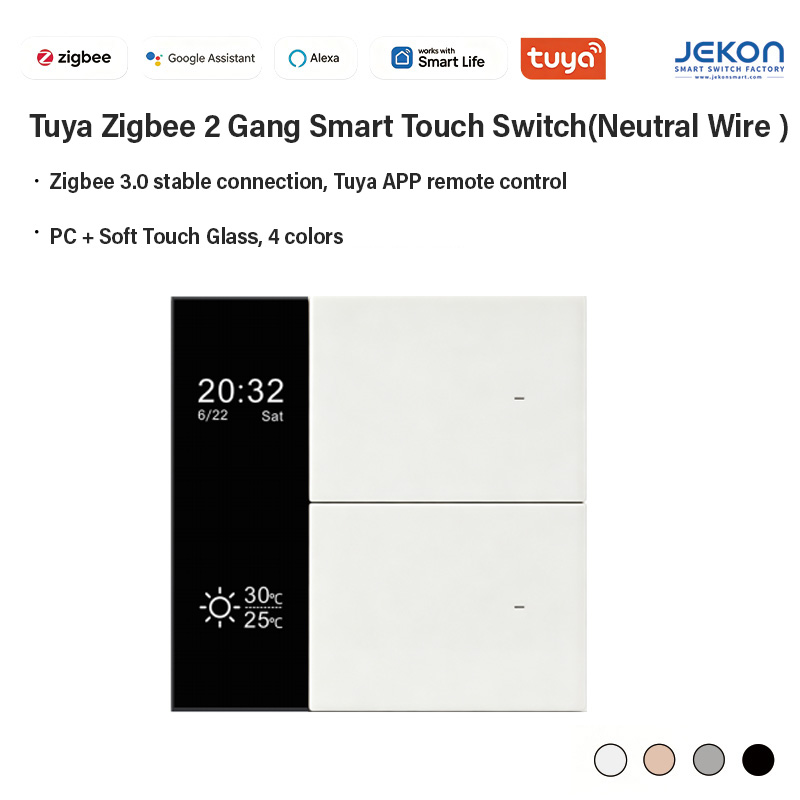

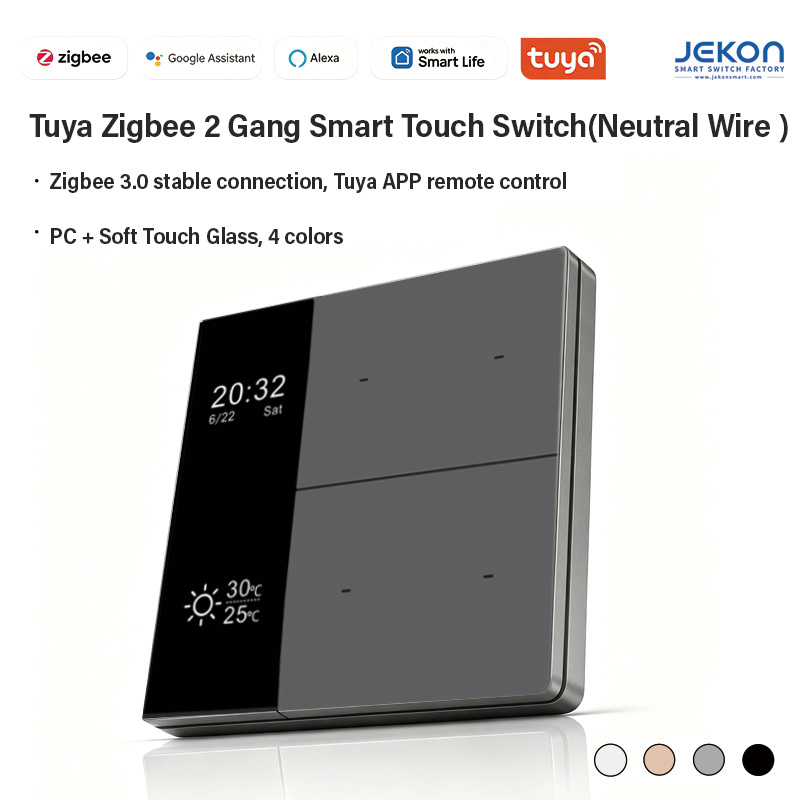

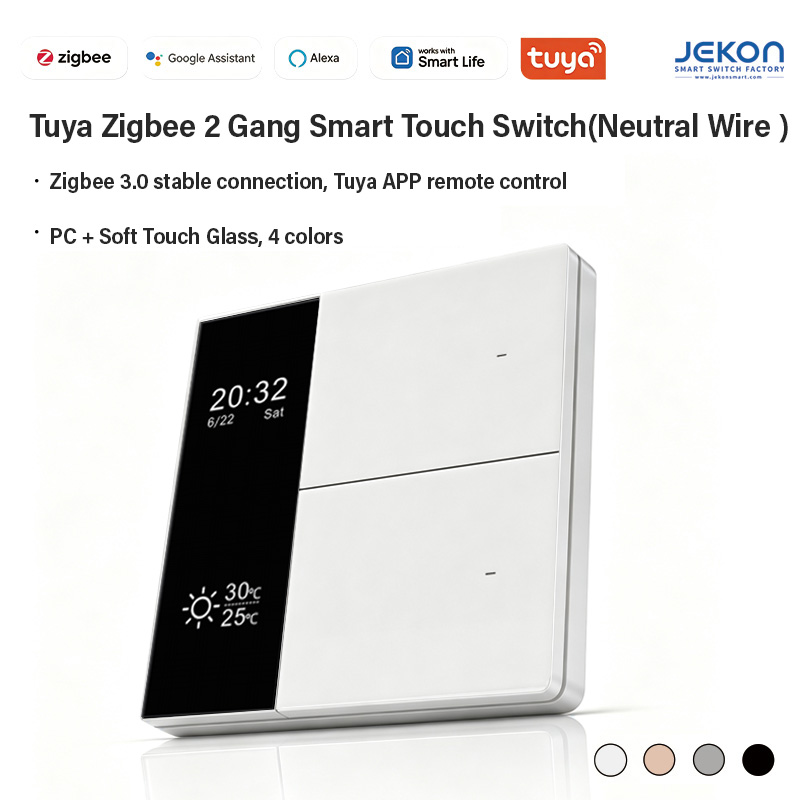

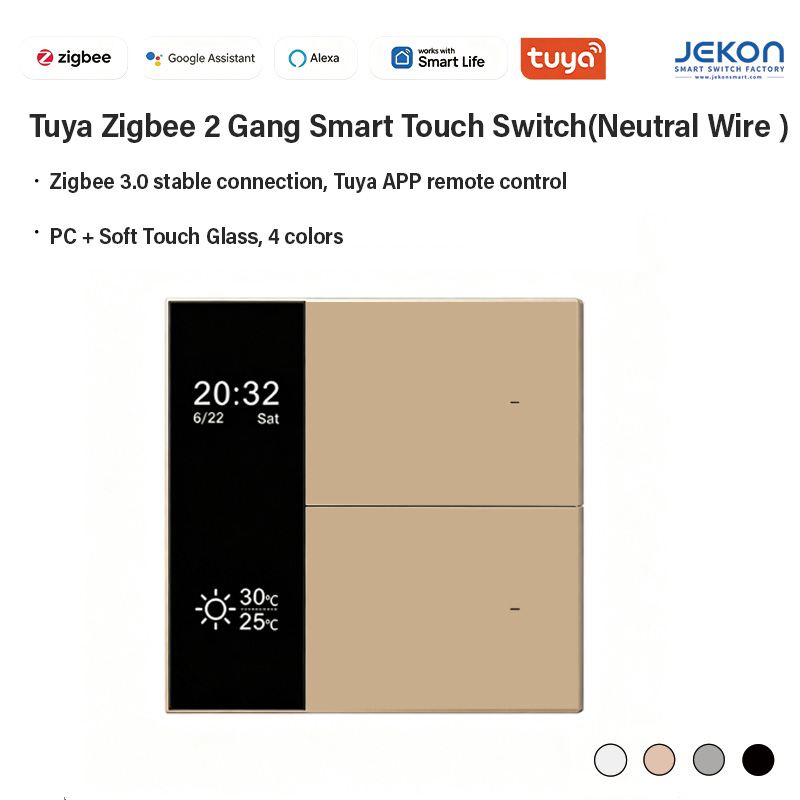

| Model | Zigbee 2-Gang Smart Touch Switch (Neutral Wire, CN 86 Standard) |
| Wireless Protocol | Zigbee 3.0 Self-repeating Mesh Network |

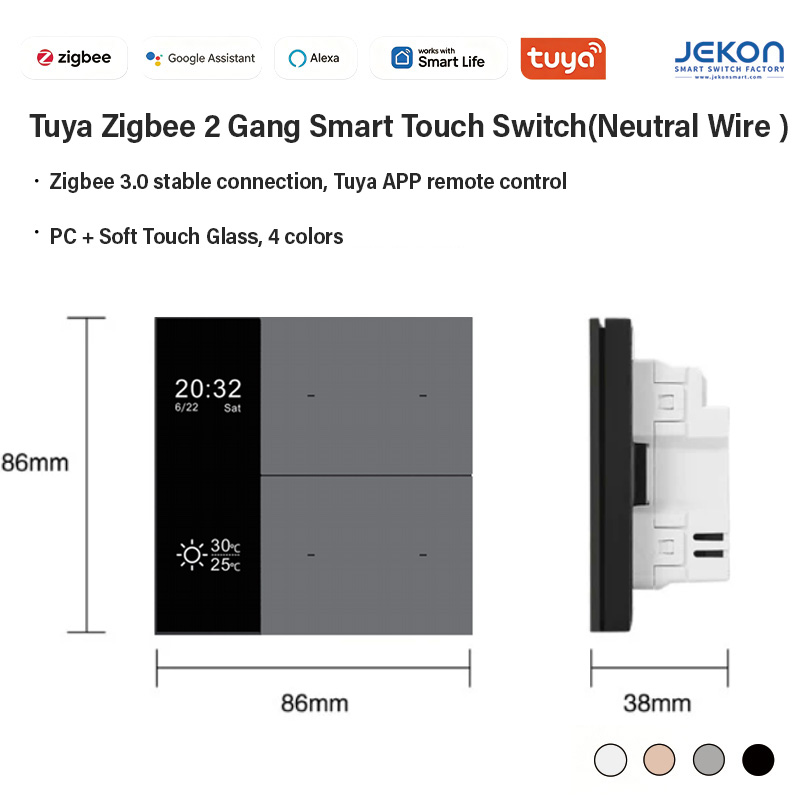

| Mount Standard | Chinese 86 wall box, dimension 86×86×38mm |
| Input Voltage | AC 100V-240V 50/60Hz |
| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |

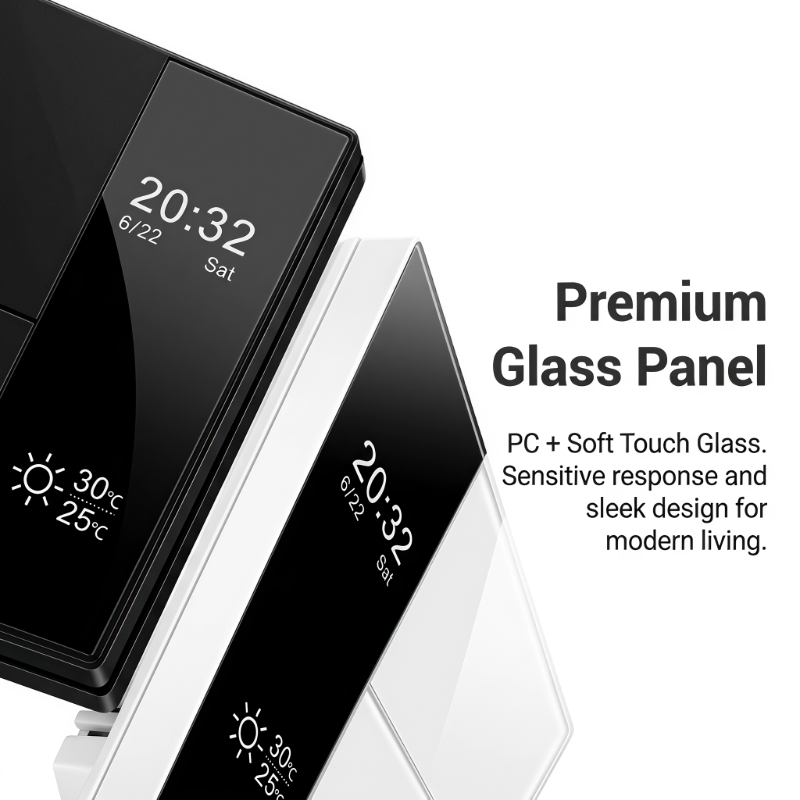

| Panel Material | Soft touch scratch-resistant tempered glass + V0 flame retardant PC frame |
| Display Screen | Built-in LCD screen, real-time display time, date, indoor temperature & humidity |
| Touch Keys | 2 groups capacitive touch buttons, independent dual lighting zone control |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Voice Compatibility | Amazon Alexa, Google Assistant (Zigbee gateway required) |
| Control Modes | Local touch control, mobile APP remote control, voice control, timing schedule, scene linkage, group lighting control |

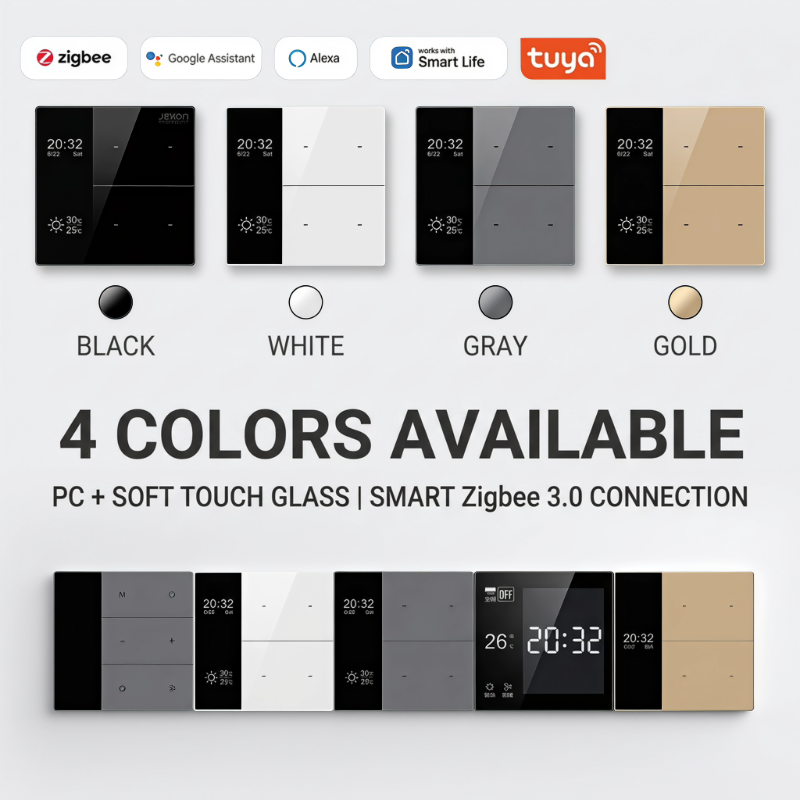

| Optional Colors | Pure White, Champagne Gold, Silver Grey, Matte Black |

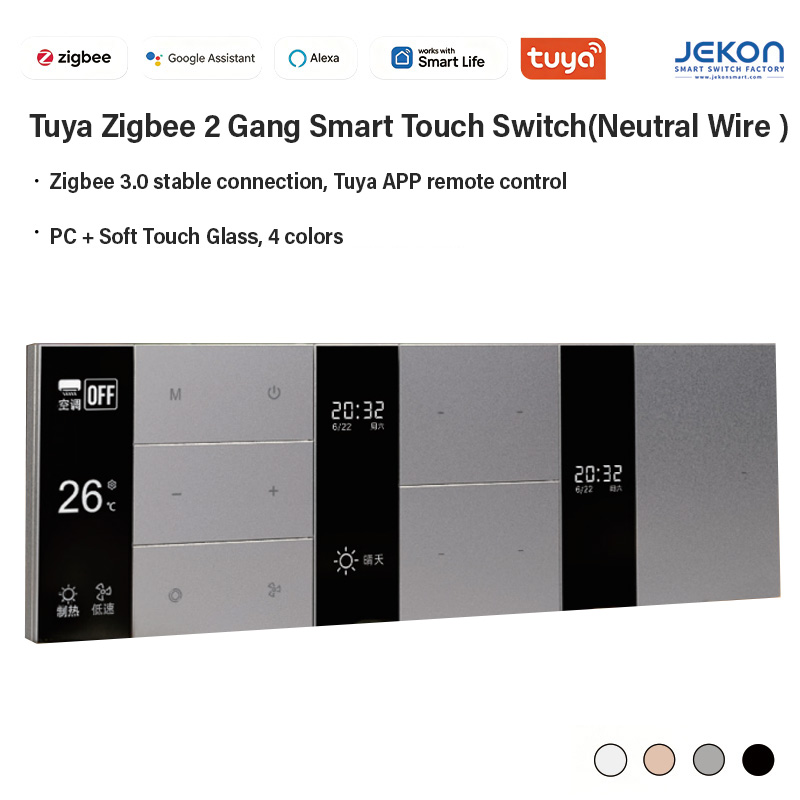

| Core Feature | Modular splicing design, freely match other series smart panels for whole-house wall control |
| Service Life | Over 100,000 touch operations |
| Operating Temp | -20℃ ~ +50℃ |
| Certifications | CE, RoHS compliant |
| Installation | Flush wall mount, compatible with standard Chinese 86 junction box |
| Custom Service | OEM logo, customized packaging and combined panel solutions supported |
