Let’s Connect – Your Trusted Manufacturing Partner
Partner with JEKON ’s fully automated factories and expert team to bring high-quality switches, lighting, and smart solutions to markets worldwide. From OEM support to consistent supply, we’re ready to power your success.
| Item | Specification |
|---|---|

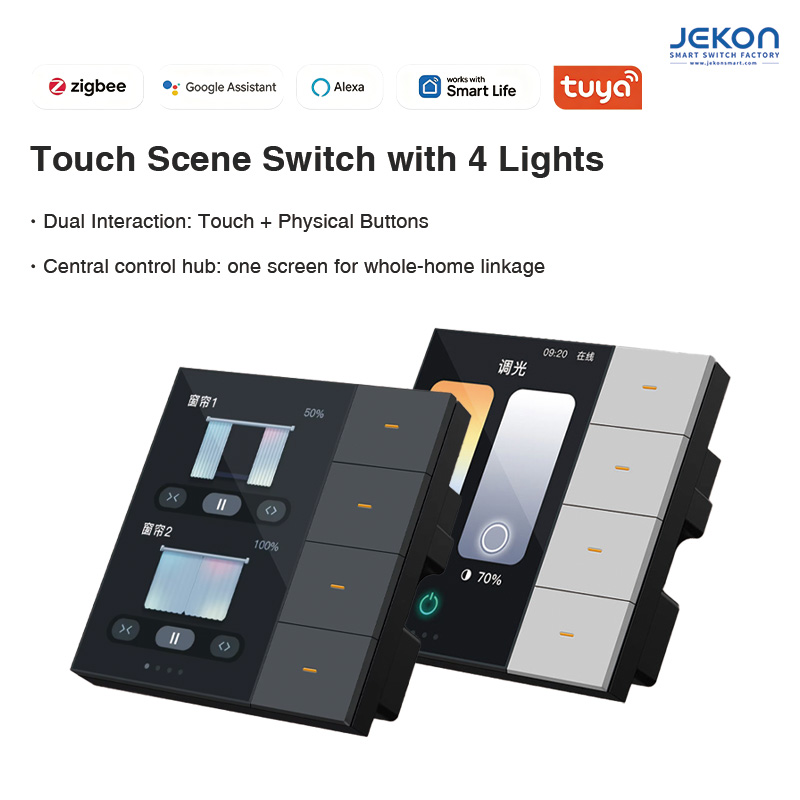

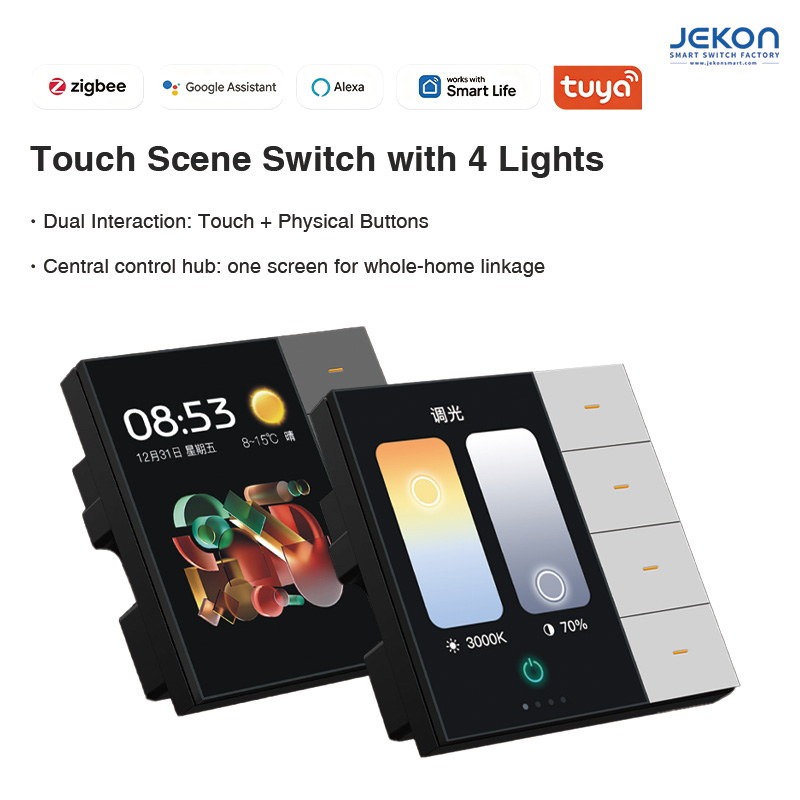

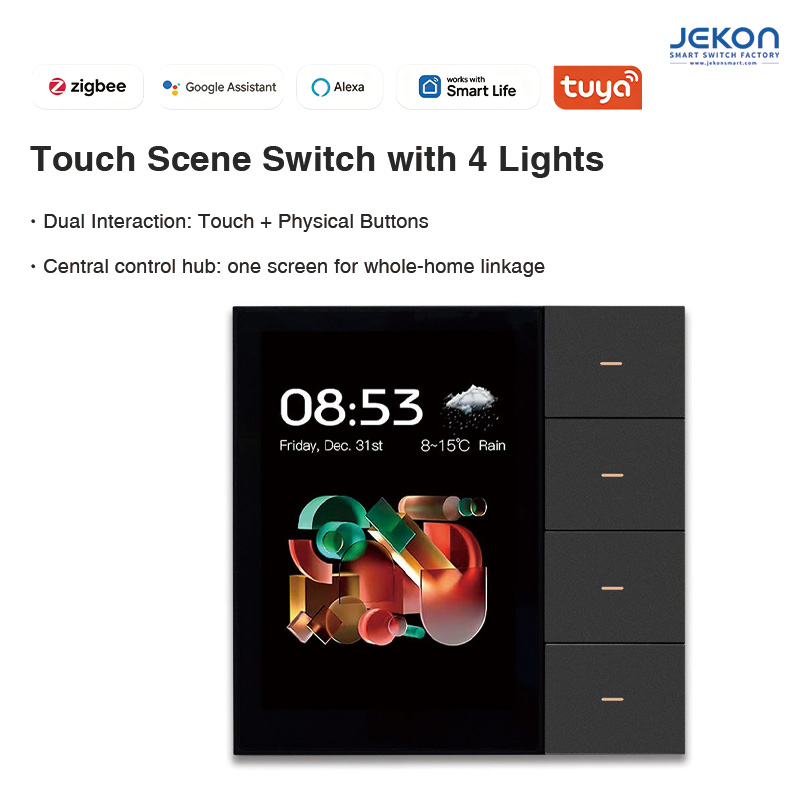

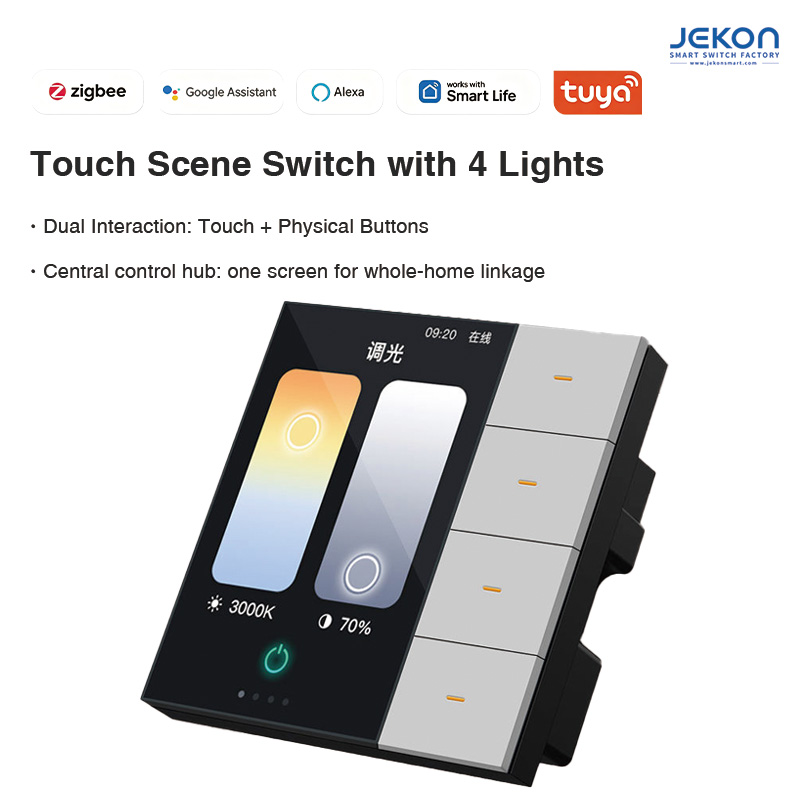

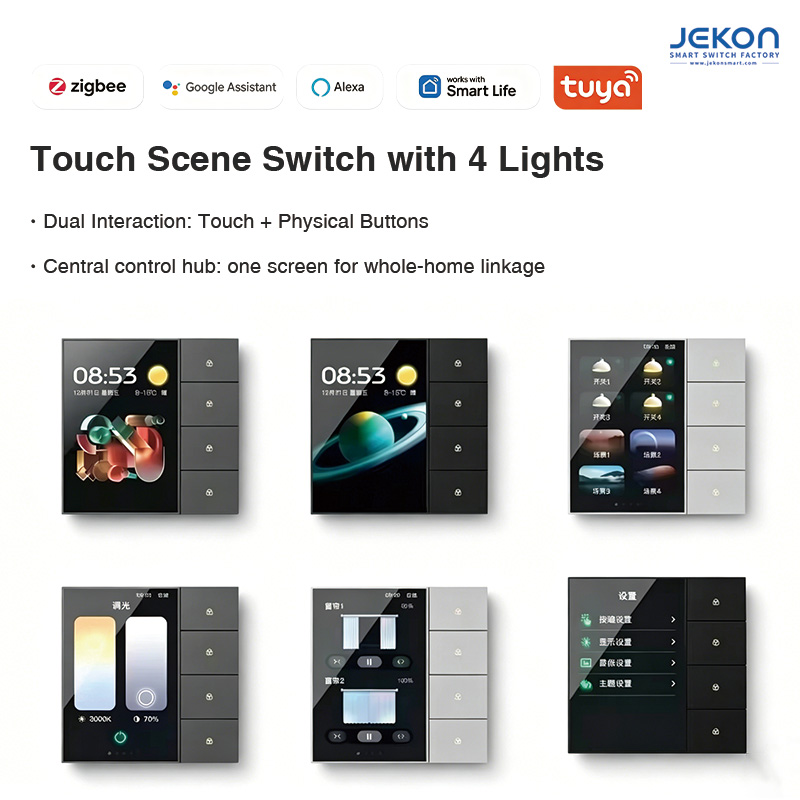

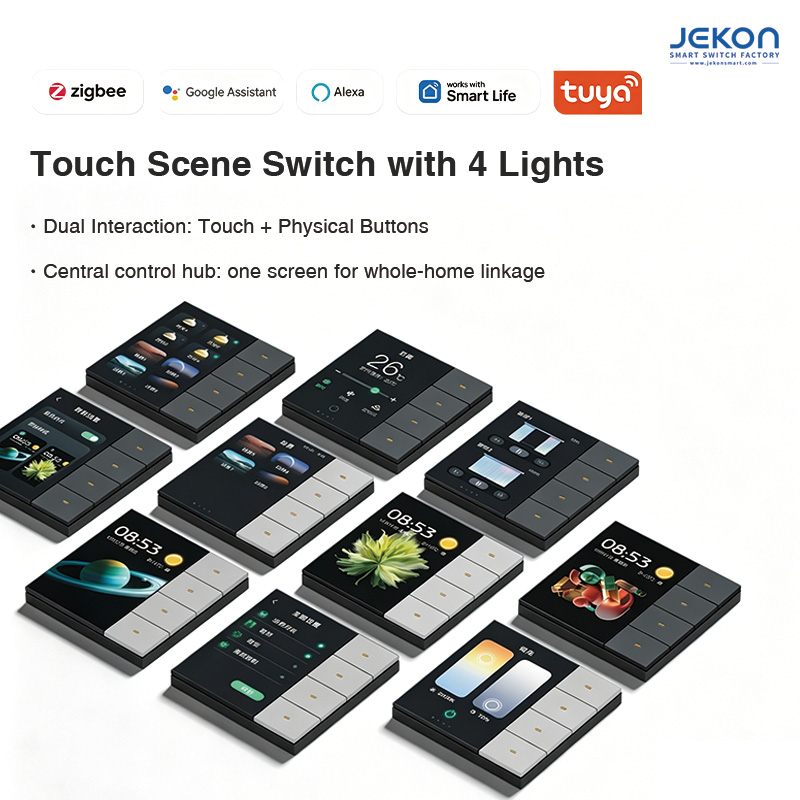

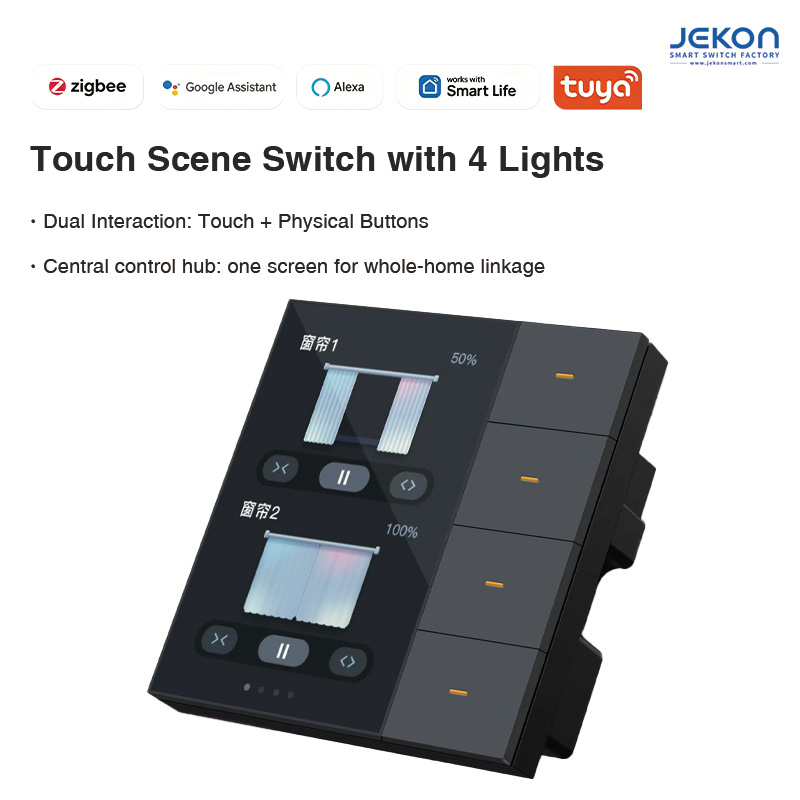

| Product Name | Tuya Zigbee Smart Touch Scene Switch with 4 Lights |
| Control Method | Dual interaction: touch screen + physical buttons |
| Wireless Protocol | Zigbee 3.0 |
| Compatible Platforms | Tuya Smart Life App, Alexa, Google Assistant |
| Display Screen | Color touch screen, supports custom UI, time/weather display |
| Control Functions | 4 physical light control buttons, scene mode control, curtain control, dimming control |
| Rated Voltage | AC 100-240V, 50/60Hz |
| Max Load per Channel | 3A resistive load |
| Max Total Load | 4 channels: 12A (3×4) |
| Panel Material | Tempered glass touch panel with ABS/PC frame |
| Available Colors | Black / Grey / White |
| Special Features | Whole-home smart linkage, multi-scene customization, device status display, timer function |
| Certifications | CE, FCC, RoHS compliant |

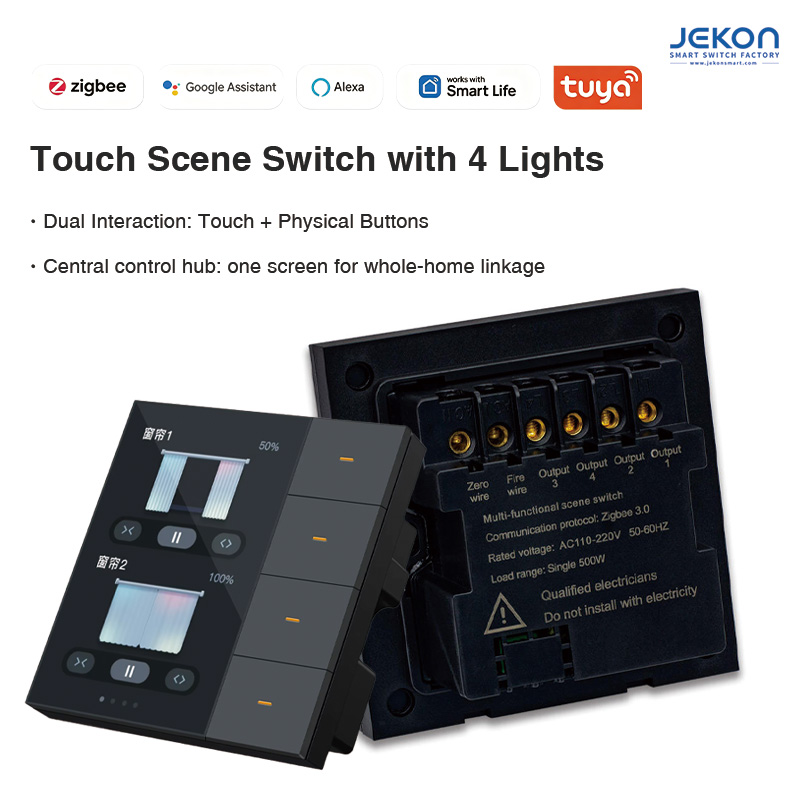

| Installation | Fits standard 86-type wall boxes, flush mount |
| Operating Temperature | -10℃ ~ +45℃ |
| Humidity Resistance | ≤80% RH, non-condensing |
| Net Weight (per unit) | Approx. 180-220g |
| Gross Weight (per unit) | Approx. 200-240g |
| Packaging | Customizable carton packaging |
| MOQ | Negotiable |
