Let’s Connect – Your Trusted Manufacturing Partner
Partner with JEKON ’s fully automated factories and expert team to bring high-quality switches, lighting, and smart solutions to markets worldwide. From OEM support to consistent supply, we’re ready to power your success.
| Parameter Item | Detailed Specification |
|---|---|

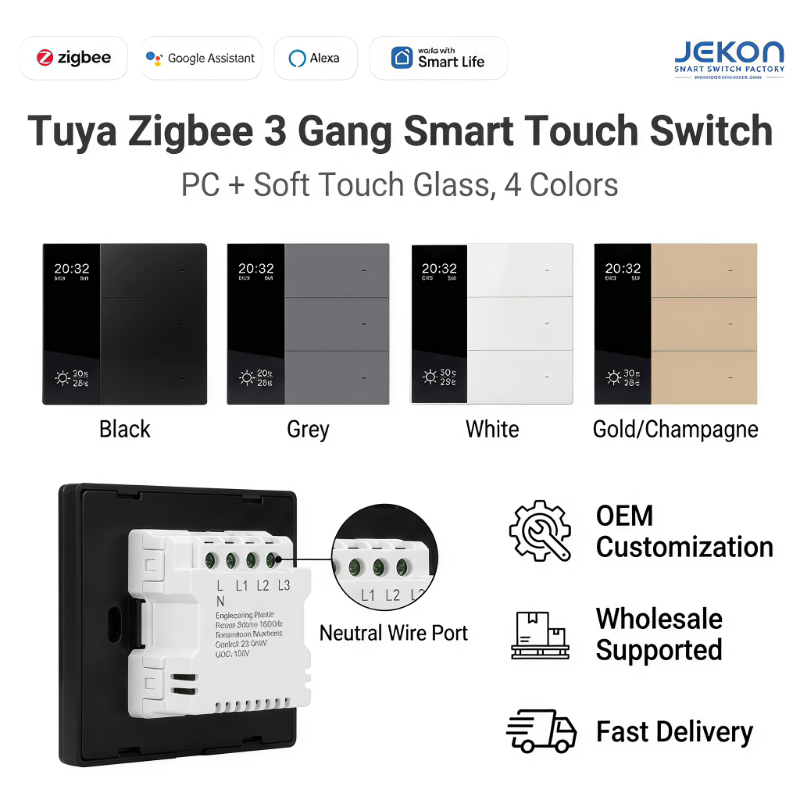

| Model | Zigbee 3-Gang Smart Touch Switch (Neutral Wire, CN 86 Standard) |
| Wireless Protocol | Zigbee 3.0 Self-repeating Mesh Network |

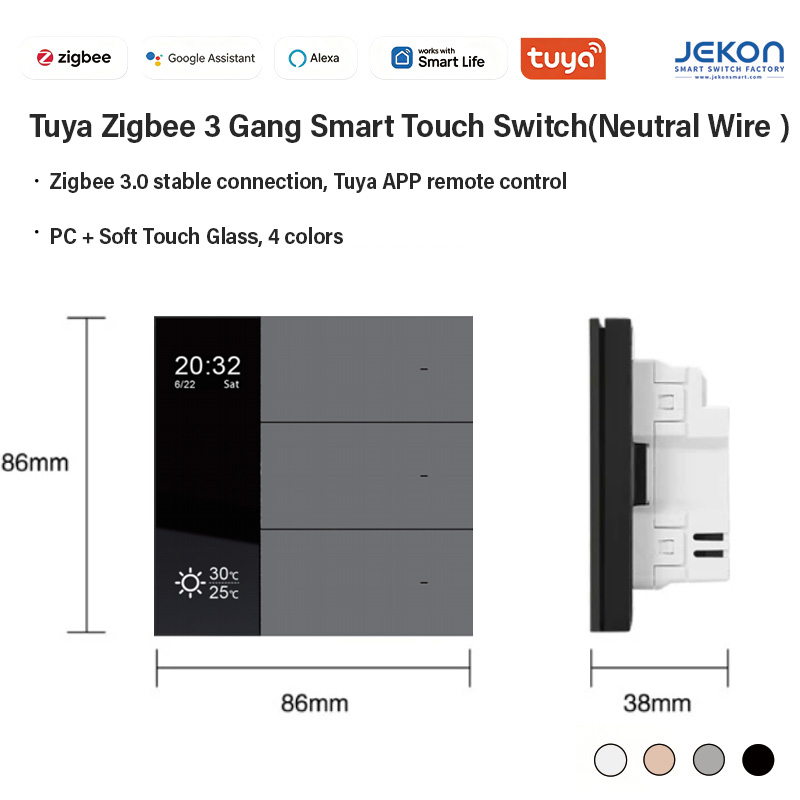

| Installation Standard | Chinese 86 wall box, dimension 86×86×38mm |
| Input Voltage | AC 100V-240V 50/60Hz Wide Universal Voltage |
| Wiring Requirement | Neutral wire + Live wire mandatory (Neutral Live Type) |
| Panel Material | Soft scratch-resistant tempered glass + V0 flame retardant PC base |

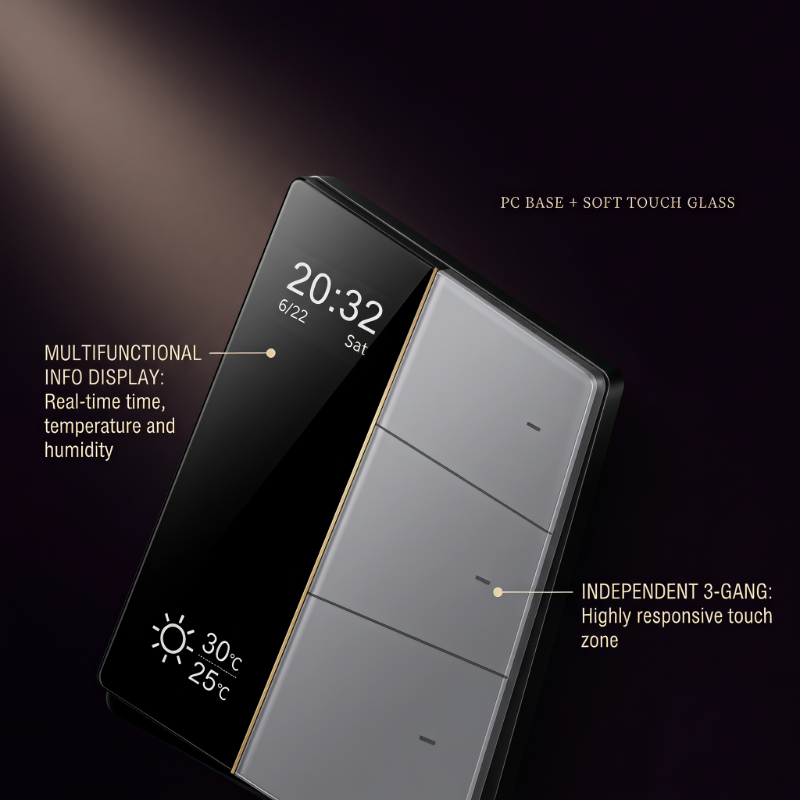

| Display Function | Built-in LCD multifunctional screen, real-time display time, week, date, indoor temperature & humidity |
| Touch Keys | 3 independent capacitive sensitive touch zones, separate control for three lighting circuits |
| Supported APP | Tuya Smart / Smart Life Mobile APP |
| Compatible Voice Assistants | Amazon Alexa, Google Assistant (Zigbee gateway required) |
| Control Modes | Local touch control, mobile APP remote control, voice control, timing task, scene linkage, group lighting control |

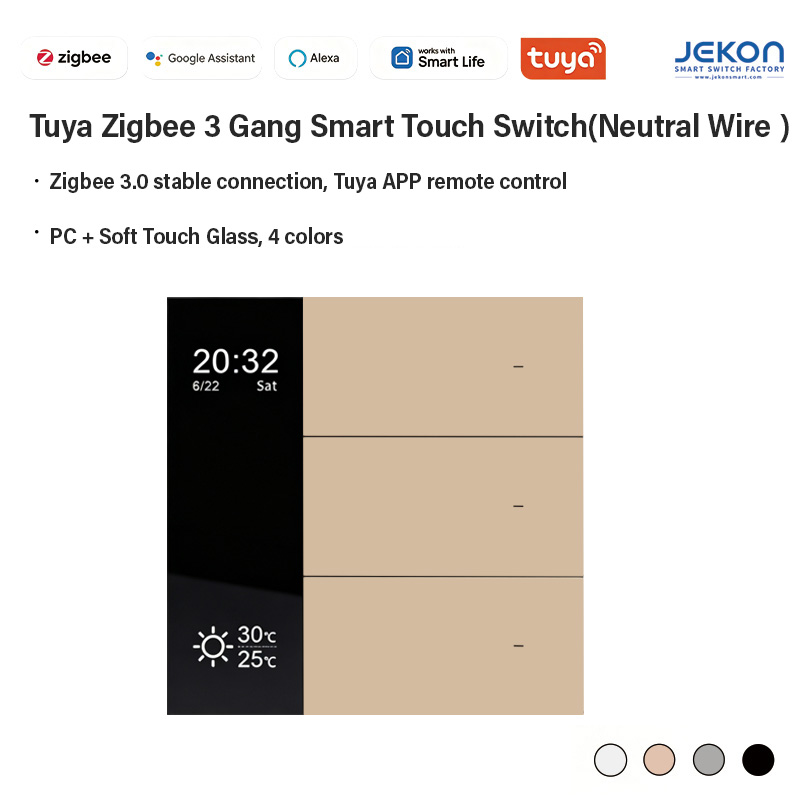

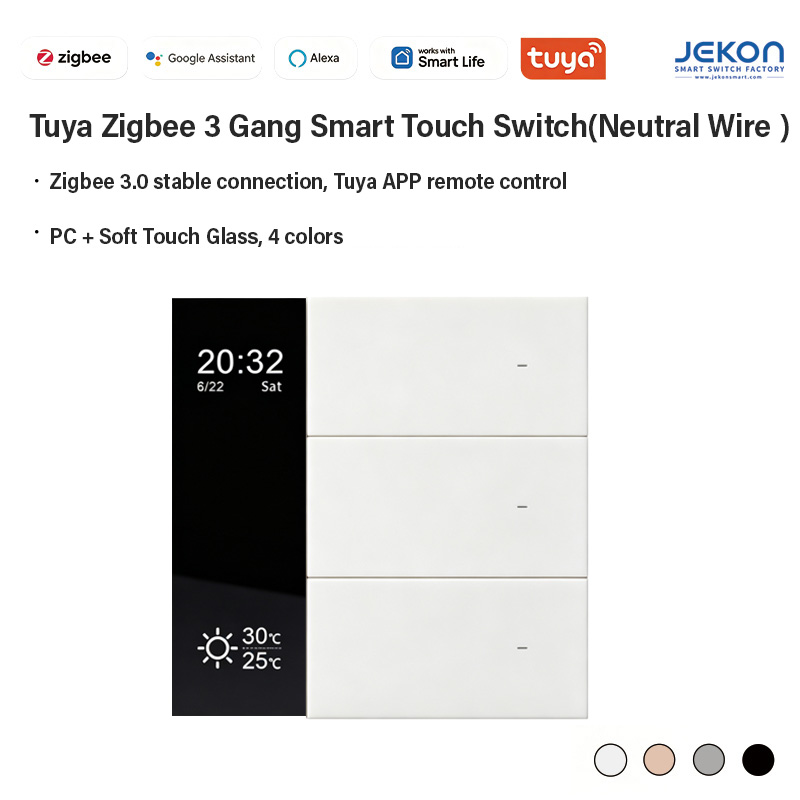

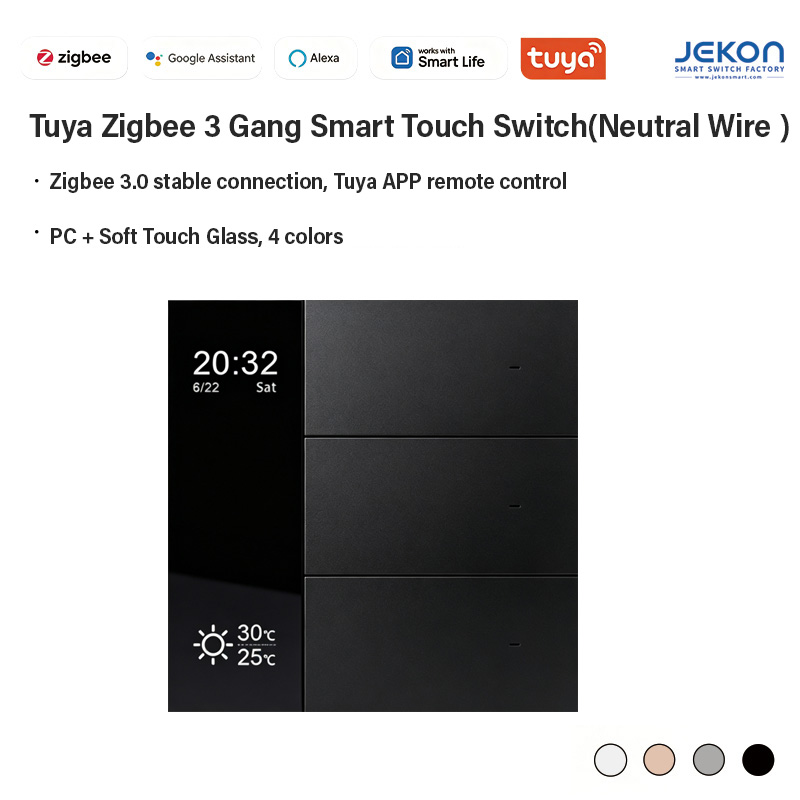

| Optional Colors | Pure White, Champagne Gold, Space Grey, Obsidian Black |

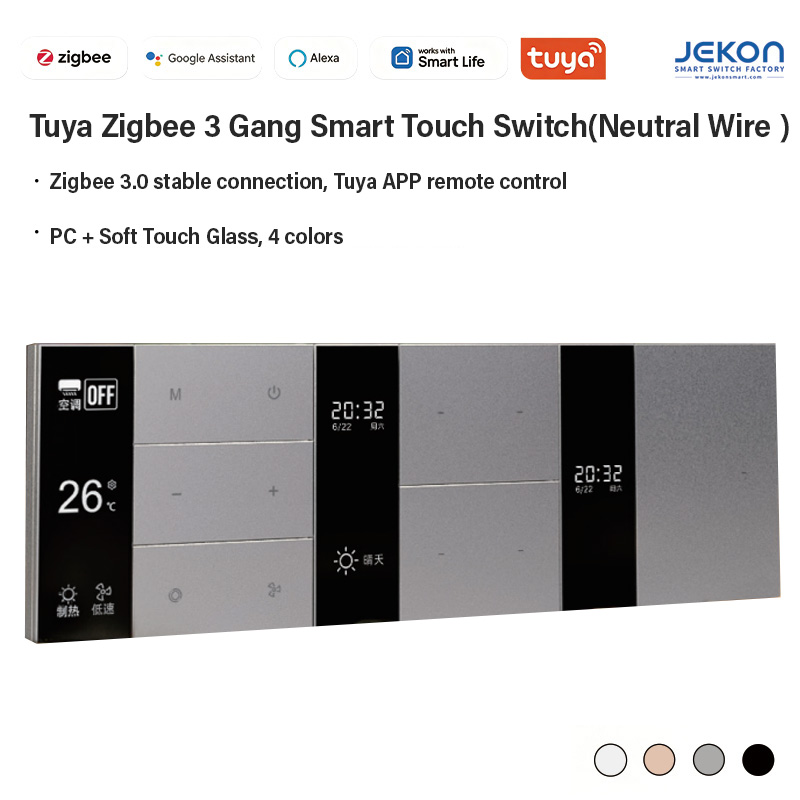

| Core Advantage | Modular splicing design, freely combine with other series panels to customize whole-house smart wall control panel |
| Mechanical Lifespan | Over 100,000 touch operations |
| Operating Temperature | -20℃ ~ +50℃ |
| Safety Certifications | CE, RoHS compliant |
| Installation Method | Flush embedded wall mount, match standard Chinese 86 junction box |
| Custom Service | OEM custom logo, customized packaging, bulk wholesale support & fast delivery |
