| Item | Specification |
|---|---|

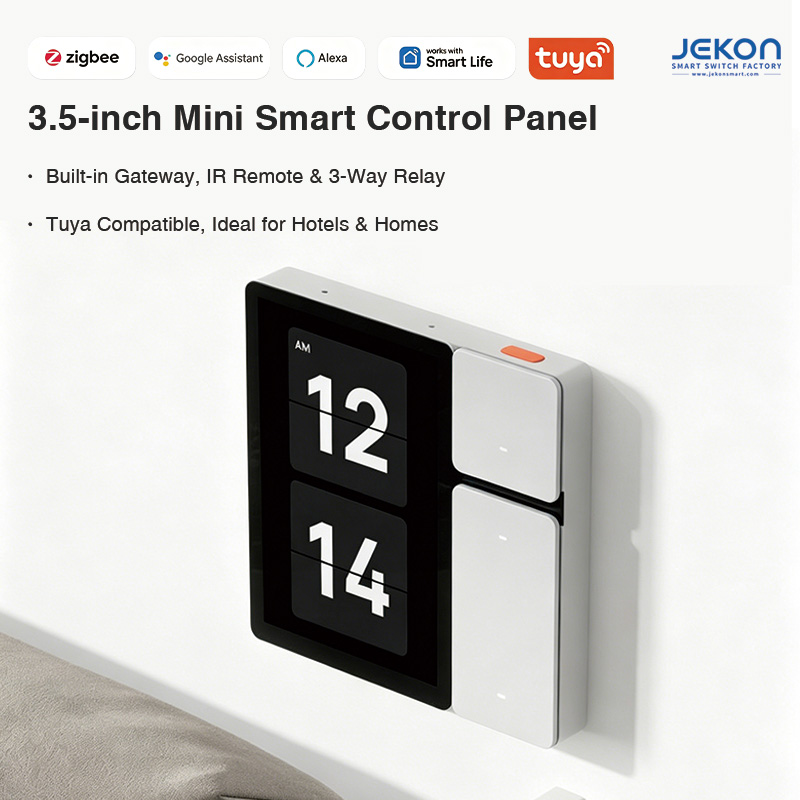

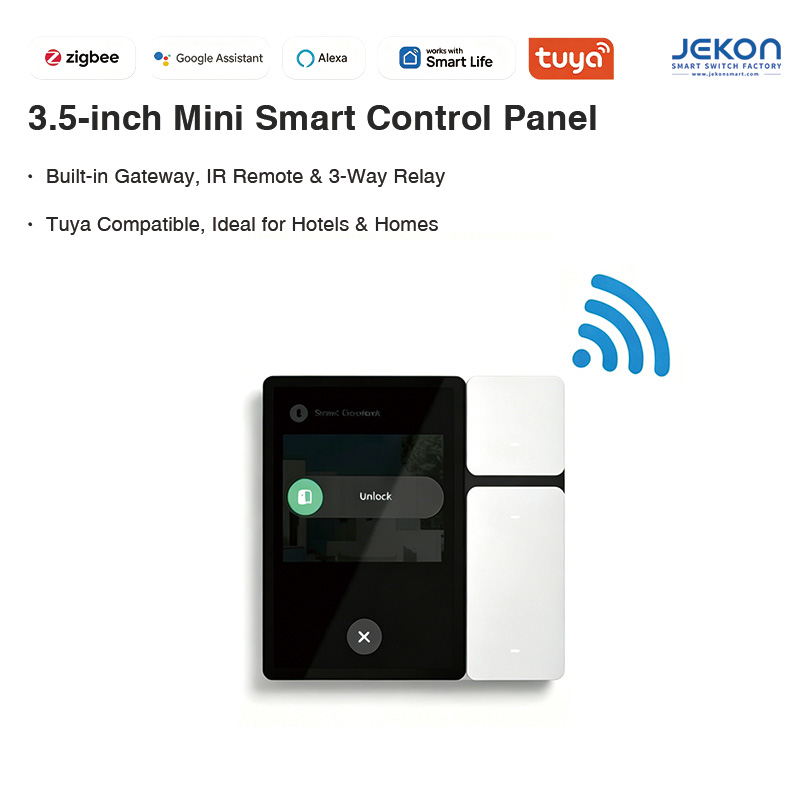

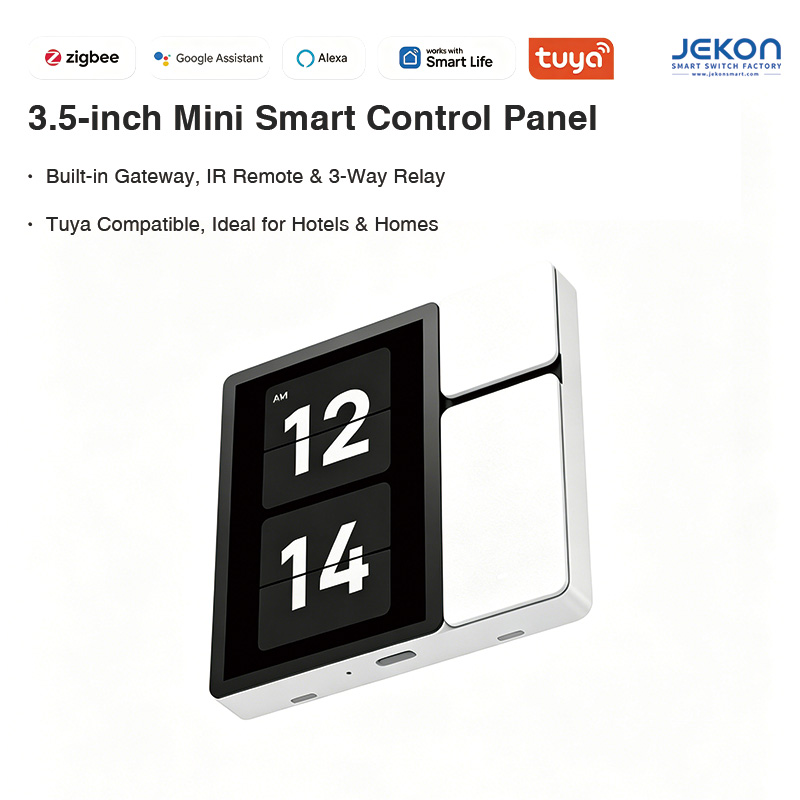

| Product Name | 3.5-inch Tuya Zigbee Smart Control Panel |
| Connectivity | Zigbee (built-in gateway), compatible with Tuya Smart Life App |
| Voice Control | Works with Alexa, Google Assistant |
| Screen Size | 3.5-inch touch screen |
| Relay Output | 3-way relay (supports 3 independent light switches) |

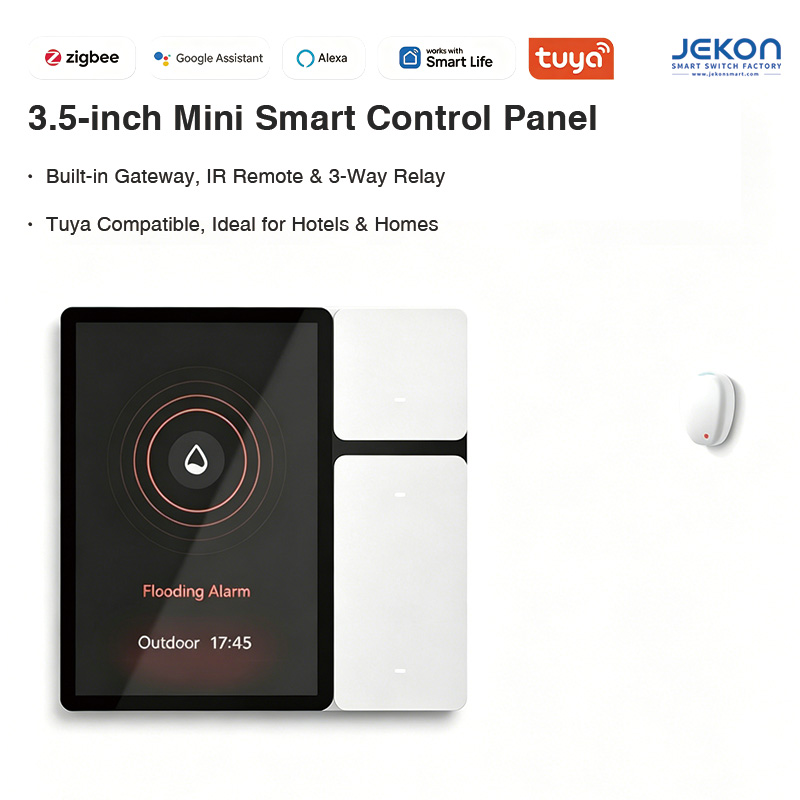

| Built-in Functions | Zigbee gateway, IR remote control (for air conditioners/TVs), scene control, sensor alarm display |
| Installation Type | Standard 86-type wall-mounted installation |
| Power Supply | AC 100-240V, 50/60Hz |
| Panel Material | Tempered glass touch screen + ABS housing |
| Features | All-in-one smart control hub, supports scene modes (leave/home), weather/time display, multi-device control, hotel/home automation |
| Certifications | CE, RoHS compliant |

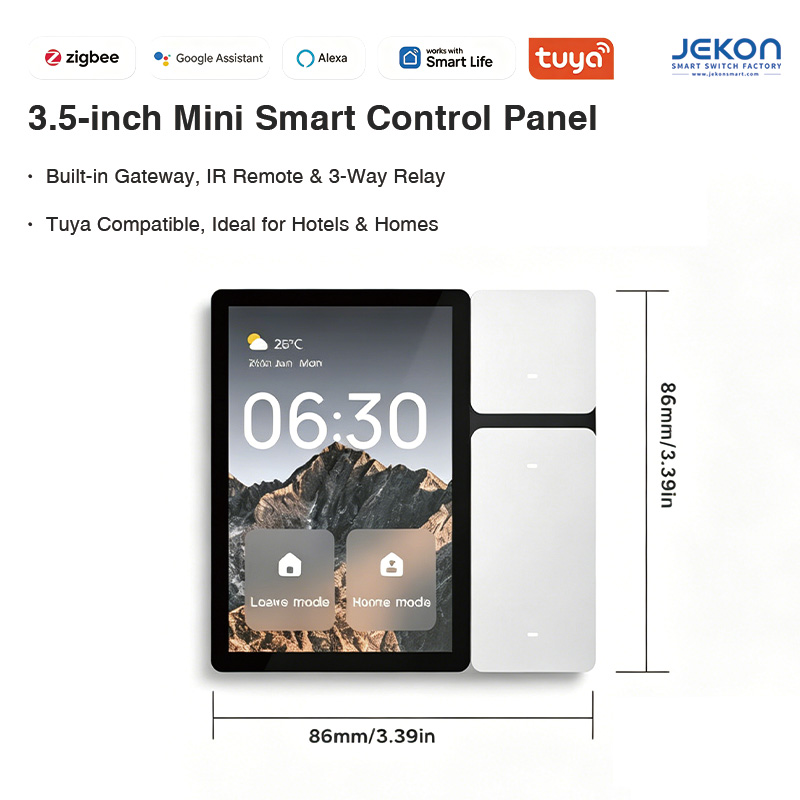

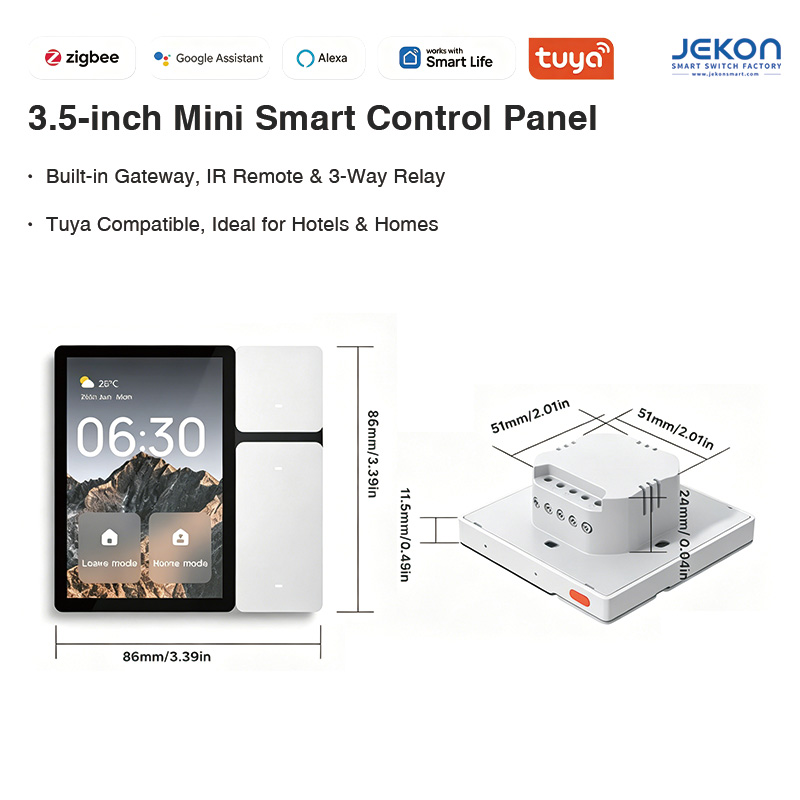

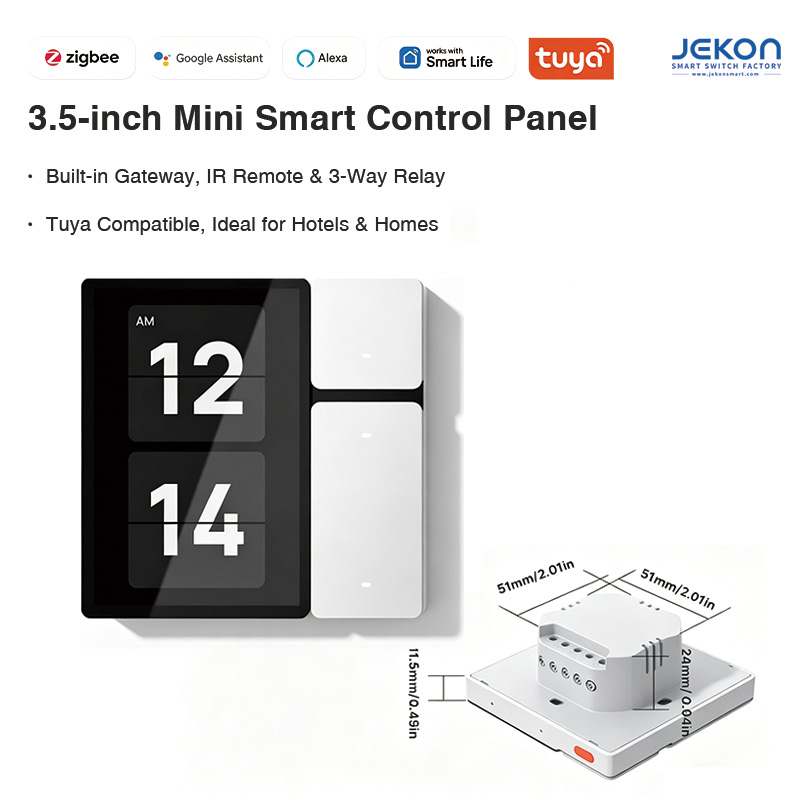

| Dimensions | 86mm × 86mm × 24mm (depth) |
| Net Weight (per unit) | Approx. 150-200g |
| Gross Weight (per unit) | Approx. 200-250g |
| Packaging | Customizable carton packaging (includes panel, user manual, mounting hardware) |
| MOQ | Negotiable |
