| Item | Specification |
|---|---|

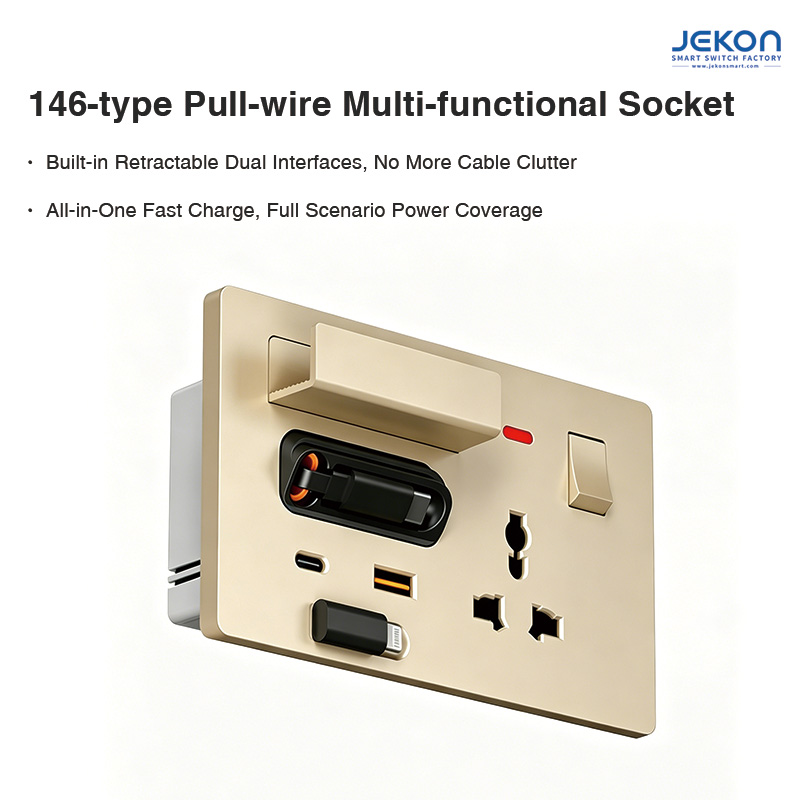

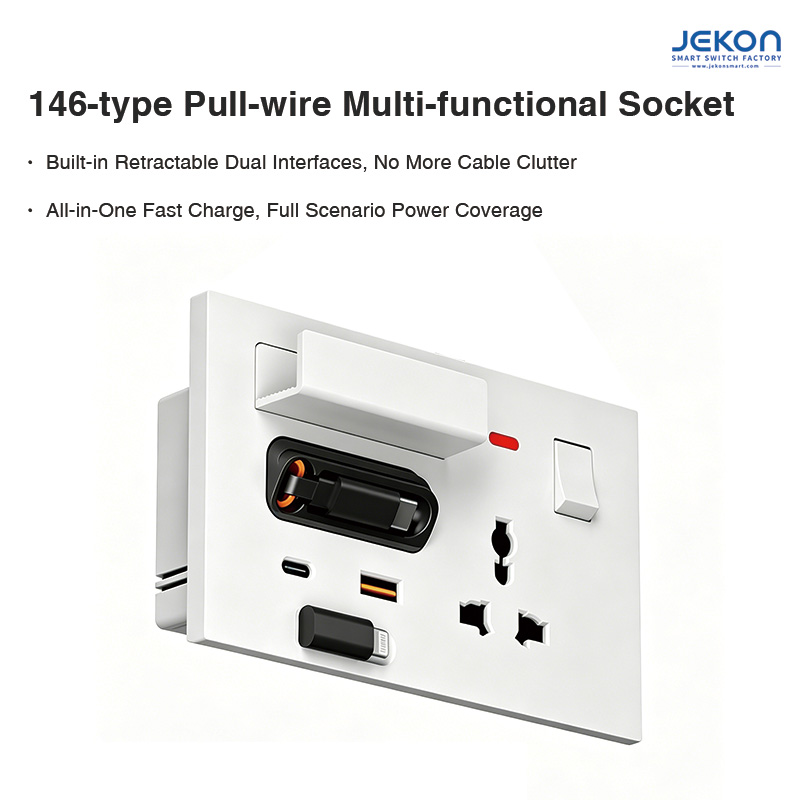

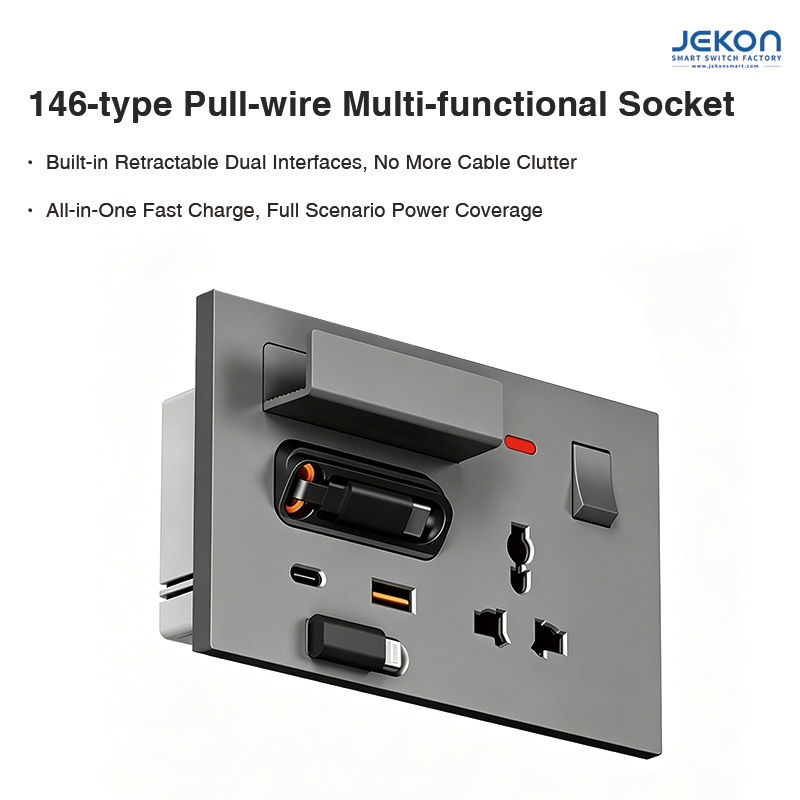

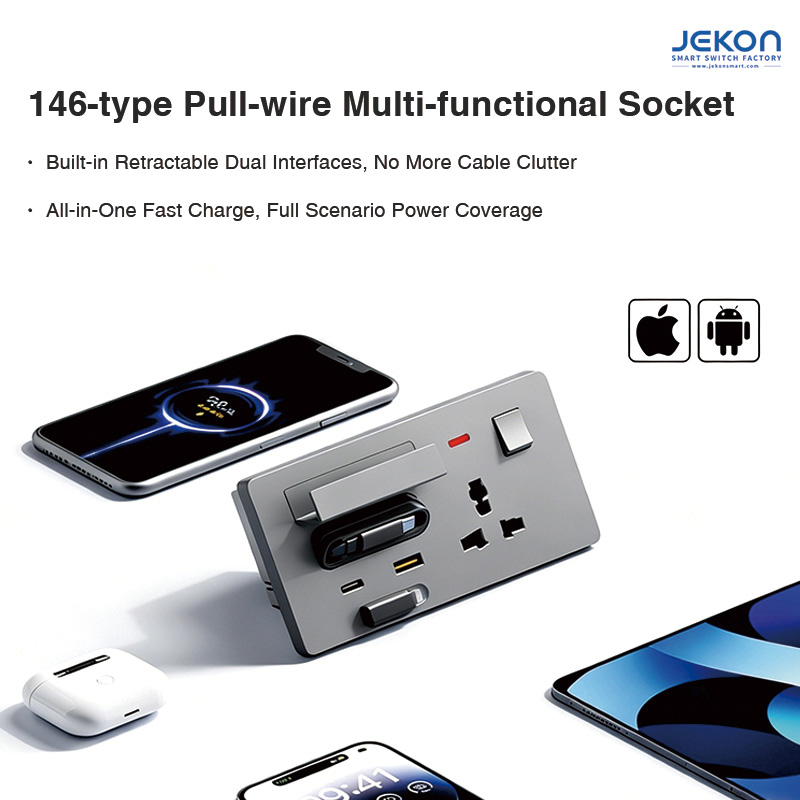

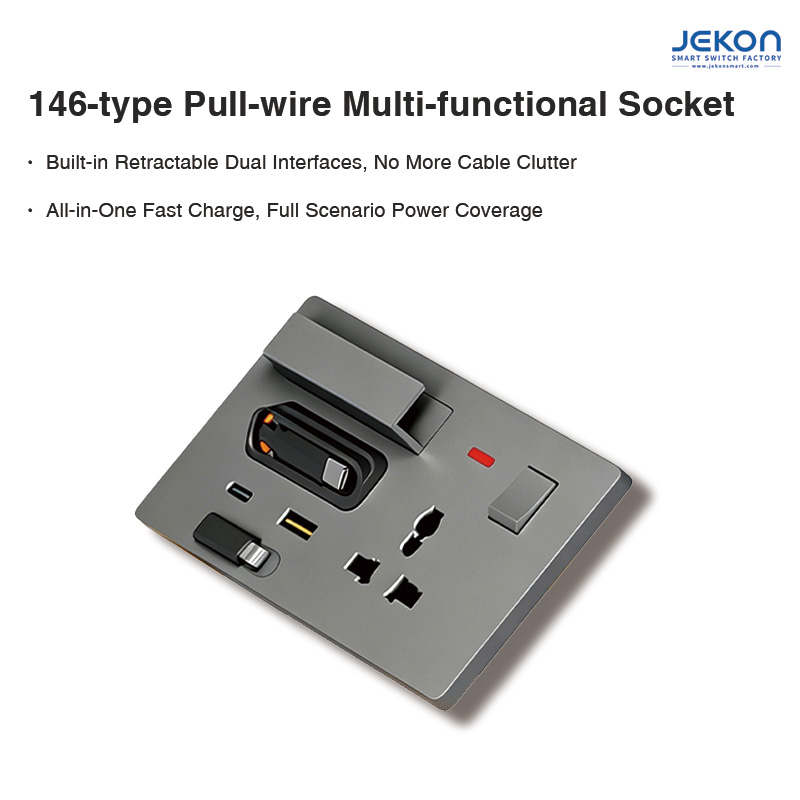

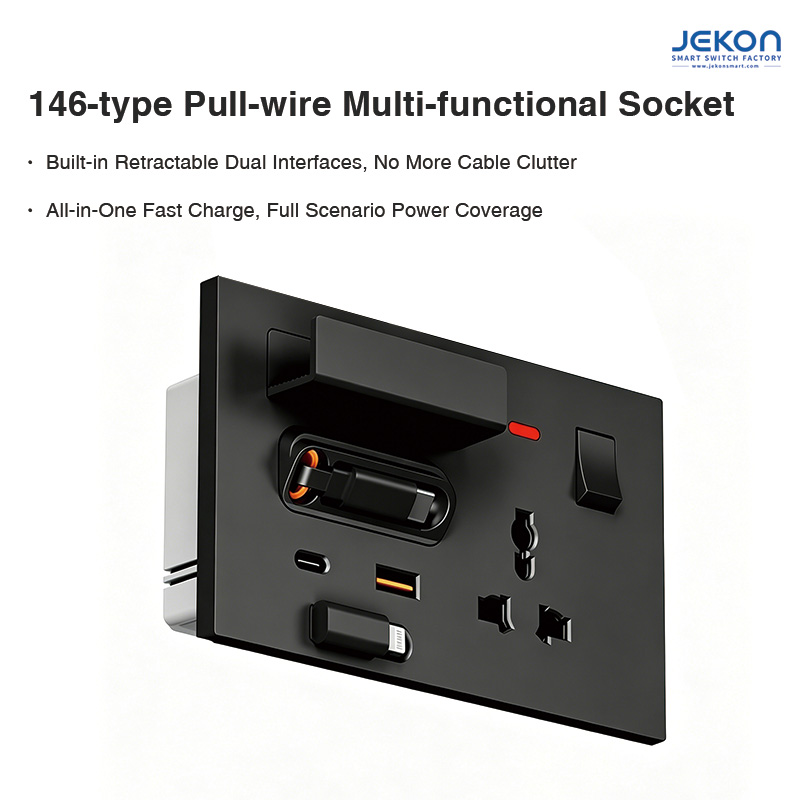

| Product Name | 146-Type Pull-Wire Multi-Functional Retractable Cable Wall Socket |
| Panel Size | Standard 146-type panel |
| Installation | Flush mount, fits standard 146-type back boxes |
| Material | Flame-retardant matte PC housing + high-conductivity phosphor bronze components |
| Available Colors | Space Grey / Elegant White / Obsidian Black / Champagne Gold |
| Rated Input Voltage | AC 100–250V, 50/60Hz |
| Rated Current | 10A (Max. 2500W) |
| Universal AC Outlet | Multi-standard socket, compatible with US/EU/UK plugs, with child safety shutter |
| USB-A Fast Charge Port | Max 12W output, QC 3.0 compatible |
| Type-C Fast Charge Port | PD 20W, supports 5V/3A, 9V/2.22A, 12V/1.67A |
| Built-in Retractable Cables | Dual interface (Lightning + Type-C), 1m length, ≥30,000 retraction cycles |

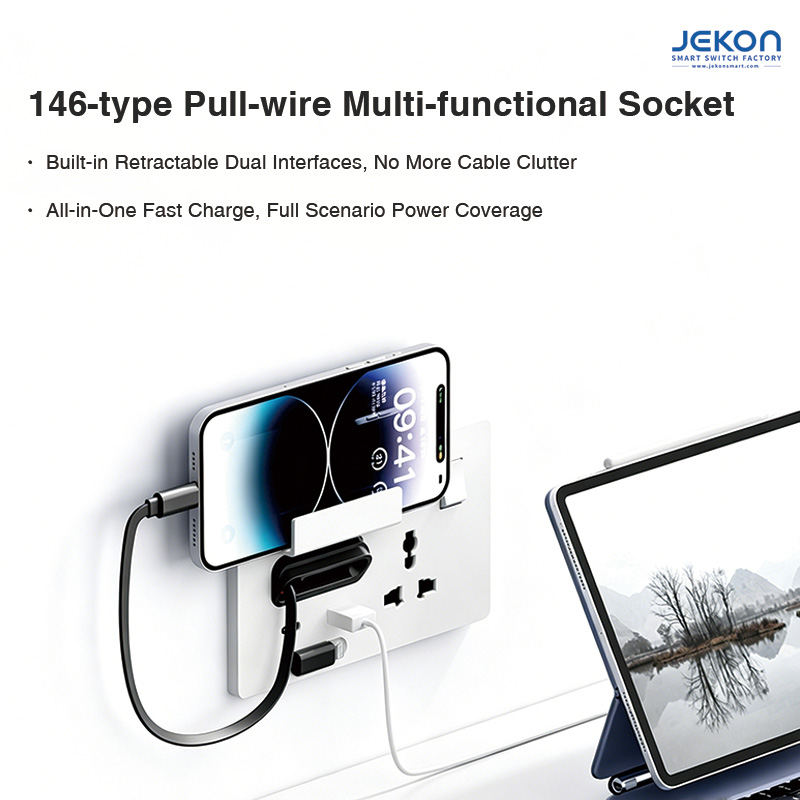

| Integrated Feature | Foldable phone holder, supports hands-free viewing |
| Protection Features | Over-current, over-voltage, short-circuit and over-heat protection |
| Certification | CE, RoHS compliant (customizable based on requirements) |
| Net Weight (per unit) | Approx. 200g |
| Gross Weight (per unit) | Approx. 220g |
| Packaging | Customizable carton packaging |
| MOQ | Negotiable |
