| Item | Specification |
|---|---|

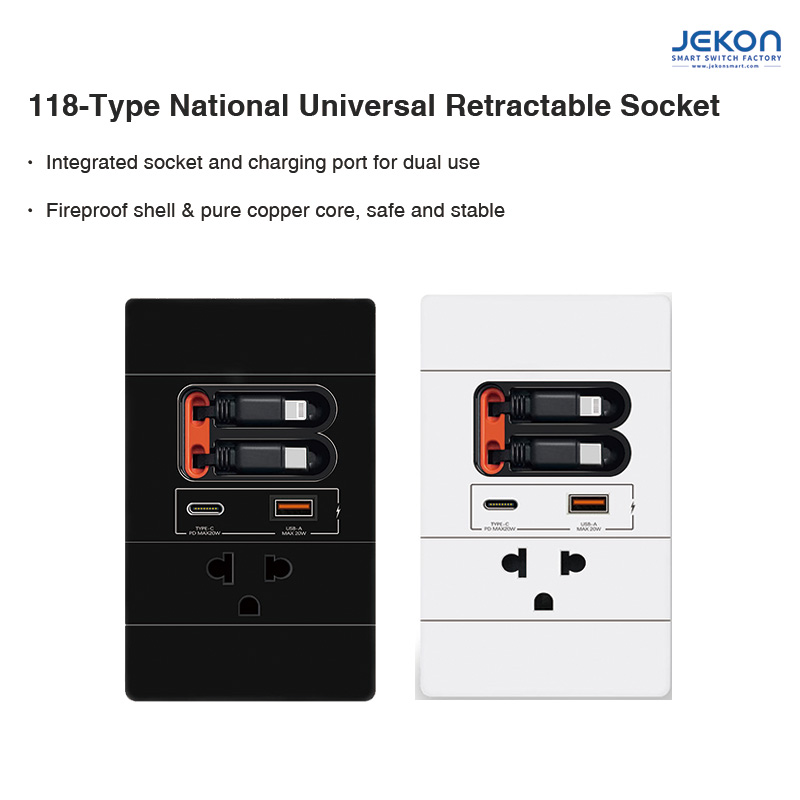

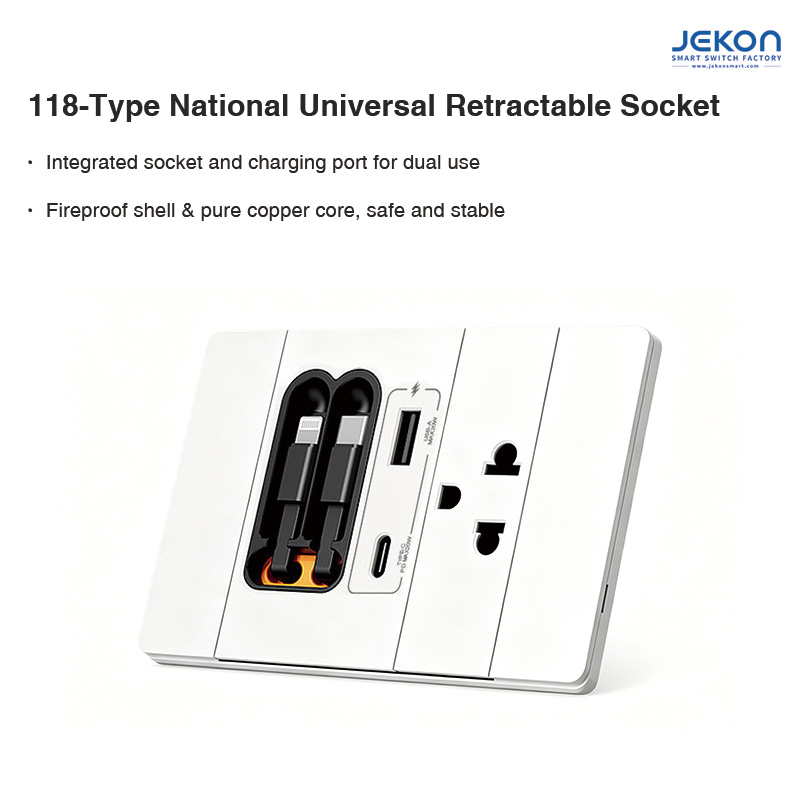

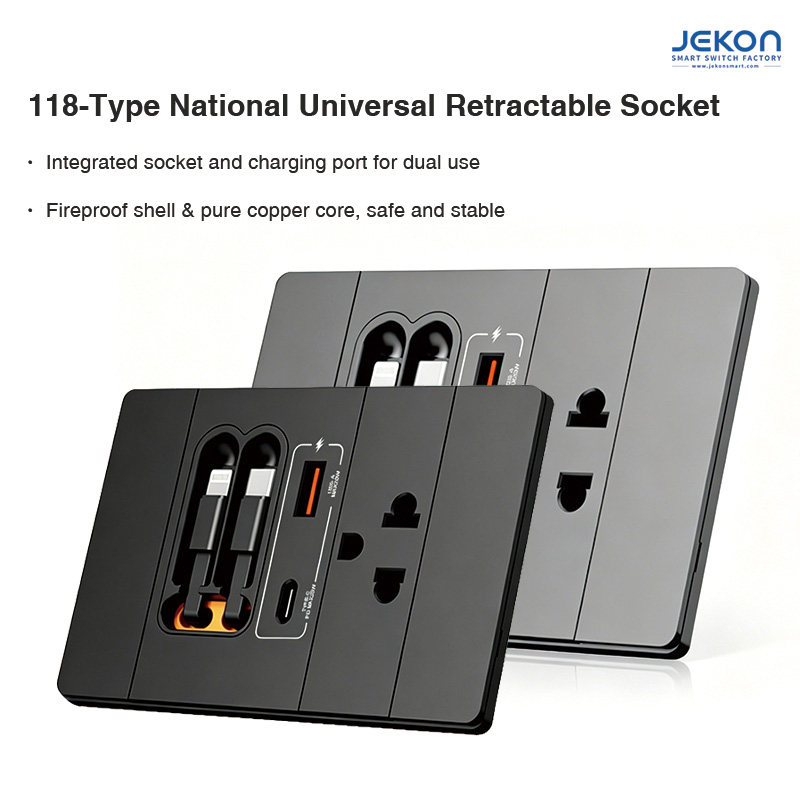

| Product Name | 118-Type Universal Retractable Wall Socket |
| AC Socket Standard | Multi-functional universal socket (compatible with multiple plug types) |

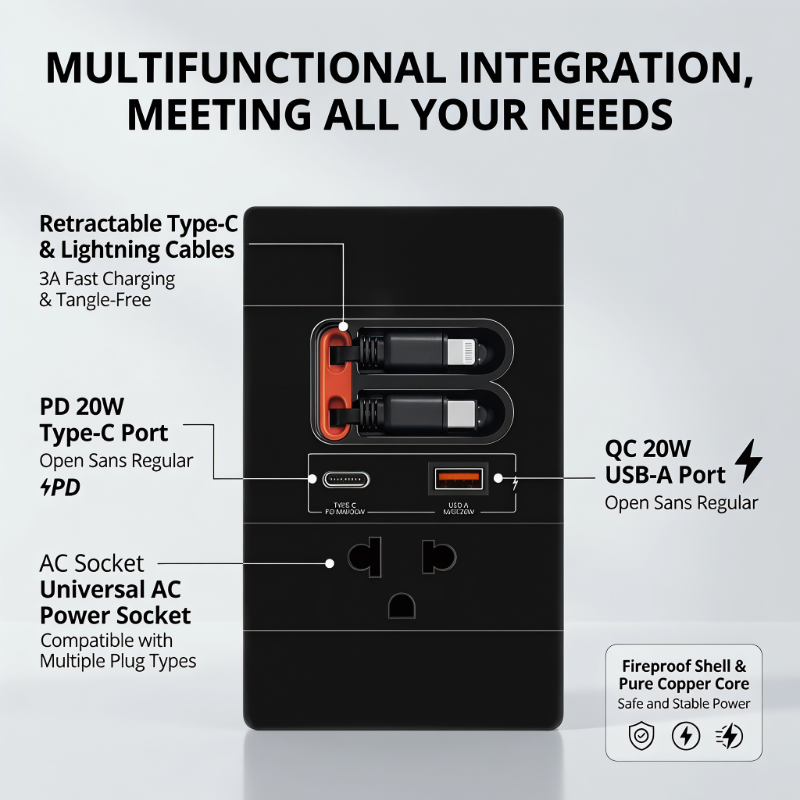

| Built-in Retractable Cables | Lightning (Apple) cable + Type-C cable (3A fast charging, tangle-free) |
| USB Ports | USB-A (QC 20W max) + USB-C (PD 20W max) |
| Rated Voltage | 100-250V AC |
| Rated Current | 10A/16A (AC socket), 3A (USB ports) |
| Max Total Power | 2500W (AC socket) |
| Panel Material | V0 fire-retardant PC plastic |
| Internal Material | Pure copper conductors, overload protection circuit |
| Available Colors | Black / White / Gold / Gray |

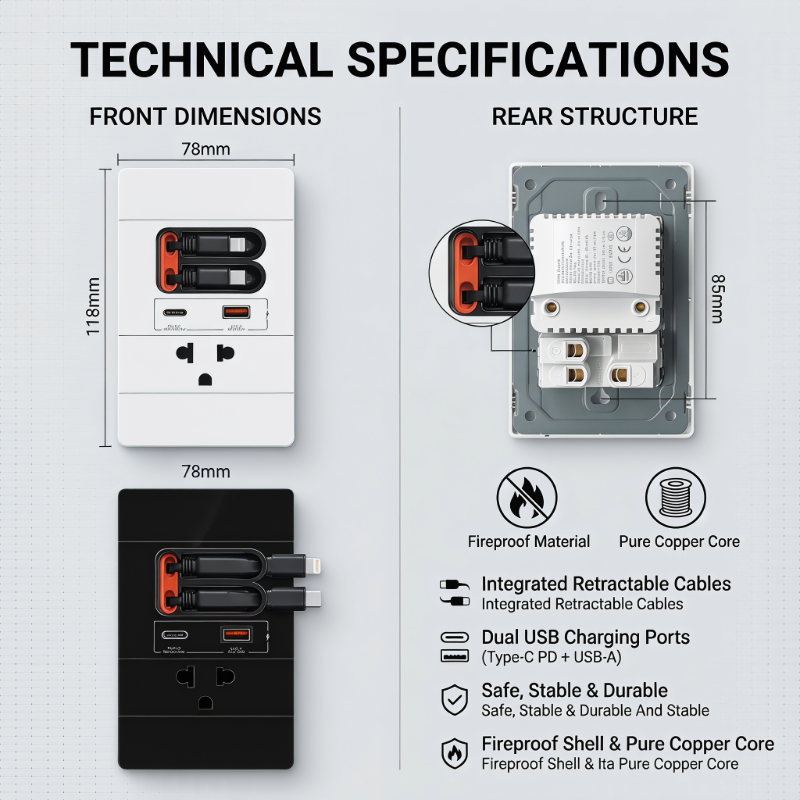

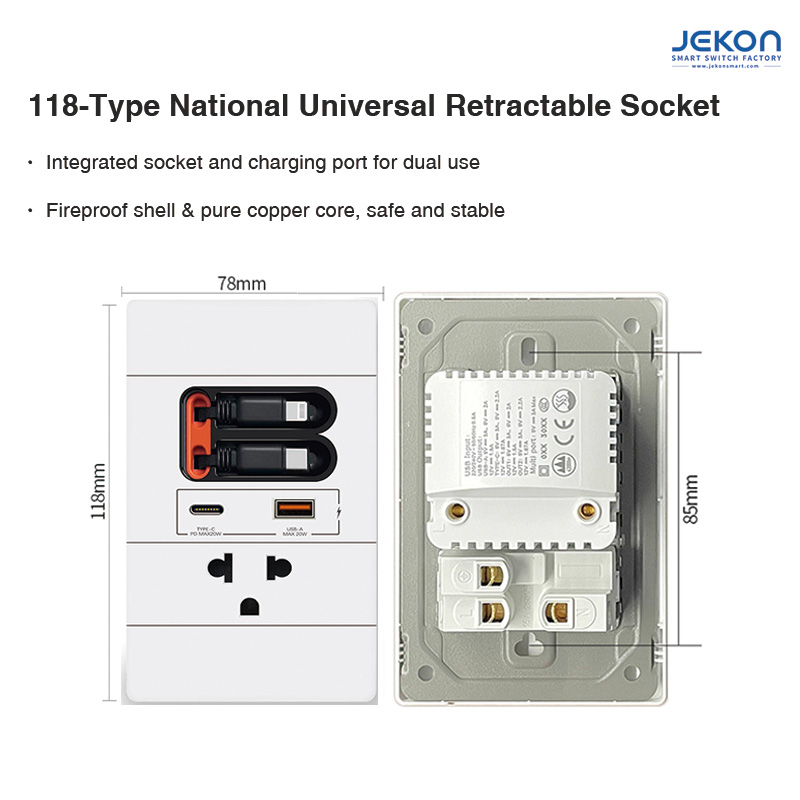

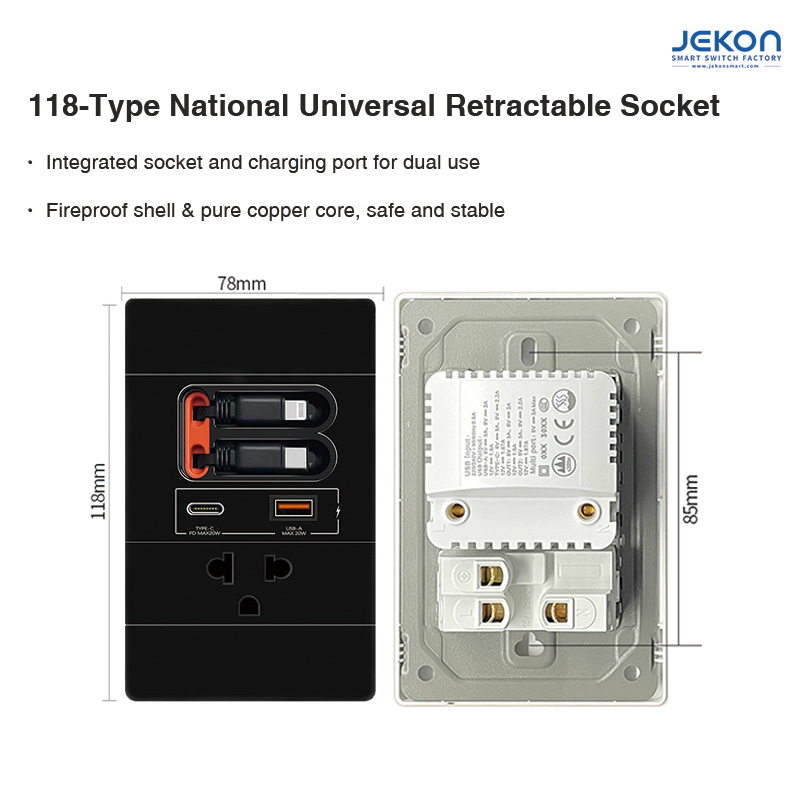

| Dimensions | 118mm × 78mm × 85mm (installation size: 118-type standard wall box) |
| Features | Integrated charging and power, retractable cable design to reduce clutter, multi-device simultaneous charging |
| Certifications | CE, RoHS compliant |
| Installation | Fits standard 118-type wall boxes, flush mount |
| Operating Temperature | -10℃ ~ +45℃ |
| Humidity Resistance | ≤80% RH, non-condensing |
| Net Weight (per unit) | Approx. 180-220g |
| Gross Weight (per unit) | Approx. 220-260g |
| Packaging | Customizable carton packaging |
| MOQ | Negotiable |
